380V 50/60Hz Automatic Face Mask Making Machine

  • 380V 50/60Hz Automatic Face Mask Making Machine
  • 380V 50/60Hz Automatic Face Mask Making Machine
  • 380V 50/60Hz Automatic Face Mask Making Machine
Place of Origin China
Brand Name Vippai
Certification CE
Model Number VPD-400A
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case of shipping
Delivery Time 30 days
Payment Terms T/T L/C
Supply Ability 30sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Multi-Function Packaging Machine Function Filling, Wrapping, Labeling, Sealing, Gluing, Slitting, Folding
Voltage 380V 50/60Hz Dimension(L*W*H) 5860*2860*2230mm
Packaging Material Compound Material Application Commodity, Skin Care Products
High Light

mask making equipment

,

mask making machine
Leave a Message
Product Description





380V 50/60Hz Automatic Face Mask Making Machine 0

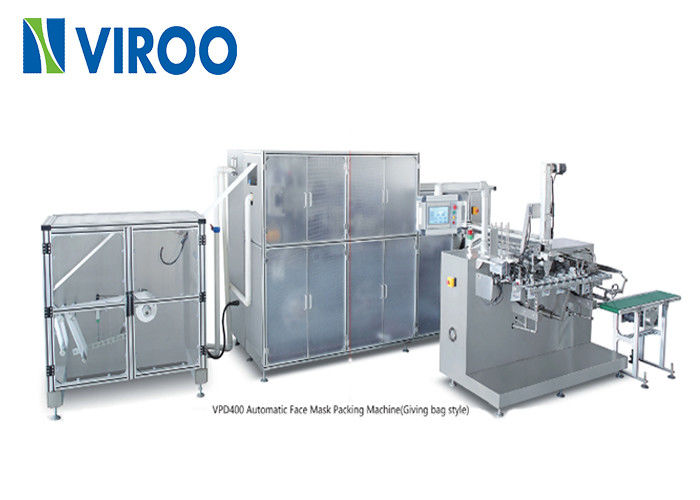

VPD400 Fully automatic facial mask packing machine







Product Application

This is a fully automatic facial mask packing machine. it's designed by our technical person according to the current situation of cosmetic line, which has got many prizes and country invention patents. It can automatically complete from nonwoven rolling cutting mask shape , mask folding, feeding mask into pouch, adding liquid, top sealing, printing,output ect. It fully colored the deficiency of current cosmetic market and it is our best choice of facial mask packing machinery equipment.



Main Features

1. The machine is very compact .

2. It work steadily and continiously.
3. No waste, sensor detector, pouch not open , no filling liquid.
4. The machine is easy to operate.
5. Low operation and maintenance cost.





Main Technical Parameter
Item/model Model:VPD400 Automatic Face Mask Packing Machine(giving bag type)
Packing material Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film.
Mask material Facial sheet :30~80g/m2 Spun Non-woven/pearl film/hot roll non-woven/silk
Carrier sheet: PET/Polyester /polypropylene fiber
Max.ext. dia & Int.diameter max exterior diamater 1000mm, Internal diameter 75mm ;
Die-cut(Mask shape) Customized design (notice: manufacture only 1 layer mask,the grammers per square metre of Non-woven have to above 45 g/m2 )
Unfolded Mask size Length 230~260mm width 230~260mm
Produce speed 40-60bags/min
Product size(Outter) Length:100mm~225mm × Width:100mm-200mm (L*W)
Liquid adding range 3-30ml Essence Fluid ; precision ±1% ;the coefficient of viscosity should under the 20000(cp)
Injection head only one head
Voltage Three phase-four wires 380V 50/60Hz
Installed power AC 35Kw , (machine power About 18 Kw)
Air consumption >800L/min(The pressure 0.6-1.0 Mpas , w-1.0/10 air compression machine is needed)
Machine noise <70 dB(A) (colsed safety door,lnstall the fans into another room)
Machine dimensions 5860mm×2860mm×2230mm(L*W*H)
Machine weight 6000Kg





380V 50/60Hz Automatic Face Mask Making Machine 1380V 50/60Hz Automatic Face Mask Making Machine 2

Detailed Images
380V 50/60Hz Automatic Face Mask Making Machine 3











380V 50/60Hz Automatic Face Mask Making Machine 4

380V 50/60Hz Automatic Face Mask Making Machine 5

Certifications
380V 50/60Hz Automatic Face Mask Making Machine 6
Our Exhibition
380V 50/60Hz Automatic Face Mask Making Machine 7
380V 50/60Hz Automatic Face Mask Making Machine 8
380V 50/60Hz Automatic Face Mask Making Machine 9
380V 50/60Hz Automatic Face Mask Making Machine 10
Packing & Delivery
380V 50/60Hz Automatic Face Mask Making Machine 11
380V 50/60Hz Automatic Face Mask Making Machine 12
380V 50/60Hz Automatic Face Mask Making Machine 13
380V 50/60Hz Automatic Face Mask Making Machine 14

Any questions about the machine, please contact with me.


1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 14 years.

4.what about the payment term ?

Mostly 30%T/T in advanced,the rest need paid before shipping.

5.What information should i let you know if i want to get a quotation?

--Quantity

--What's the bag size?

--What's the unfold wipe size ?

--What's the folding way ?

--how many ml of each bag?

--What's the inner material and outter material ?

6.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
