Product Details:
|
| Product Size: | Length：80mm~200mm × Width：80mm-180mm （L*W） | Mask Material: | 40~80g/m2 Spun Non-woven/pearl Film/hot Roll Non-woven/silk |
|---|---|---|---|
| Packing Speed: | 50-70 Bags/min | Unfolded Mask Size: | Length 200~260mm Width 200~260mm |
| High Light: | non woven mask making machine,mask manufacturing machine |
||

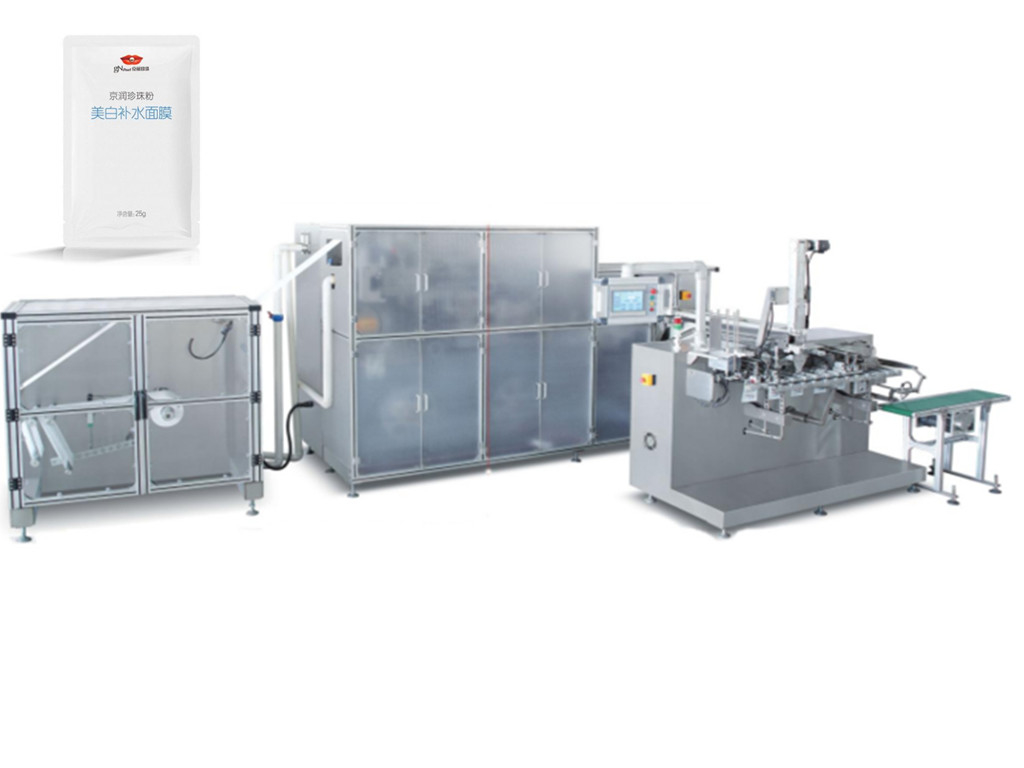

VPD400 Fully automatic facial mask packing machine
Product Application
This is a fully automatic facial mask packing machine. it's designed by our technical person according to the current situation of cosmetic line, which has got many prizes and country invention patents. It can automatically complete from nonwoven rolling cutting mask shape , mask folding, feeding mask into pouch, adding liquid, top sealing, printing,output ect. It fully colored the deficiency of current cosmetic market and it is our best choice of facial mask packing machinery equipment.
Main Features
1. The machine is very compact .
2. It work steadily and continiously.
3. No waste, sensor detector, pouch not open , no filling liquid.
4. The machine is easy to operate.
5. Low operation and maintenance cost.
| Main Technical Parameter | ||
| Item/model | Model:VPD400 Automatic Face Mask Packing Machine(giving bag type) | |
| Packing material | Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film. | |
| Mask material | Facial sheet :30~80g/m2 Spun Non-woven/pearl film/hot roll non-woven/silk | |
| Carrier sheet: PET/Polyester /polypropylene fiber | ||
| Max.ext. dia & Int.diameter | max exterior diamater 1000mm, Internal diameter 75mm ; | |
| Die-cut(Mask shape) | Customized design (notice: manufacture only 1 layer mask,the grammers per square metre of Non-woven have to above 45 g/m2 ) | |
| Unfolded Mask size | Length 230~260mm width 230~260mm | |
| Produce speed | 40-60bags/min | |
| Product size(Outter) | Length:100mm~225mm × Width:100mm-200mm (L*W) | |
| Liquid adding range | 3-30ml Essence Fluid ; precision ±1% ;the coefficient of viscosity should under the 20000(cp) | |
| Injection head | only one head | |
| Voltage | Three phase-four wires 380V 50/60Hz | |
| Installed power | AC 35Kw , (machine power About 18 Kw) | |
| Air consumption | >800L/min(The pressure 0.6-1.0 Mpas , w-1.0/10 air compression machine is needed) | |
| Machine noise | <70 dB(A) (colsed safety door,lnstall the fans into another room) | |
| Machine dimensions | 5860mm×2860mm×2230mm(L*W*H) | |
| Machine weight | 6000Kg | |
