Product Details:
|
| Voltage: | 380V 50/60Hz | Type: | Multi-Function Packaging Machine |
|---|---|---|---|
| Applicable Industry: | Hotels, Manufacturing Plant, Skin Care Products | Dimension: | 7360*2860*2230mm |
| Packing Speed: | 50~60Bags/minute | Folding Way: | 2 Or 3 Or 4 Folds |
| High Light: | mask making equipment,mask making machine |
||

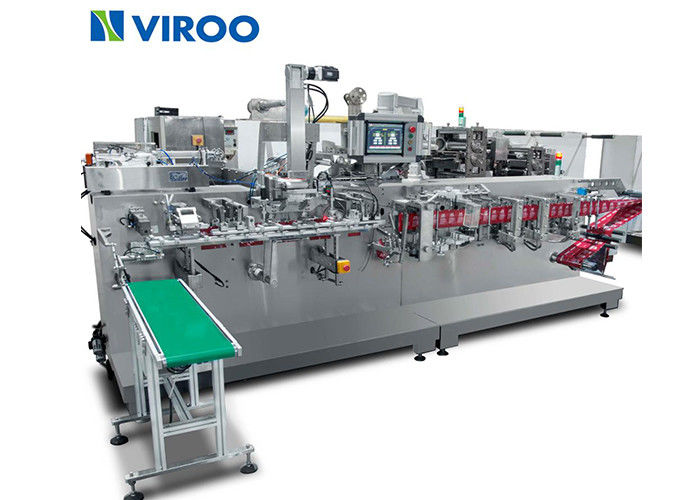

Facial Mask Packing Machine Automatic Full Multi-Function
This machine is an on-line bag making design concept. Fully conform to pharmaceutical GMP manufacturing standards and be flexible and easy to transform. Leading bag-making technology, Plus automatic film cutting ,Fold and pouch ;With the unique modular design, the device has the greatest flexibility and intelligence.
VPD400-B sheet facial mask manufacturing line/machine is suitable for making and packing all kinds of nonwoven material facial masks by loading the mask fiber roll material with speed 50~60 bags/min.one machine one operator.can support different facial mask shapes by changing the Die-cut mould.1 layer or multi-layer mask sheets with same or different materials are available. machine function as follow.

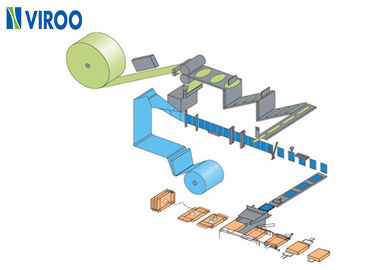

1. Cut the mask from the roll material
2. Fold mask
3. Made the pouch/bag from the film roll material or pre-made bags given directly
4. Put the mask into the bag.
5. Fill bag with mask by liquid
6. Seal bag and emboss the lot number.
7. Leak test
Main Technical Parameter:
| Prefabricated-bag size | Length:100mm~220mm × Width:110mm- 200mm (L*W) | |
| Wrapping materials | Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film. | |
| Bag shape | Square pouch, shaped pouch, zipper pouch(the bag charger is adjustable) | |
| Mask material | Facial sheet | 30~80g/m2 Spun-lace Non-woven/Lyocell/silk/cotton |
| Carrier sheet | PET/Polyester /polypropylene fiber | |
| Die-cut(Mask shape) | Customized design (notice: manufacture only 1 layer facial mask, the gram per square meter of Non-woven have to above 45 g/m2 ) | |
| Max.ext. dia & Int.diameter | max exterior diameter 1000mm, Internal diameter 75mm ; | |
| Automatic material roll splicer | Standard no including (On request) | |
| Unfolded Mask size | Length 230~260mm width 230~260mm | |
| Folding way | On request | |
| Packing speed | 40-60 bags/min | |
| Liquid range | Essence Fluid 0-58ml; precision ±1%;the coefficient of viscosity should under the 20000(cp) | |
| Injection heads | Only 1 head | |
| Noise | <70 dB(A) (closed safety door, and lnstall the fans into another room) | |
| Voltage | 3phases 4 wires 380V 50/60Hz | |
| Installed power | AC 35Kw ,(machine power About 18 Kw) | |
| Machine finishing | Stainless Steel | |
| Control panel | Colour touch-screen (Language On request) | |
| Air consumption | ≥0.8 m³/min(w-1.0/10 air compression machine is needed) | |
| Air supply | 0.6-1.0 MPa | |
| Machine weight | About 6000Kg | |
| Machine size | 5860mm×2860mm×2230mm | |
|
Detection 1: The alarm of materials going to run out (Increase sensor switch of the material roll spun-lace non-woven, when the Diameter is close to run out (the machine will alarm),when it’s run out the machine need to stop running;) Detection 2: Detect the connection of non-woven (detect the connection of the non-woven and excluding this part face mask, note the connect tape should be red color) Optional 1: Stain detection of the Non-woven (detect the grease, stains and something dirty on the face mask, and excluding the dirty face mask in the machine) |
||
