Product Details:
|
| Transport Package: | Wooden Case | HS Code: | 8422309090 |
|---|---|---|---|
| After-sales Service: | Engineers Available To Service Machinery Overseas | Advantage: | The Functions Of Non- Woven Mask Forming, Folding, Bag Given, Feeding Mask, Wetting, Bag Sealing And Output. |
| Suitable: | Suitable For Making And Packing All Kinds Of Tissue Mask And Biocellulose Mask | Mask Material: | 30~80g/m2 Spun Non-woven/pearl Film/hot Roll Non-woven/silk |
| High Light: | make mask machine,automatic facial mask machine |
||

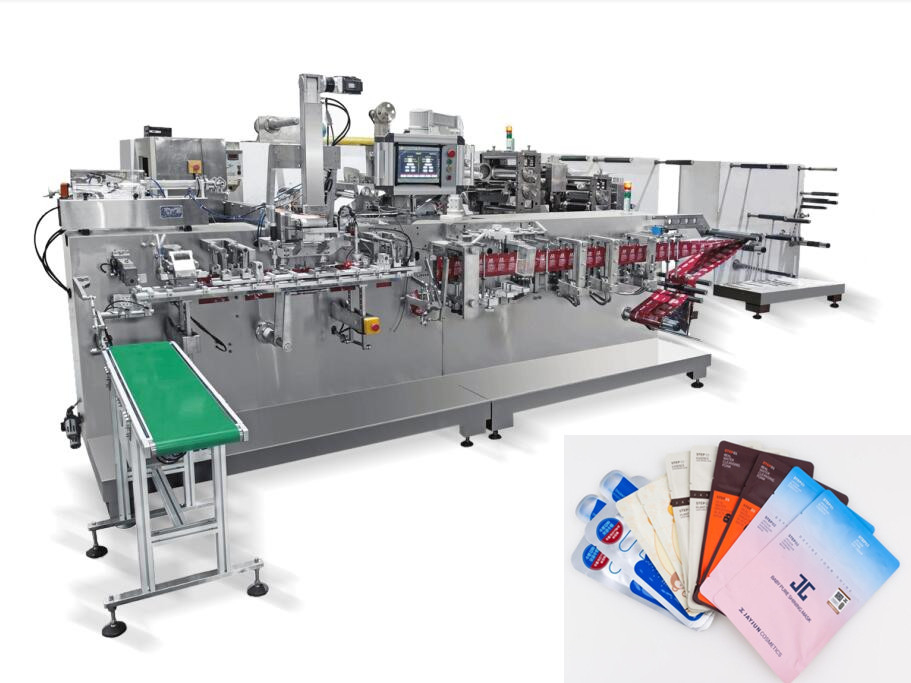

This machine is for automatic face mask packing machine, from material rolls , wrapping film rolls to the finished face mask, the machine is flexible for punch the easy tear mouth, round corner and euro hang. It’s not only for making the square bag shape face mask, Irregular shape bag also can be used on the machine. the machine can be adjusted into giving bag style, only install the bag chargers and change some parts.
Main Technical Parameter:
| Product size | Length:80mm~200mm × Width:80mm-180mm (L*W) |
| Package material | CPP,PE,BOPP CPP film,PE film,BOPP film |
| Mask material | 40~80g/㎡ Spun Non-woven/pearl film/hot roll non-woven/silk |
| Inner diameter and max Outter diameter | Inner diameter 75mm ; max outter diamater 1000mm |
| Unfolded Mask size | Length 230~260mm width 230~260mm |
| Packing speed | 50-65 bags/min |
| Pump and add liquid | Essence Fluid 3-30ml; precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp) |
| Noise | <80 dB(A) |
| Voltage | Three –phase four wire 380V 50/60Hz |
| Supply power | About 9.0Kw |
| Air consumption | ≥0.8m³/min(w-1.0/10 air compression machine is needed) |
| Air supply | 0.6-1.0 MPa |
| Machine weight | 7000Kg |
| Machine size | 7860mm×2860mm×2030mm |
|
Optional 1: The alarm of material running out (Increase sensor switch of the material roll spunlace non-woven,when the Diameter is close to run out (the machine will alarm),when it’s run out the machine need to stop running;) Detection 2: Detect the connect of non-woven (detect the connect of the non-woven and excluding this part face mask,note the connect tape should be red color) Optional 1: Stain detection of the Non-woven (detect the grease ,stains and something dirty on the face mask , and excluding the dirty face mask in the machine) |
|
Notice:the face mask folding way, need to discuss by us or following our folding way.

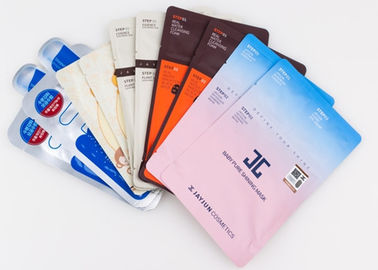

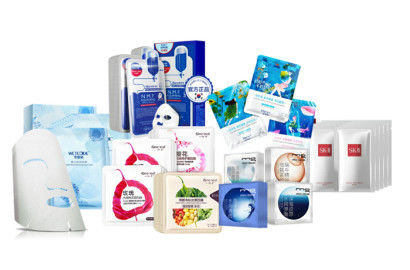

Sample:
1.what's the delivery time?
it's about 30days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
