Non Woven Mask Making Machine High Speed Computer Touch Screen Display

  • Non Woven Mask Making Machine High Speed Computer Touch Screen Display
Place of Origin China
Brand Name Vippai
Certification CE
Model Number VPD-98III
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case of shipping
Delivery Time 30 days
Payment Terms T/T L/C
Supply Ability 30sets/month
Product Details
Equipment PLC ,HMI And Button Liquid Adding Range 3-30ml Essence Fluid
Injection Head Only One Head Production Speed 80~100 Packs/minute
Installed Power AC 35Kw , (machine Power About 18 Kw) Voltage Three Phase-four Wires 380V 50/60Hz
High Light

mask manufacturing machine

,

mask making equipment
Leave a Message
Product Description

High Speed Nonwoven Face Mask Packing Machine Manufacturing with PLC


Product Application

High Speed Facial Face Mask Making and Packing Manufacturing Machine,there are only 6 work position on the machine. Load the stacking bags into hopper,start the machine;

action 1. the sucktion take one pcs pouch from the hopper;

action 2. the machine suck and open the top of the pouch;

action 3. detection, the sensor check the pouch open or not ;

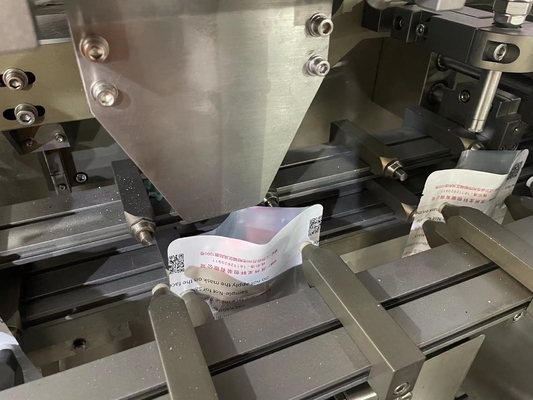

action 4. filling liquid (get the signal if the pouch open);

action 5. exhausting, exhaust the air from bag;

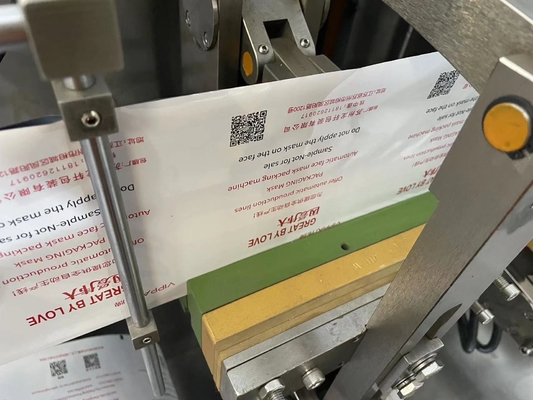

action 6. print the date and code.


Main Features

1. Bag charger: the bag charger is flexible, it can be adjust to fit different shape and size of the pouch, one time should put 3 stacks pouchs into the bag charger


2. Eliminating device: If the mask is cut and fold not well, it will be rejected by this position, such as connecting parts of the nonwoven , the Stained part,and so on.


3. Injecting parts(3 heads): it's Independent of the 3 injecting heads ,it can works with 1-3 different essence.3-30ml Essence Fluid ; precision ±1% ;the coefficient of viscosity should under the 20000(cp)


4. Leaking detection: check if the pouch is sealed well through a press of the conveyor to check the pouch is sealed well or not, the press power can be adjust.



If any interesting,welcome to contact with Ms Niki Yang,+8615700094223(whatsApp) or wechat:+8615044133150



                                                        Main Technical Parameter
Item/model
Model:VPD98-III fully Automatic korean style 1-3 steps Face Mask Making Machine
Packing material
Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film.

Mask material
Facial sheet :30~80g/m2 Spun Non-woven/pearl film/hot roll non-woven/silk
Carrier sheet: PET/Polyester /polypropylene fiber

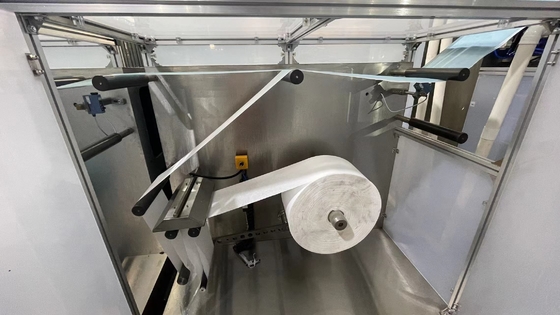

Max.ext. dia & Int.diameter
max exterior diamater 1000mm, Internal diameter 75mm ;
Die-cut(Mask shape)
Customized design (notice: manufacture only 1 layer mask,the grammers per square metre of Non-woven have to above 45 g/m2 )
Unfolded Mask size
Length 230~260mm width 230~260mm
Produce speed
80-100 bags/min

Pre-made bag size
The Length of the big bag>140mm
Bag2: the width(space) >40mm
Bag3: the width(space) >40mm
Liquid adding range
3-30ml Essence Fluid ; precision ±1% ;the coefficient of viscosity should under the 20000(cp)
Injection head
only one head
Voltage
Three phase-four wires 380V 50/60Hz
Installed power
AC 35Kw , (machine power About 18 Kw)
Air consumption
≥1.5m³/min(The pressure 0.6-1.0 Mpas , w-1.0/10 air compression machine is needed)
Machine noise
<70 dB(A) (colsed safety door,lnstall the fans into another room)
Machine dimensions
11400mm×3160mm×2230mm
Machine weight
9000Kg



1.What information should i let you know if i want to get a quotation?
-- Quantity
-- What's the detailed size of face mask?

-- What's the detailed size of pouch,and pouch shape?

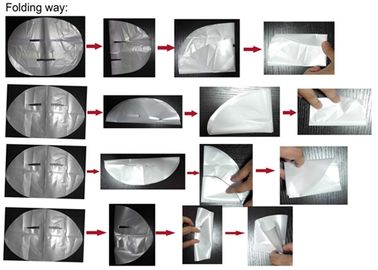

-- What's the folding way of face mask?

-- how many ml of the essence?
-- What's the inner material, how many layers? such as 3layer( PP/spunlace nonwoven/Pearlized BOPP)


2.what's your advantages ?
-- 14 years experience:We have been in making machinery for 14 years.
-- Customers all over the world
-- Certificate: CE certificate
-- Fast reply:Our team will reply you soon.
-- After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
