Product Details:
|
| Packaging Type: | Bags, Film, Pouch | Application: | Skin Care Product |
|---|---|---|---|
| Machine Weight: | 1000 Kg | Speed: | 40-60 Bags/min |
| Bag Size: | L:80-20mm W:100-200mm | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Highlight: | face mask manufacturing machine,automatic facial mask machine |
||
automatic aluminium foil bag irregular shaped facial mask pack machine can filling
Product Application

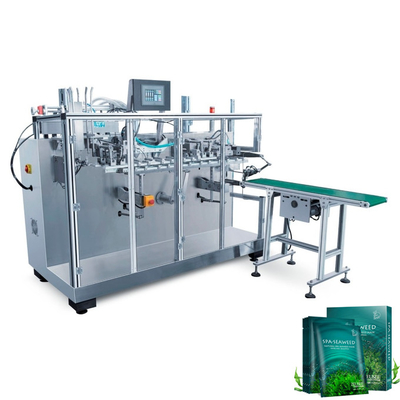

The VPD200 semi automatic mask pack machineis a very compact horizontal type machine ,there are only 6 work position on the machine. Load the stacking bags into hopper,start the machine;action1: the sucktion take one pcs pouch from the hopper; action 2 the machine suck and open the top of the pouch;action 3 detection, the sensor check the pouch open or not ;action4 filling liquid (get the signal if the pouch open); action5 exhausting, exhaust the air from bag; action 6 print the date and code.
Putting the premade bags in the bag box→Robort arm pick the bag one by one→open the bag(the machine will automatic tracking those bags which not opened, these bags can be collected and used again)→Bag top side Sealing→Embossing date/batch(Max 35 characters)→Conveyor belt transport the finished bag.
| Main Technical Parameter | ||
| Item/model | Model:VPD200 Horizontal Type Giving Bag Packing Machine | |
| Packing material | Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film. | |
| Bag Size | L:80-200mm , W:100-200mm (L*W) | |
| Bag shape |
Square bag, rectangular bag and parts of irregular shape bag |
|
| Add liquid range | 3-30ml Essence Fluid ; precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp) | |
| Produce speed | 40-60 bags/min | |
| Power supply | Three-phases four wires 380V 50/60Hz 3.5Kw | |
| Weight | 1000KG | |
| Machine Size | About 2450mm×1080mm×1800mm (L*W*H) | |
| Air pressure | 0.6-1.0Mpa Consumption＞0.4m³/min | |
FAQ
1. What service you will provide when I come to China?
-- When you come to Whenzhou or China,we will provide you with the transportation support,take you to visit our factory and offer purchasing suggestions,help you check the products,for any help you need.We will do our very utmost to offer the support.
2. How about warranty?
-- We could make sure all of our machines with one year's warranty and provide you with free technical support of equipment lifelong.
