Product Details:
|
Packaging Type: | Bags, Film, Pouch | Application: | Skin Care Product |
---|---|---|---|
Type: | Give Bag | Speed: | 40-60 Bags/min |
Function: | Filling ,sealing And Print | After-sales Service: | Engineers Available To Service Machinery Overseas |
Highlight: | make mask machine,automatic facial mask machine |

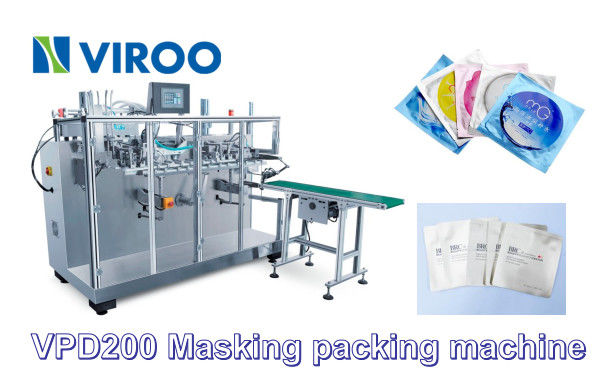

New Give Bag Semi Automatic Mask Pack Machine Make Skin Care Product
Product Application
The VPD200 semi automatic mask pack machineis a very compact horizontal type machine ,there are only 6 work position on the machine. Load the stacking bags into hopper,start the machine;action1: the sucktion take one pcs pouch from the hopper; action 2 the machine suck and open the top of the pouch;action 3 detection, the sensor check the pouch open or not ;action4 filling liquid (get the signal if the pouch open); action5 exhausting, exhaust the air from bag; action 6 print the date and code.
Putting the premade bags in the bag box→Robort arm pick the bag one by one→open the bag(the machine will automatic tracking those bags which not opened, these bags can be collected and used again)→Bag top side Sealing→Embossing date/batch(Max 35 characters)→Conveyor belt transport the finished bag.
Main Technical Parameter | ||
Item/model | Model:VPD200 Horizontal Type Giving Bag Packing Machine | |
Packing material | Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film. | |
Bag Size | L:80-200mm , W:100-200mm (L*W) | |
Bag shape |
Square bag, rectangular bag and parts of irregular shape bag |
|
Add liquid range | 3-30ml Essence Fluid ; precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp) | |
Produce speed | 40-60 bags/min | |
Power supply | Three-phases four wires 380V 50/60Hz 3.5Kw | |
Weight | 1000KG | |
Machine Size | About 2450mm×1080mm×1800mm (L*W*H) | |
Air pressure | 0.6-1.0Mpa Consumption>0.4m³/min |
VPD90 Facial mask floding Machine + VPD200 Automatic facial mask packing machine
