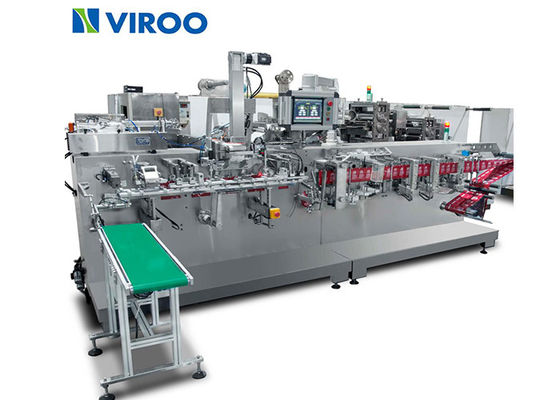

60 Bags / Minute Automatic Face Mask Making Machine

  • 60 Bags / Minute Automatic Face Mask Making Machine
  • 60 Bags / Minute Automatic Face Mask Making Machine
  • 60 Bags / Minute Automatic Face Mask Making Machine
Place of Origin CHINA
Brand Name TRUSTAR
Certification CE
Model Number VPD-400B
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard sea freight packing.
Delivery Time It depends.
Payment Terms T/T
Supply Ability 30-45 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 380V 50/60Hz Type Multi-Function Packaging Machine
Applicable Industry Hotels, Manufacturing Plant, Skin Care Products Dimension 7360*2860*2230mm
Packing Speed 50~60Bags/minute Folding Way 2 Or 3 Or 4 Folds
High Light

mask making equipment

,

mask making machine
Leave a Message
Product Description

Facial Mask Packing Machine Automatic Full Multi-Function





Product Application

This machine is an on-line bag making design concept. Fully conform to pharmaceutical GMP manufacturing standards and be flexible and easy to transform. Leading bag-making technology, Plus automatic film cutting ,Fold and pouch ;With the unique modular design, the device has the greatest flexibility and intelligence.

VPD400-B sheet facial mask manufacturing line/machine is suitable for making and packing all kinds of nonwoven material facial masks by loading the mask fiber roll material with speed 50~60 bags/min.one machine one operator.can support different facial mask shapes by changing the Die-cut mould.1 layer or multi-layer mask sheets with same or different materials are available. machine function as follow.
1. Cut the mask from the roll material
2. Fold mask
3. Made the pouch/bag from the film roll material or pre-made bags given directly
4. Put the mask into the bag.
5. Fill bag with mask by liquid
6. Seal bag and emboss the lot number.
7. Leak test



Main Technical Parameter:



Prefabricated-bag size Length:100mm~220mm × Width:110mm- 200mm (L*W)
Wrapping materials Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film.
Bag shape Square pouch, shaped pouch, zipper pouch(the bag charger is adjustable)
Mask material Facial sheet 30~80g/m2 Spun-lace Non-woven/Lyocell/silk/cotton
Carrier sheet PET/Polyester /polypropylene fiber
Die-cut(Mask shape) Customized design (notice: manufacture only 1 layer facial mask, the gram per square meter of Non-woven have to above 45 g/m2 )
Max.ext. dia & Int.diameter max exterior diameter 1000mm, Internal diameter 75mm ;
Automatic material roll splicer Standard no including (On request)
Unfolded Mask size Length 230~260mm width 230~260mm
Folding way On request
Packing speed 40-60 bags/min
Liquid range Essence Fluid 0-58ml; precision ±1%;the coefficient of viscosity should under the 20000(cp)
Injection heads Only 1 head
Noise <70 dB(A) (closed safety door, and lnstall the fans into another room)
Voltage 3phases 4 wires 380V 50/60Hz
Installed power AC 35Kw ,(machine power About 18 Kw)
Machine finishing Stainless Steel
Control panel Colour touch-screen (Language On request)
Air consumption ≥0.8 m³/min(w-1.0/10 air compression machine is needed)
Air supply 0.6-1.0 MPa
Machine weight About 6000Kg
Machine size 5860mm×2860mm×2230mm

Detection 1: The alarm of materials going to run out (Increase sensor switch of the material roll spun-lace non-woven, when the Diameter is close to run out (the machine will alarm),when it’s run out the machine need to stop running;)

Detection 2: Detect the connection of non-woven (detect the connection of the non-woven and excluding this part face mask, note the connect tape should be red color)

Optional 1: Stain detection of the Non-woven (detect the grease, stains and something dirty on the face mask, and excluding the dirty face mask in the machine)
