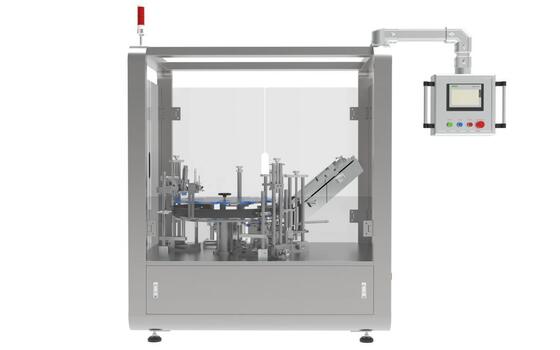

High Speed Rotary Vertical Cartoner Machine for Small Boxes

Name: High Speed Rotary Vertical Cartoner Machine for Small Boxes
Brand: Wenzhou Trustar Machinery Technology Co.,Ltd
SKU: WZTS-50
Price: 13,750.00 USD
Availability: InStock

quality High Speed Rotary Vertical Cartoner Machine for Small Boxes factory

Basic Properties

Place of Origin:CHINA

Brand Name:HIJ

Certification:CE

Model Number:WZTS-50

Trading Properties

Minimum Order Quantity:1

Price:12500USD-15000USD

Standard Packaging:Seaworthy Wooden Cases

Delivery Time:It Depends.

Payment Terms:T/T,Western Union,L/C

Supply Ability:30 Set/month

Specifications

Weight:	550KGS	Voltage:	220V,380V 50HZ
Driven Type:	Electric,Electric And Pneumatic	Automatic Grade:	Automatic,Semi-Automatic
Type:	Vertical Cartoning Machine	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
Packaging Material:	Box	Application:	Medical,Commodity,Food,Chemical,Machinery & Hardware
Condition:	New	Warranty:	1 Year
Highlight	high speed vertical cartoner machine , automatic cartoning machine for small boxes , rotary cartoner machine with warranty

Product Description

High Speed Rotary Vertical Cartoner Machine for Small Boxes

This Small Vertical Rotary Cartoning Machine provides an ideal solution for businesses requiring high precision in a compact footprint. Designed with a rotary indexing table, it optimizes workspace utilization while ensuring stable performance. The vertical loading system makes it perfect for products like vials, cosmetic jars, essential oils, and small electronics. Equipped with a PLC touch screen and high-quality sensors, it supports rapid changeovers and ensures "no product, no carton" efficiency. Whether used for tuck-in or hot-melt sealing, this machine offers a cost-effective path to automating your packaging line with minimal maintenance requirements.

Key Features

Specifically designed to pack small quantities of multi-size boxes
Low cost operation with minimal space requirements
Suitable for various box sizes with quick mold change capabilities
Constructed with 304 stainless steel casing
Advanced PLC Control System with Colorful Touch Screen Control Panel for easy parameter adjustment

Applications

Ideal for pharmaceutical, food, cosmetics, and auto parts industries. Capable of packing blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and various other products into cartons.

Technical Parameters

Model	WZTS-50
Packing Speed	5-25 Cartons/min
Carton Size Range	H(60-195)mm × L(25-80)mm × W(25-80)mm Spray-glued paper box: H(60-195)mm × L(25-50)mm × W(25-50)mm
Carton Gram Requirements	250-350g/m³
Motor Power	0.3-0.5KW
Power Supply	Single phase 220V 50Hz
Machine Noise	≤80dB
Air Pressure	0.7-0.8 Mpa
Dimension	1100 × 1550 × 1900 mm
Weight	550Kg
