Automatic Cartoner Paper Folding Box Automatic Cartoning Machine for Cosmetic Tubes Bottles Jars

Place of Origin: China
Brand Name: TRUSTAR/HIJ
Certification: CE
Model Number: WZTS-130
Product Details
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
WZTS-130
Minimum Order Quantity:
1 SET
Price:
Negotiable
Standard Packaging:
Seaworthy wooden cases
Delivery Time:
It depends.
Payment Terms:
T/T
Supply Ability:
It depends.
Specifications
Features:
Automatic Carton Forming, Opening, Filling, Sealing, And Batch Number Printing
Application:
Food, Beverage, Commodity, Medical, Chemical,
Packaging Material:
Paper
Driven Type:
Electric
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Machine Weight:
1400kg
Power Supply:
220V/380V, 50Hz/60Hz
Packaging Detail:
Normal Export Wooden Case
Working Noise:
<75dB
Orgin:
Zhejiang,China
Function:
High Efficiency
Output:
Max.80 Boxes/min
Automatic Grade:
Automatic
Highlight:

automatic cartoning machine for cosmetic tubes

,

paper folding box cartoner

,

automatic cartoner for bottles jars

Product Description
Automatic Cartoner Paper Folding Box Machine
Horizontal automatic cartoning machine designed for cosmetic tubes, bottles, jars, and pharmaceutical blister packaging with high-efficiency operation.
Product Specifications
Attribute Value
Application Food, Beverage, Commodity, Medical, Chemical
Packaging Material Paper
Driven Type Electric
Applicable Industries Manufacturing Plant, Food & Beverage Factory
Machine Weight 1400kg
Power Supply 220V/380V, 50Hz/60Hz
Output Max. 80 boxes/min
Automatic Grade Automatic
Machine Overview

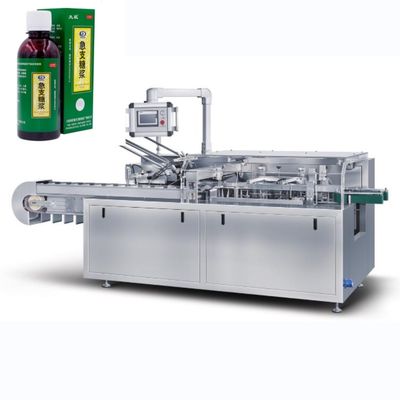

Automatic cartoning machine in operation
This horizontal automatic cartoning machine integrates electrical, pneumatic, and mechanical systems for exceptional production efficiency and stability during high-speed operation.
Key Applications
Ideal for pharmaceutical, food, cosmetics, and auto parts industries. Efficiently packages blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and other products into cartons.
Advanced Features
  • PLC control system with international brand components
  • User-friendly HMI touch screen interface
  • Automatic overload protection and fault detection
  • Quality control with automatic rejection of incomplete cartons
  • Real-time error display and production counting
  • Batch number printing capability
  • Mechanical or hot melt glue sealing options
Technical Parameters
Parameter Specification
Cartoning Speed 65 cartons/min (synchronized with tube filling machine)
Carton Requirements 250-350g/㎡ (varies by carton size)
Dimension Range (L*W*H) (100-185)mm * (30-70)mm * (25-45)mm
Leaflet Requirements 60-70 g/㎡
Unfolded Size Range (L*W) (80-250)mm * (90-170)mm
Folding Range 1-4 folds
Compressed Air ≥0.6mpa working pressure, 120-160L/min consumption
Power Supply 380V 50HZ
Main Motor Power 1.5kw
Machine Dimensions (L*W*H) 3100mm * 1100mm * 1550mm
Net Weight Approx. 1400kg
Machine diagram showing components Machine in operation
Detailed Machine Photos

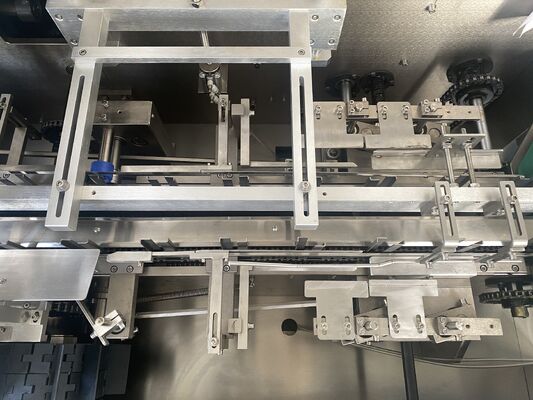

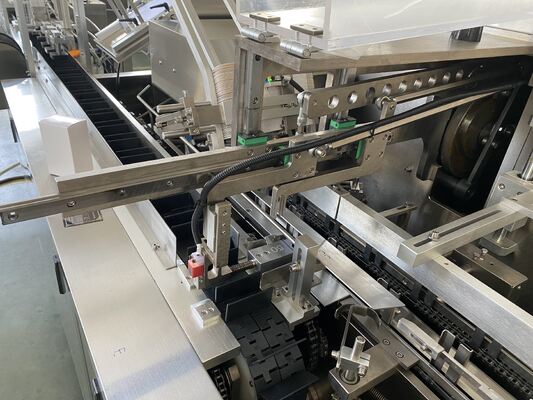

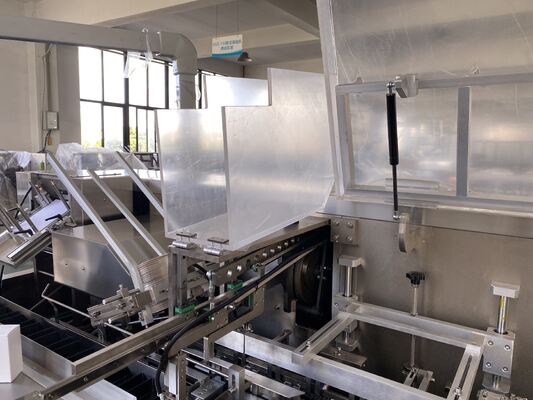

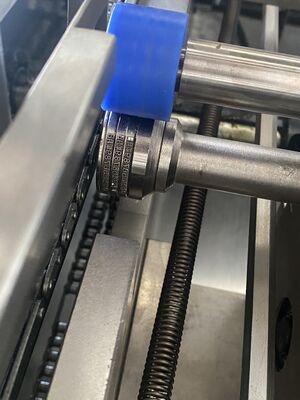

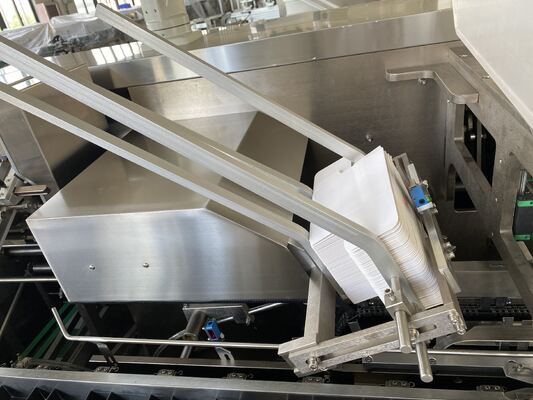

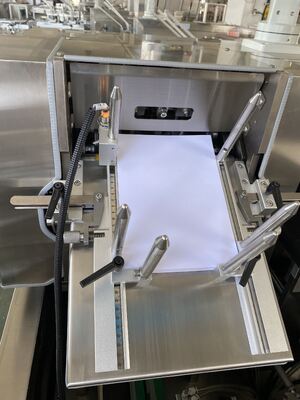

Machine detail view showing internal components Machine detail view showing control panel Machine detail view showing carton feeding mechanism Machine detail view showing sealing station Machine detail view showing overall assembly
Frequently Asked Questions
What's the delivery time?
Approximately 30 working days.
How many containers are required for this machine?
We recommend shipping by LCL (Less than Container Load).
Are you a manufacturer?
Yes, we have specialized in packaging machinery manufacturing for over 17 years.
What are your payment terms?
Standard terms are 40% T/T deposit with balance paid before shipping.
What are your advantages?
  • 17 years of machinery manufacturing experience
  • Global customer base
  • CE certified products
  • Responsive customer service
  • Comprehensive after-sales support and spare parts service
