Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine

Place of Origin: China
Brand Name: TRUSTAR/HIJ
Certification: CE
Model Number: TF-120
Product Details
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
TF-120
Minimum Order Quantity:
1 SET
Price:
Negotiable
Standard Packaging:
Seaworthy wooden cases
Delivery Time:
It depends. Usually it takes about 45 working days.
Payment Terms:
T/T
Supply Ability:
10 set/month
Specifications
Name:
Cosmetic Cream Tube Filling And Sealing Machine
Mold:
TF-120
Case Body Material:
304 Stainless Steel
Weight:
1400KG
Power Supply:
220V/50Hz
Main Motor:
2.2KW
Filling Range:
3-250ml
Operation Speed:
80-120/min/max
Suitable Tube Length:
50-210mm
Suitable Tube Diameter:
13-50mm
Machine size:
2350×1300×2400mm
Advantage:
Easy To Operate
Power Consumption:
1.5kw
Automatic Grade:
Automatic
Control System:
PLC
Hs Code:
8422309090
Operation System:
Touch Screen
Air Pressure:
0.6-0.8Mpa
Operation:
Touch Screen
Packing Speed:
40-50pcs/min
Filling Material:
Lotion, Cream, Toothpaste, Sun Cream
Machine Power:
Three Phase 380V 30kw
Machine Function:
Tube Filling And Sealing
Highlight:

grease tube filling sealing machine

,

pet nutrition cream tube filler

,

soft tube filling machine with warranty

Product Description

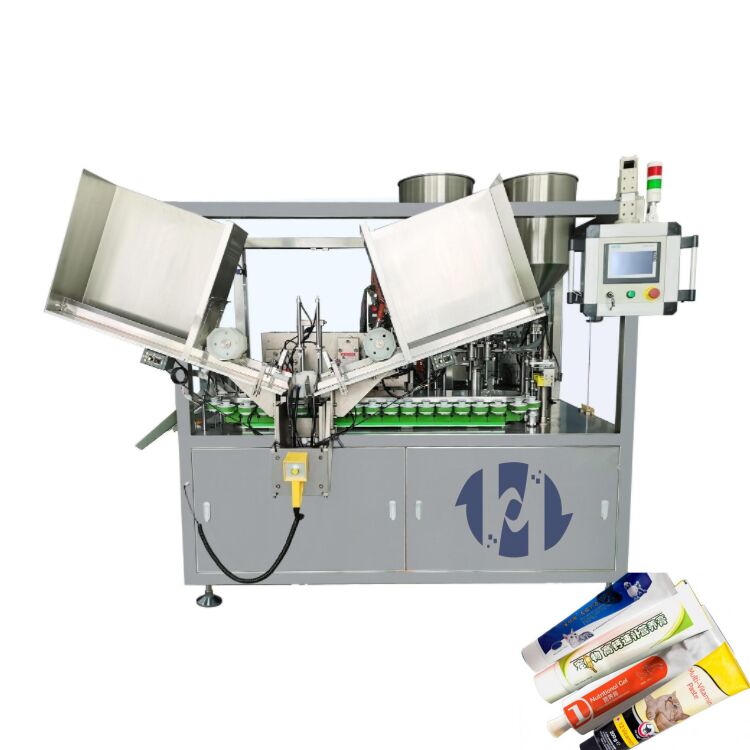

Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine



Description
TF-120 Automatic plastic/lami tube filling and sealing machine is a new filling equipment which is independently developed and designed and manufactured by our company, based on foreign advanced filling and sealing machine type and combined with the domestic actual circumstances of plastic/lami tube.The machine type is wholly closed in stainless steel, suitable to filling and sealing of various specifications plastic/lami tube, max speed reaches120 tubes per minute, actual normal speed reaches 80 to 120 tubes per minute, variable speed via frequency converter. Filling precision is equal to or less than ±1%. The sealing manner for plastic/lami tubes is hot air sealing.



Technical Parameter
  • Machine case body

  Case Body Material 304 stainless steel


Opening Mode of Safety Guard

 Handle Door


Safety Guard Material

 Organic Glass


Frame Below Platform

 Stainless Steel


Case Body Shape

 Square-shape
  • Power, Main Motor etc.

  Power Supply 50Hz/380V 3P
  Main Motor 2.2KW
  Hot Air Generator 3KW*2
  Jacket barrel heating power 2 KW*2 Optional
  Jacket barrel blending power 0.18 KW*2 Optional
  • Production Capacity

  Operation Speed 80-120/min/max
  Filling Range 3-250ml
  Suitable Tube Length 50-210mm
  Suitable Tube Diameter 13-50mm



Detailed photos





Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine

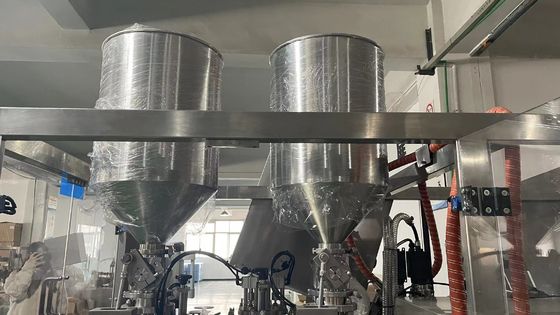

Double material barrel



Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine

Product our plate



Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine

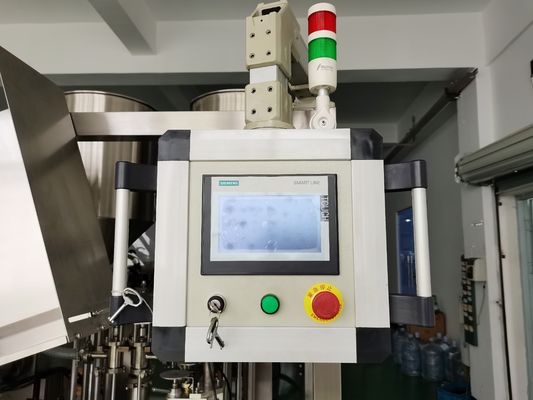

Touch screen



Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine

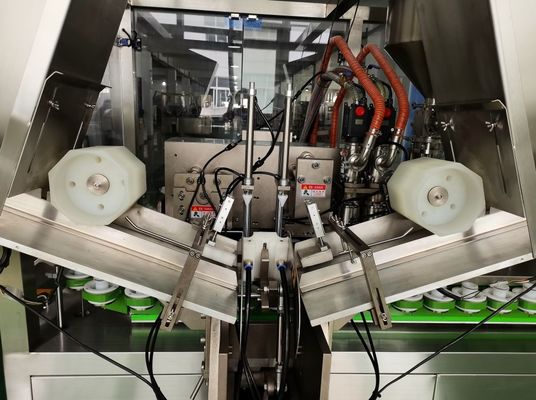

Double Filling heads



Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine

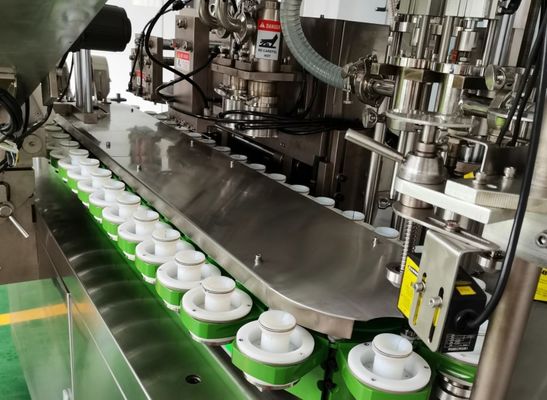

Working stations



Sample diaplay



Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine





Certificate


Tube Filing Machine Grease Pet Nultrition Cream Tube Filling and Sealing Machine



FAQ

1.what's the delivery time?
It's usually about 30 days

2.how many container request for this machine
Suggest ship by LCL.

3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
