Automatic Body Lotion Toothpaste Soft Cosmetic Cream Tube Filling Sealing Machine
Basic Properties
Trading Properties
| Air Pressure: | 0.6-0.8Mpa | Frequency: | 50HZ |
|---|---|---|---|
| Filling Accuracy: | ±1% | Filling Speed: | 50-70pcs/min |
| Tube Length: | 50-240mm | Tube Diameter: | 10-50mm |
| Power: | 220V | Control System: | PLC |
| Highlight | Tube Filling Sealing Machine for Pharmaceutical,50HZ Soft Tube Filling Sealing Machine,240mm Soft Tube Filler Sealing Machine |
||
Product Description:
The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, food, cosmetic,etc.Features:
The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high-efficiency heater and highly stable flow meter form the hot air heating system. It has such features as firm sealing, high speed,no damage to the surface at the sealing place, beautiful and neat sealing shape. The machine can be equipped with filling heads of different specifications to meet the filling requirements of different viscosity. The organic glass dust cover is also provided.
Technical Parameters:
| 1 | Hose material | Metal tuve |
| 2 | Filling volume | 5-250ml |
| 3 | Filling accuracy | ≤±1% |
| 4 | Tube length | 50-210mm |
| 5 | Tube diameter | Φ13- Φ35 |
| 6 | Operating speed | 50-70/min |
| 7 | Working pressure | 0.55-0.65 MPa |
| 8 | Compressed Air Consumption | Over 600L/min |
| 9 | Motor Power | 1.5KW |
| 10 | Overall dimension | 1500*1200*2000mm |
| 11 | Machine weight | 1200Kg |
Detailed photos:

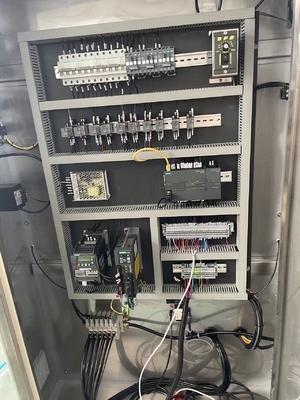

Mold Touch screen Electrical Cabinet

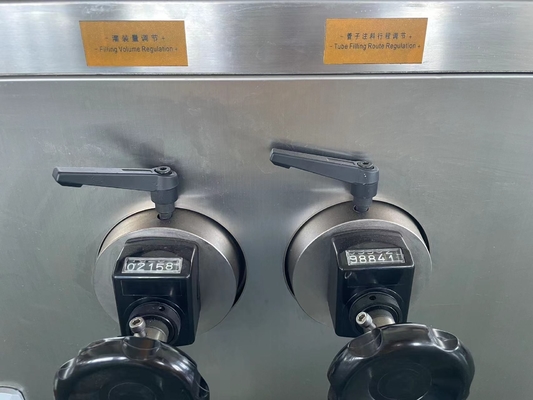

Turntable Hand wheel Barrel
Water chiller Heating box Pneumatic plunger pump
Applications:
Packing&Shipping:
After Sales Service:
FAQ:
it's about 30 working days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17years.
4.what about the payment term ?
Mostly 34%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , ser
A5: The minimum order quantity for the Soft Tube Filling Sealing Machine is 1.
