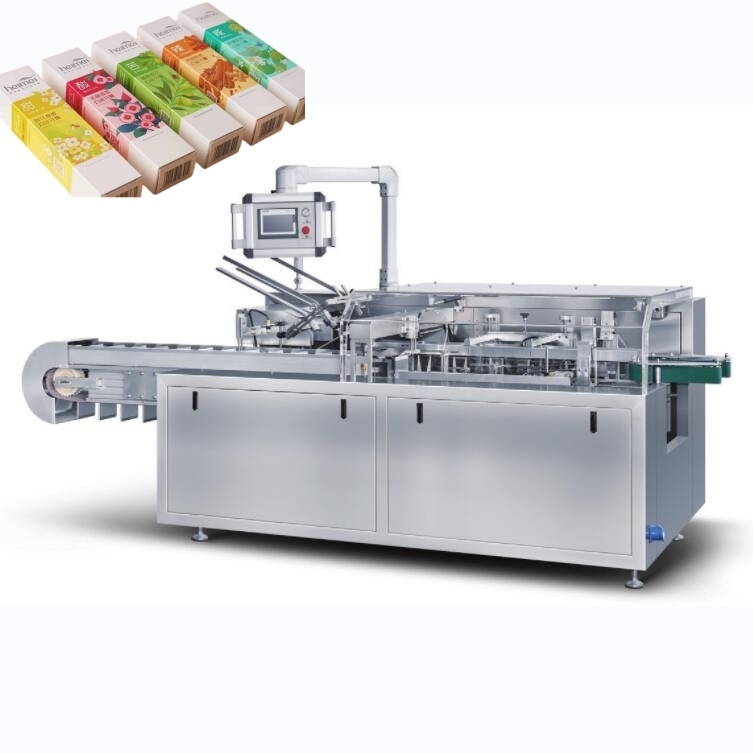

Automatic Food Cookie Snack Box Cartoning Machine Box Packing Machine
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
WZTS-130
Product Details
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
WZTS-130
Minimum Order Quantity:
1 SET
Price:
Negotiable
Standard Packaging:
Seaworthy wooden cases
Delivery Time:
It depends.
Payment Terms:
T/T
Supply Ability:
It depends.
Specifications
Features:
Automatic Carton Forming, Opening, Filling, Sealing, And Batch Number Printing
Application:
Food, Beverage, Commodity, Medical, Chemical,
Packaging Material:
Paper
Driven Type:
Electric
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Machine Weight:
1400kg
Power Supply:
220V/380V, 50Hz/60Hz
Packaging Detail:
Normal Export Wooden Case
Working Noise:
<75dB
Orgin:
Zhejiang,China
Function:
High Efficiency
Output:
Max.80 Boxes/min
Automatic Grade:
Automatic
Highlight:
automatic cookie cartoning machine
,snack box packing machine
,food cartoning machine with warranty
Product Description
Pharmaceutical Blister Cartoning Machine Automatic Carton Packing Machine
Product Overview
This automatic cartoning machine is a horizontal type box packing machine developed through extensive research of domestic and international leading technologies. Combining electrical, pneumatic, and mechanical systems, this high-tech equipment delivers superior production performance and operational efficiency for rapid cartoning applications.
Key Features
- PLC control system with international brand components

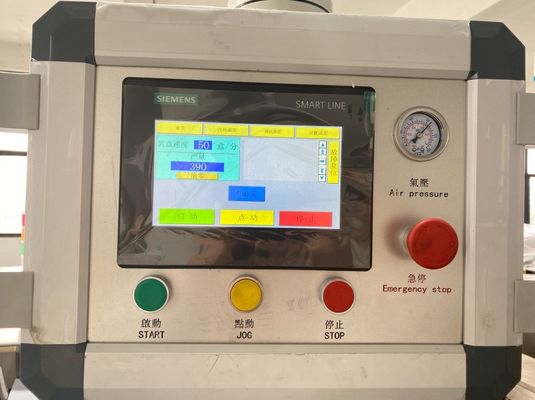

- User-friendly HMI touch screen interface
- Automatic overload protection system
- Quality control with automatic rejection of empty cartons
- Error display, alarm system, and product counting
- Stable performance with simple operation
- Automatic batch number printing
- Mechanical or hot melt glue sealing options
Applications
Ideal for pharmaceutical, food, cosmetics, and auto parts industries. Capable of packing blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and various other products into cartons.
Technical Parameters
| Cartoning Speed | 65 cartons/min (dependent on tube filling machine speed) |
| Carton Quality Requirements | 250-350g/㎡ (varies by carton size) |
| Carton Dimension Range (L×W×H) | (100-185)mm × (30-70)mm × (25-45)mm |
| Leaflet Quality Requirements | 60-70 g/㎡ |
| Leaflet Size Range (Unfolded L×W) | (80-250)mm × (90-170)mm |
| Folding Range | 1-4 folds |
| Compressed Air Requirements | ≥0.6mpa, 120-160L/min consumption |
| Power Supply | 380V 50HZ |
| Main Motor Power | 1.5kw |
| Machine Dimensions (L×W×H) | 3100mm × 1100mm × 1550mm |
| Machine Net Weight | Approximately 1400kg |

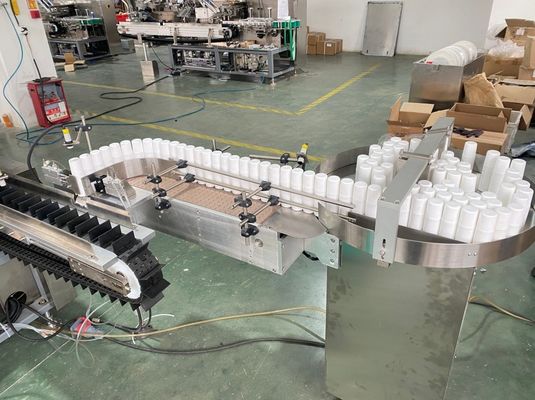

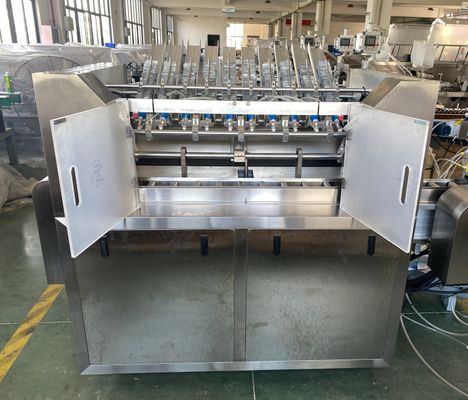

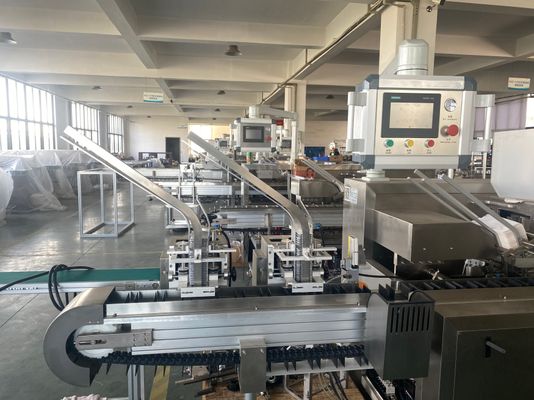

Detailed Photos
Company profile
Certificate
FAQ:
What's the delivery time?
Approximately 30 working days
How many containers are required for this machine?
Suggested shipment by LCL (Less than Container Load)
Are you a manufacturer?
Yes, we have specialized in packaging machinery manufacturing for over 17 years
What are your payment terms?
Standard terms: 40% T/T in advance, balance paid before shipping
Our Advantages
- 17 years of specialized machinery manufacturing experience
- Global customer base with international shipping experience
- CE certified equipment meeting international standards
- Responsive customer service team
- Comprehensive after-sales support and spare parts service
