PLC Soft Tube Filling Sealing Machine 30-50pc/min for Dairy Products
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
TF-60
Product Details
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
TF-60
Minimum Order Quantity:
1 SET
Price:
Negotiable
Standard Packaging:
Seaworthy wooden cases
Delivery Time:
It depends. Usually it takes about 45 working days.
Payment Terms:
T/T
Supply Ability:
10 set/month
Specifications
Machinery Capacity:
30-50pc/min
Hs Code:
8422309090
Suitable Package:
Plastic Tubes
Air Consumption:
0.6m³/min
Air Pressure:
0.6-0.8Mpa
Tube Length:
50-210mm
Filling Range:
5-250ml
Condition:
New
Control System:
PLC
Case Body Material:
304 Stainless Steel
Frequency:
50HZ
Highlight:
PLC soft tube filling machine
,dairy tube sealing machine
,30-50pc/min tube filler
Product Description
High Speed Dairy Products Lotion Soft Alu Tube Filling and Sealing Auto Trimming Machine
Product Specifications
| Attribute | Value |
|---|---|
| Machinery Capacity | 30-50pc/min |
| Hs Code | 8422309090 |
| Suitable Package | Plastic tubes |
| Air Consumption | 0.6m³/min |
| Air Pressure | 0.6-0.8Mpa |
| Tube Length | 50-210mm |
| Filling Range | 5-250ml |
| Condition | New |
| Control System | PLC |
| Case Body Material | 304 stainless steel |
| Frequency | 50HZ |
Product Overview
This machine is a high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement. It adopts with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for alu tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries.
Key Features
- Automatic Tube Loading and Feeding
- Automatic Print Registration
- Tube orientation checking
- Tube Automatic Filling with Anti-drop
- LEISTER inner heating and external cooling
- Tube Sealing & Code embossed
- Automatic discharge to next step
- HMI CONTROL system
- WATER COOLING CHILLER
- AUTOMATIC PRODUCT FEEDING SYSTEM WITH LEVEL CONTROL
Technical Parameters
| No. | Parameter | Value |
|---|---|---|
| 1 | Product capacity | 30-50PC/MIN |
| 2 | Filling volume | 5-250ml |
| 3 | Filling accuracy | ≤±1% |
| 4 | Tube length | 50-210mm |
| 5 | Tube diameter | Φ10- Φ50mm |
| 6 | Tube material | Plastic tube, Compound tube |
| 7 | Working pressure | 0.5-0.6MPa |
| 8 | Compressed Air Consumption | 1.1m³/min |
| 9 | Motor Power | 1.1KW |
| 10 | Overall dimension | 1950*1000*1800mm |
| 11 | Machine weight | 850Kg |

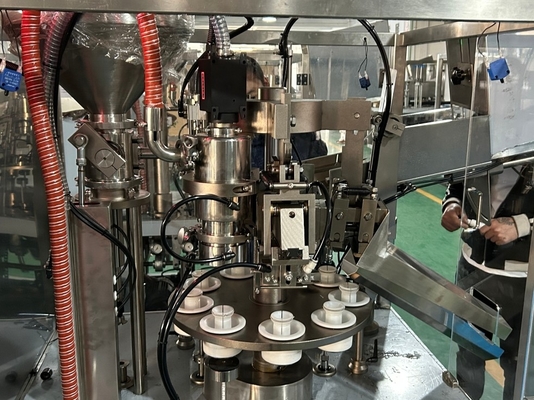

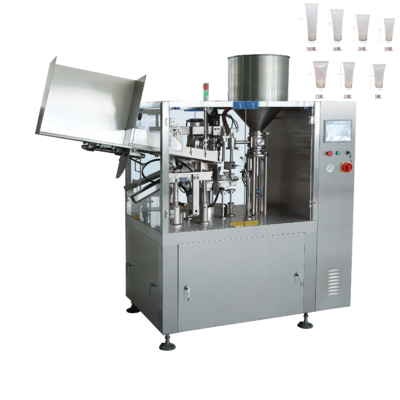

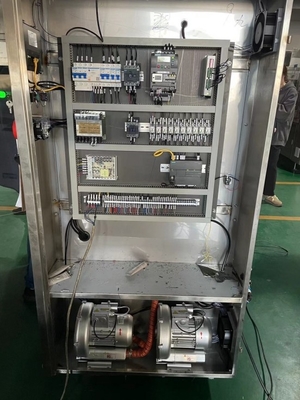

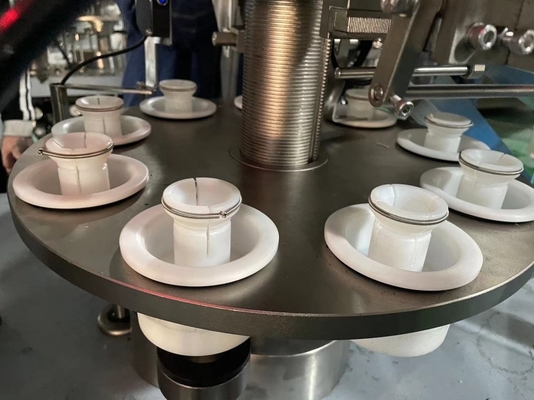

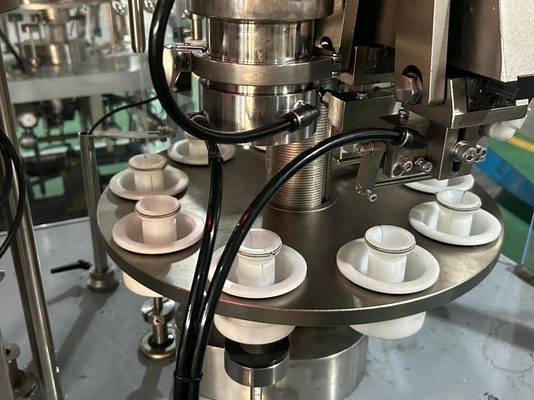

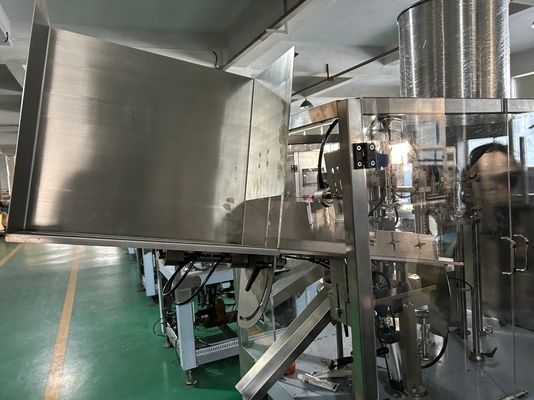

Product Images
Sample Display
Certification
Frequently Asked Questions
What's the delivery time?
It's usually about 30 days
How many container request for this machine?
Suggest ship by LCL.
Are you a manufacturer?
Yes, We have been packaging machinery over 17 years.
What about the payment term?
Mostly 40%T/T in advanced, the rest need paid before shipping.
What's your advantages?
- 17 years experience: We have been in making machinery for 17 years.
- Customers all over the world
- Certificate: CE certificate
- Fast reply: Our team will reply you soon.
- After-sale service: We have a after sale department, service for your problems and dealing with spare parts.
