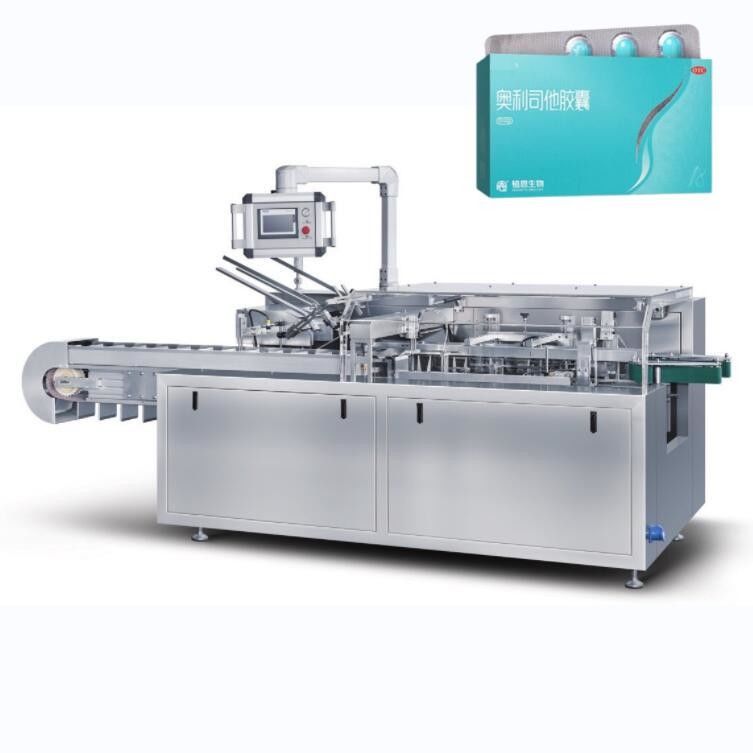

Automatic Cartoning Machine 80 Boxes/Min

Place of Origin: China
Brand Name: TRUSTAR/HIJ
Certification: CE
Model Number: WZTS-130
Product Details
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
WZTS-130
Minimum Order Quantity:
1 SET
Price:
Negotiable
Standard Packaging:
Seaworthy wooden cases
Delivery Time:
It depends.
Payment Terms:
T/T
Supply Ability:
It depends.
Specifications
Features:
Automatic Carton Forming, Opening, Filling, Sealing, And Batch Number Printing
Application:
Food, Beverage, Commodity, Medical, Chemical,
Packaging Material:
Paper
Driven Type:
Electric
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Machine Weight:
1400kg
Power Supply:
220V/380V, 50Hz/60Hz
Packaging Detail:
Normal Export Wooden Case
Working Noise:
<75dB
Orgin:
Zhejiang,China
Function:
High Efficiency
Output:
Max.80 Boxes/min
Automatic Grade:
Automatic
Highlight:

pharmaceutical automatic cartoning machine

,

high-speed cartoning machine 80 boxes/min

,

automatic cartoning machine with warranty

Product Description
Pharmaceutical Blister Cartoning Machine Automatic Carton Packing Machine
Product Specifications
Attribute Value
Application Food, Beverage, Commodity, Medical, Chemical
Packaging Material Paper
Driven Type Electric
Applicable Industries Manufacturing Plant, Food & Beverage Factory
Machine Weight 1400kg
Power Supply 220V/380V, 50Hz/60Hz
Packaging Detail Normal Export Wooden Case
Features Automatic carton forming, opening, filling, sealing, and batch number printing
Working Noise <75dB
Origin Zhejiang, China
Function High Efficiency
Output Max. 80 boxes/min
Automatic Grade Automatic
Product Overview

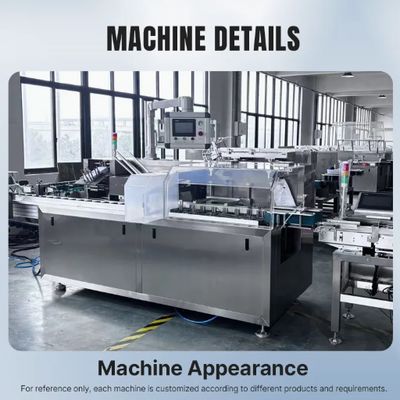

Automatic cartoning machine in operation

This automatic cartoning machine is a horizontal type box packing machine developed through extensive research of domestic and international technologies. Combining electrical, pneumatic, and mechanical systems, this high-performance machine delivers exceptional production efficiency and stability even during high-speed operation.

Key Applications

Ideal for pharmaceutical, food, cosmetics, and auto parts industries, this machine efficiently packages blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and other products into cartons.

Advanced Features
  • PLC control system with international brand components
  • User-friendly HMI touch screen interface
  • Automatic overload protection and fault detection
  • Quality control with automatic rejection of incomplete cartons
  • Real-time error display and production counting
  • Batch number printing capability
  • Mechanical or hot melt glue sealing options
Technical Parameters
Cartoning Speed 65 cartons/min (synchronized with tube filling machine)
Carton Requirements 250-350g/㎡ (varies by carton size)
Dimension Range (L*W*H) (100-185)mm * (30-70)mm * (25-45)mm
Leaflet Requirements 60-70 g/㎡
Unfolded Size Range (L*W) (80-250)mm * (90-170)mm
Folding Range 1-4 folds
Compressed Air ≥0.6mpa working pressure, 120-160L/min consumption
Power Supply 380V 50HZ
Main Motor Power 1.5kw
Machine Dimensions (L*W*H) 3100mm * 1100mm * 1550mm
Net Weight Approx. 1400kg
Machine diagram showing components Machine in operation
Detailed Photos

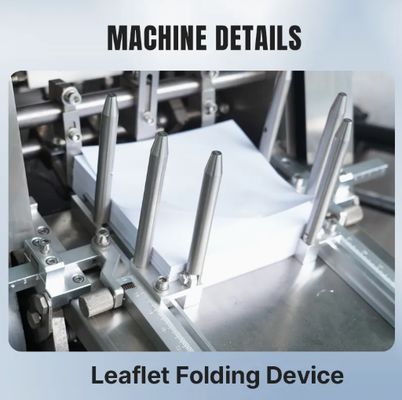

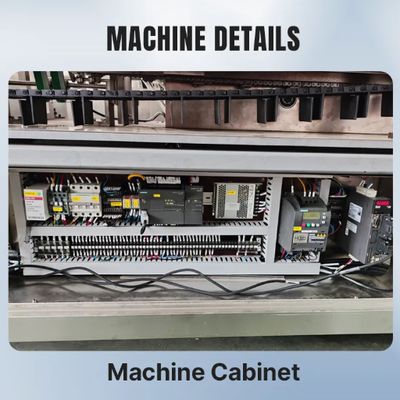

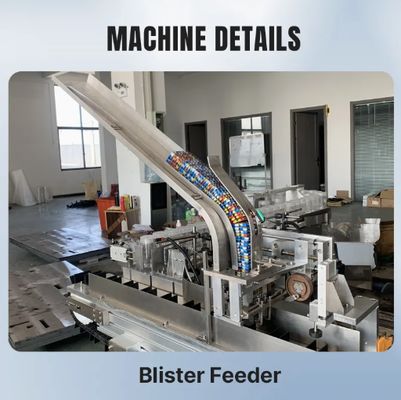

Machine detail view 1 Machine detail view 2 Machine detail view 3 Machine detail view 4 Machine detail view 5
Frequently Asked Questions
What's the delivery time?

Approximately 30 working days.

How many containers are required for this machine?

We recommend shipping by LCL (Less than Container Load).

Are you a manufacturer?

Yes, we have specialized in packaging machinery manufacturing for over 17 years.

What are your payment terms?

Standard terms are 40% T/T deposit with balance paid before shipping.

What are your advantages?
  • 17 years of machinery manufacturing experience
  • Global customer base
  • CE certified products
  • Responsive customer service
  • Comprehensive after-sales support and spare parts service
