Introduction:

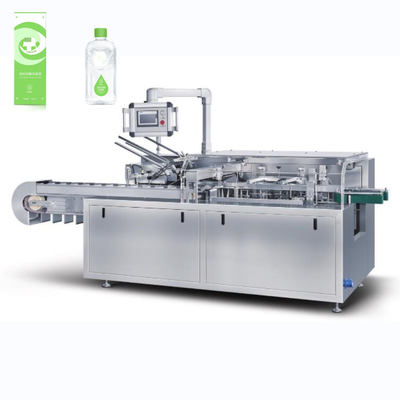

This machine is suitable for packing bottle, blister and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box.
It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with other machine on line.
Features:
1 . This machine auto complete folding , the box forming and openning , edition piece cartoning , batch number printing work. And can be equipped with hot melt adhesive system to complete the hot melt adhesive sealing.

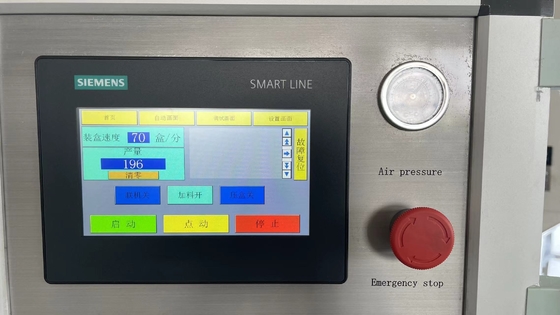

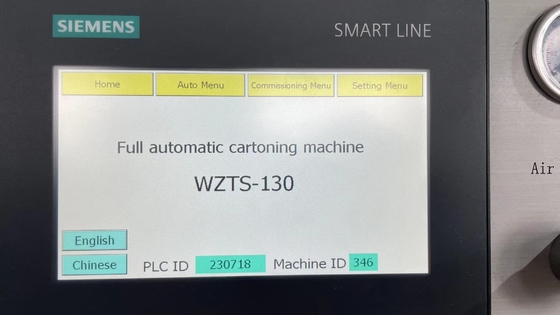

2 . This machine adopts PLC control . The action of each part of the photoelectric monitoring , abnormaleration , can Automatic shutdown display reasons , so as to eliminate the fault
3 . The inner part of the machine frame is provided with a main driving motor and clutch brake , andthe machine plate is provided with each part of the torque overload protection device of transmission system , in the case of overload , the realization of the main drive motor and the drive parts is disengaged , ensure the safety.
4 . The machine is equipped with intelligent detection device . No material not put-down instructions,not put-down carton , In order to for the before device linkage work. Found waste in the detection process ( no drug version , instructions ) were excluded , to ensure the quality of products fully meet requirements
5 . This machine can be used alone , but also with the blister packaging machine and other equipment linkage used , shapelnto a set of production line.
6 . The machine according to different use requirements of users , replaceable packing specification ,adjustment and commissioning Simple , is suitable for mass production of a single variety , and users can satisfy the small Batch production of more varieties.
Main technical parameters:
| Cartoning speed |
65 cartons/ min
(according to the speed of the tube filling machine)
|
| Carton |
Quality requirements |
250-350g/㎡ (depend on the size of the carton) |
| Dimension range (L×W×H) |
(100-185) mm× (30-70) mm× (25-45) mm |
| Leaflet |
Quality requirements |
60-70 g/㎡ |
| Unfolded size range (L×W) |
(80-250)㎜×(90-170)㎜ |
| Folding range (L×W) |
1-4 (Fold) |
| Compressed air |
Working pressure |
≥0.6mpa |
| Air consumption |
120-160L/min |
| Power supply |
380V 50HZ |
| Main motor power |
1.5kw |
| Dimension (L×W×H) |
3100mm×1100mm×1550mm |
| Machine net weight |
About 1400kg |

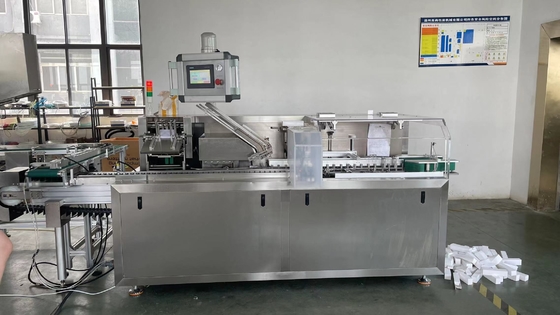

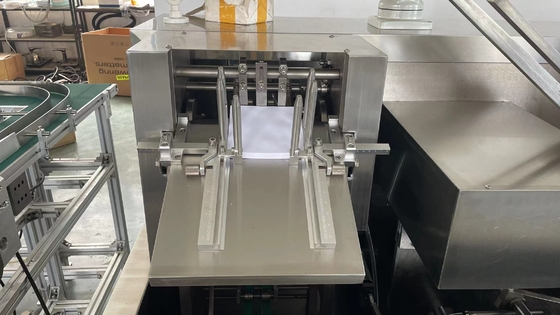

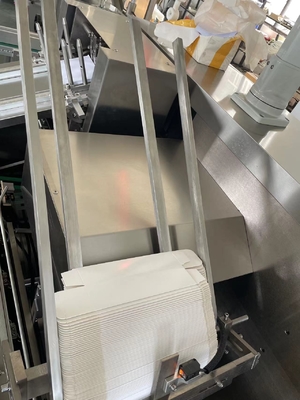

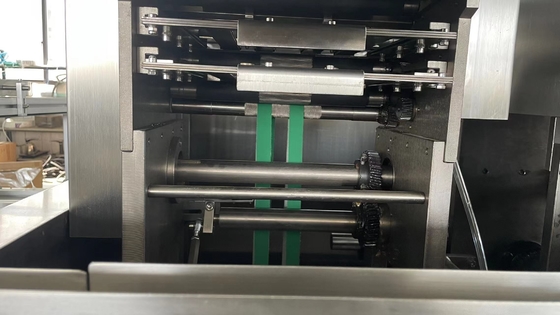

Details Photos:
Q&A:
1.what's the delivery time?
it's about 30 working days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
