Machine Brief
Scope of application: Widely used in medicine, cosmetics, food, chemical and other industries. For example, in the pharmaceutical industry, it is used for filling ointments, pharmaceuticals, etc.; Cosmetics industry for filling toothpaste-like skin care products, hair dye, etc.; Food industry can fill ketchup, salad dressing and other sauces.
※ Automatic Tube Loading and Feeding
※ Automatic Print Registration
※ Tube orientation checking
※ Tube Automatic Filling with Anti-drop
※ Inner heating and external cooling
※ Tube Sealing & Code embossed
※ Tube Cutting more than million times
※ Automatic discharge to next step
※ Siemens PLC & HMI CONTROL system
※ WATER COOLING CHILLER
※ AUTOMATIC PRODUCT FEEDING SYSTEM WITH LEVEL CONTROL.
Technical Parameters:
| 1 |
Product capacity |
50-75pcs/min |
| 2 |
Filling volume |
5-250ml |
| 3 |
Filling accuracy |
≤±1% |
| 4 |
Tube length |
50-210 |
| 5 |
Tube diameter |
Φ10- Φ50 |
| 6 |
Tube material |
Plastic compound tube |
| 7 |
Working pressure |
0.5-0.6MPa |
| 8 |
Compressed Air Consumption |
1.1m³/min |
| 9 |
Motor Power |
1.1KW |
| 10 |
Overall dimension |
1950*1000*1800mm |
| 11 |
Machine weight |
1200Kg |

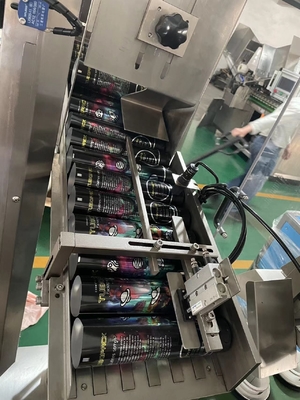

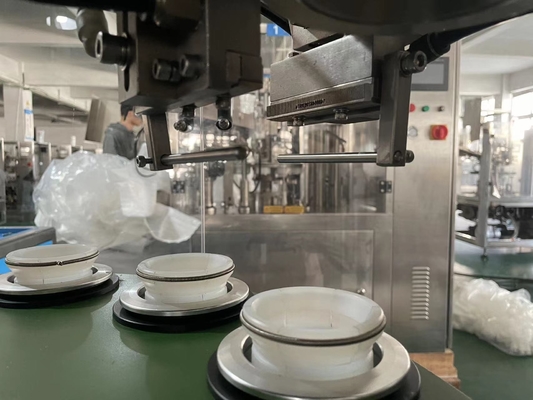

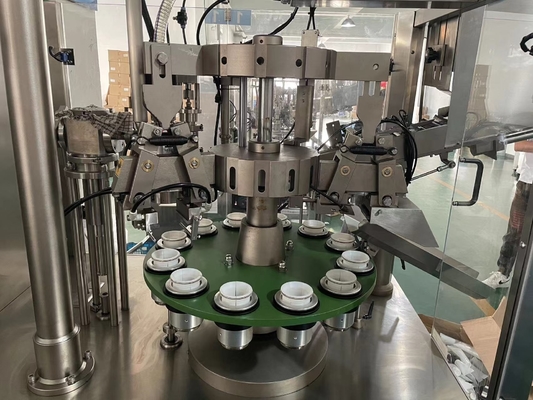

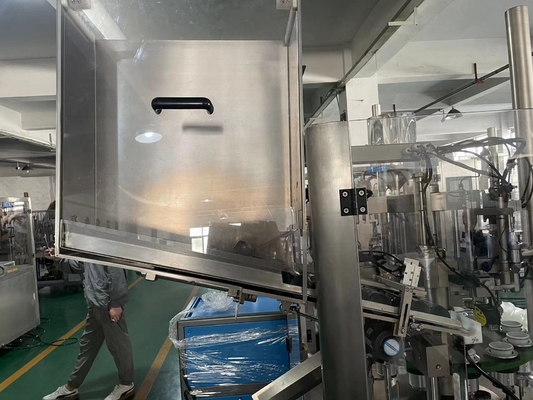

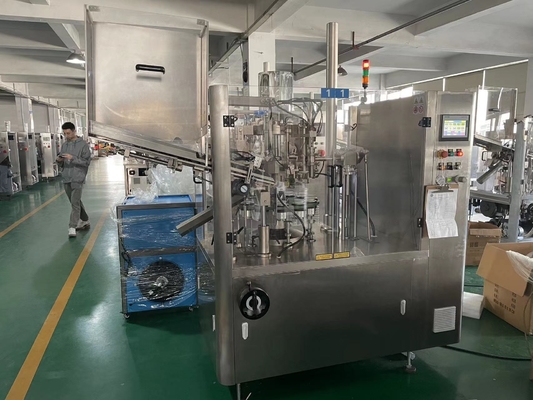

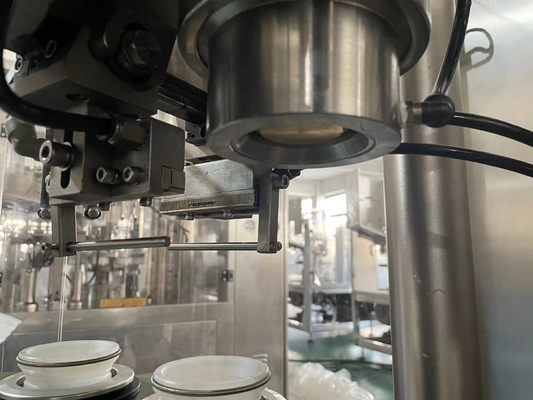

Machine details:
Sample display:
Q&A
1.what's the delivery time?
It's about 30days
2.how many container request for this machine
Suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
