Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream

Place of Origin: China
Brand Name: TRUSTAR/HIJ
Certification: CE
Model Number: TF-120
Product Details
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
TF-120
Minimum Order Quantity:
1 SET
Price:
Negotiable
Standard Packaging:
Seaworthy wooden cases
Delivery Time:
It depends. Usually it takes about 45 working days.
Payment Terms:
T/T
Supply Ability:
10 set/month
Specifications
Name:
Cosmetic Cream Tube Filling And Sealing Machine
Mold:
TF-120
Case Body Material:
304 Stainless Steel
Weight:
1400KG
Power Supply:
220V/50Hz
Main Motor:
2.2KW
Filling Range:
3-250ml
Operation Speed:
80-120/min/max
Suitable Tube Length:
50-210mm
Suitable Tube Diameter:
13-50mm
Machine size:
2350×1300×2400mm
Advantage:
Easy To Operate
Automatic Grade:
Automatic
Control System:
PLC
Hs Code:
8422309090
Operation System:
Touch Screen
Air Pressure:
0.6-0.8Mpa
Filling Material:
Lotion, Cream, Toothpaste, Sun Cream
Machine Function:
Tube Filling And Sealing
Highlight:

Inner Heating Sealing Machine

,

Chiller Soft Tube Filling Sealing Machine

,

Cream Soft Tube Filling Sealing Machine

Product Description

Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream



Description
This automatic tube flling machine is mainly used to flling ointment materials into cylindrical, capped tubes of Aluminum or Composite and seal the tubes ends. In compliance with the standard of GMP dosing pump is a new type stainless steel butterfly valve for ointment flling a screw fine adjustment device is privided, so the ointment weighing is accurate. Thanks to the Adption of the sophisticated accurately and reliably, change frequency to control the machine speed, Used FuKaiShen index drives and international advanced tube sealing systems.



Technical Parameter
  • Machine case body

  Case Body Material 304 stainless steel


Opening Mode of Safety Guard

 Handle Door


Safety Guard Material

 Organic Glass


Frame Below Platform

 Stainless Steel


Case Body Shape

 Square-shape
  • Power, Main Motor etc.

  Power Supply 50Hz/380V 3P
  Main Motor 2.2KW
  Hot Air Generator 3KW*2
  Jacket barrel heating power 2 KW*2 Optional
  Jacket barrel blending power 0.18 KW*2 Optional
  • Production Capacity

  Operation Speed 80-120/min/max
  Filling Range 3-250ml
  Suitable Tube Length 50-210mm
  Suitable Tube Diameter 13-50mm



Detailed photos

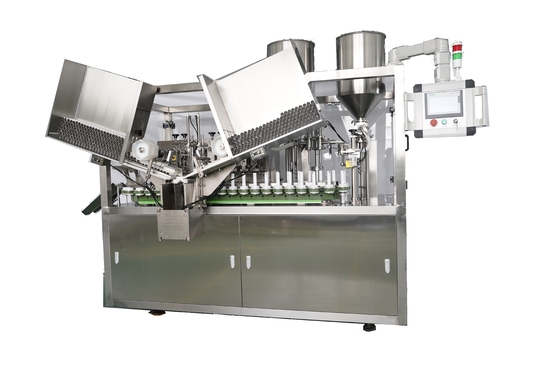

Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream

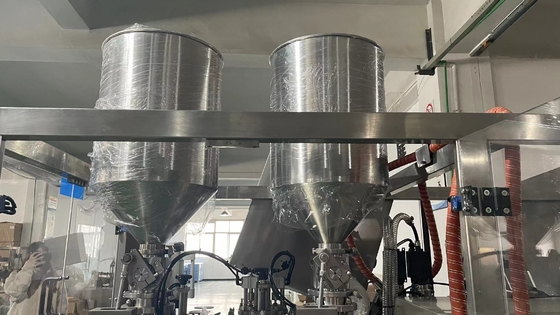

Double material barrel



Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream

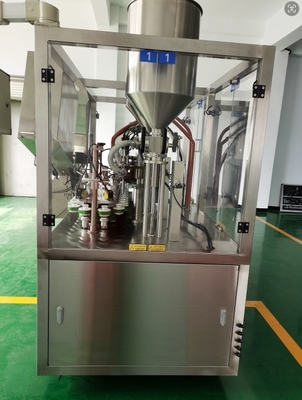

Product our plate



Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream

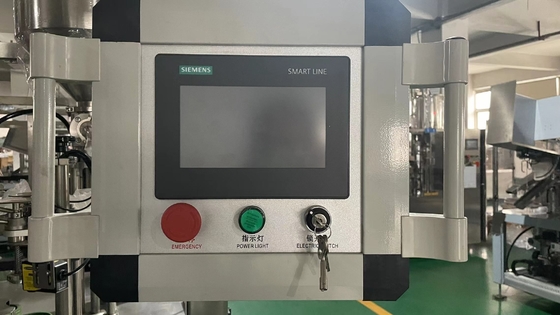

Touch screen



Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream

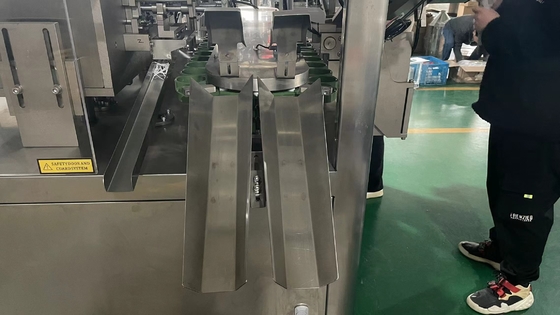

Double Filling heads



Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream

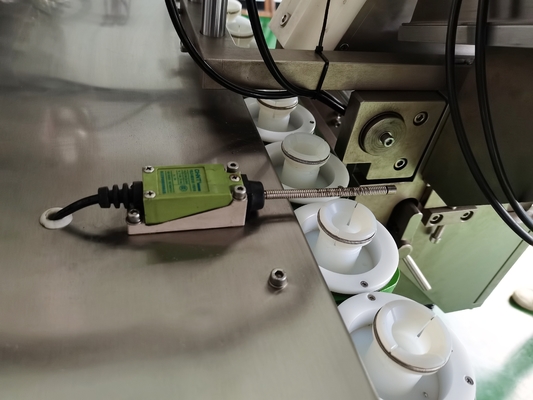

Working stations



Sample diaplay



Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream





Certificate


Plastic Composite Soft Tube Filling And Inner Heating Sealing Machine With Chiller For Hand Cream



FAQ

1.what's the delivery time?
It's usually about 30 days

2.how many container request for this machine
Suggest ship by LCL.

3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
