Introduction:
The WZTS-130 automatic cartoning machine is a high technology carton packing equipment , it has been widely used for boxes packing in chemical , food , daily necessities , hardware , electronics , toys ,auto . parts and other industries . With automatic goods feeding , box opening ,goods encasing . box NO.Printing,box sealing and scrap rejecting,the machine can be easily operated and reduce labor costs for customers.The machine can work well as independence,and also can operate with other packing machines to be as a packing machine line.
Feature:
1. With automatic goods feeding , box opening , goods encasing , box NO Printing , box sealing andscrap rejecting , the machine can be easily operated , running smoothly and low noisy

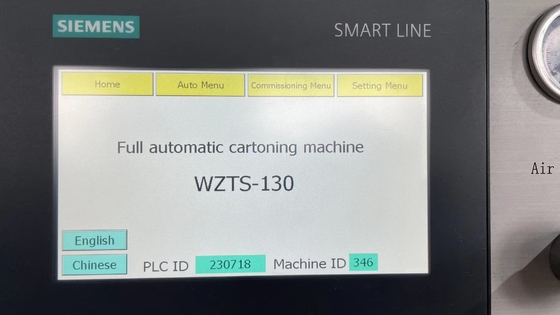

2. With VFD speed controlling , tough screen and PLC controlling system , the machine must be high efficiency and energy saving
3. With electrical appliances and pneumatic components of the worlds top brands , the machine will be more stable working performance
4. With overload protection device , the machine can ensure itself and workers more safer .
5. With the automatic detection and tracking system , the machine will reject the non-goods or non -leaflet packages
6. With the alarm system for mechanical defects , it will be much easier to maintain the machine
7. According to customers requirement , the hot melt glue machine can be equipped to seal the boxes
8. Running well as independent , the machine also can operate with pillow packaging labeling machine , heat-shrink packing machine or other machines to be as a packing machine line.
Main technical parameters:
| Cartoning speed |
65 cartons/ min
(according to the speed of the tube filling machine)
|
| Carton |
Quality requirements |
250-350g/㎡ (depend on the size of the carton) |
| Dimension range (L×W×H) |
(100-185) mm× (30-70) mm× (25-45) mm |
| Leaflet |
Quality requirements |
60-70 g/㎡ |
| Unfolded size range (L×W) |
(80-250)㎜×(90-170)㎜ |
| Folding range (L×W) |
1-4 (Fold) |
| Compressed air |
Working pressure |
≥0.6mpa |
| Air consumption |
120-160L/min |
| Power supply |
380V 50HZ |
| Main motor power |
1.5kw |
| Dimension (L×W×H) |
3100mm×1100mm×1550mm |
| Machine net weight |
About 1400kg |

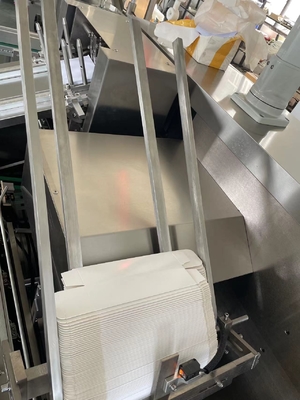

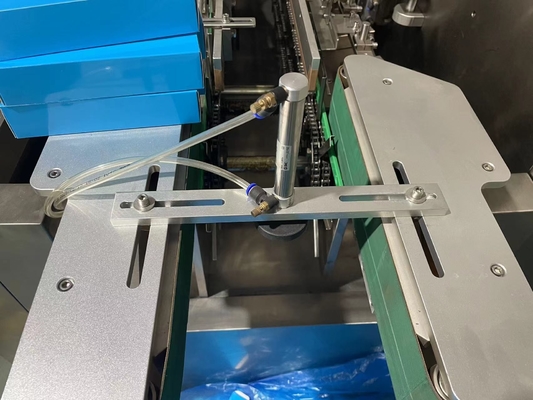

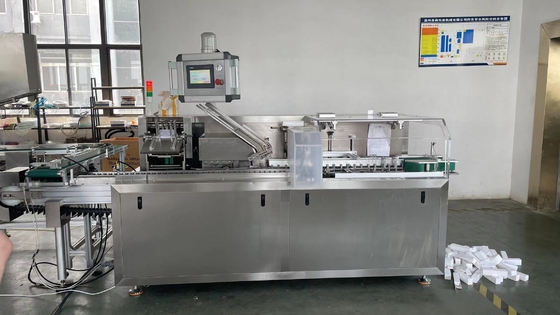

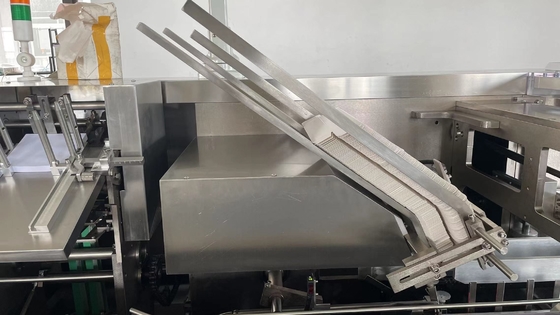

Details Photos:
Q&A:
1.what's the delivery time?
it's about 30 working days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
