Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine

Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine
Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine
Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine

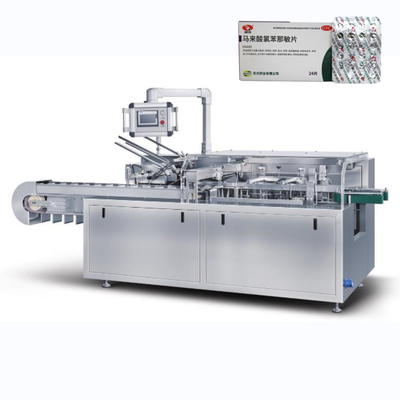

Large Image :  Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine

Product Details:
Place of Origin: CHINA
Brand Name: HIJ/TRUSTAR
Certification: CE
Model Number: WZTS-130
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seathworthy wooden cases
Delivery Time: It depends.
Payment Terms: T/T
Supply Ability: It depends.

Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine

Description
Carton Gram Requirements: 300-350g/m3 Air Consumption: 120-160L/min
Function: Carton Forming Key Word: Automatic Cartoning Machine
Box Dimension Range: (100-180) Mm× (30-70) Mm× (25-45) Mm Machine Noise: ≤80dB
Working Speed: 30-80 Boxes/min Power: 1.5Kw
Material: SUS304 Operation System: Touch Screen

Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine 0



Description

The machine is a new model developed by our company combining advanced technology at home and abroad. It’s a high-tech product integrating light, electricity, gas and machinery, greatly improving the performance and working efficiency, realizing the requirement of fast packing, and keeping stable and reliable state when running fast.

This machine is suitable for automatic feeding and packing of food, medicine, daily chemicals, entertainment, hardware and other goods. The automatic feeding mechanism is easy to adjust, the number of boxes to be packed can be set arbitrarily on the operation screen. The whole process of on-line material testing, indentation batch number, paper tongue packaging at both ends of paper box (also applicable to hot melt adhesive), material shortage elimination and finished product output is completed automatically.

Technical Parameter
Cartoning speed 30-80 cartons/ min
Carton Weight requirements 300-350g/㎡ (depend on the size of the carton)
Dimension range (L×W×H) (100-180) mm× (30-70) mm× (25-45) mm

Leaflet

(optional)

Weight requirements 60-70 g/㎡
Unfolded size range (L×W) (80-250)㎜×(90-170)㎜
Folding range (L×W) 1-4 (Fold)
Compressed air Working pressure ≥0.6mpa
Air consumption 120-160L/min
Power supply 380V 50HZ
Main motor power 1.5kw
Dimension (L×W×H) 3100mm×1100mm×1550mm
Machine net weight About 1400kg

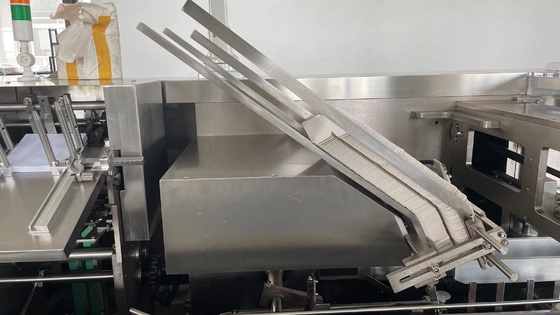

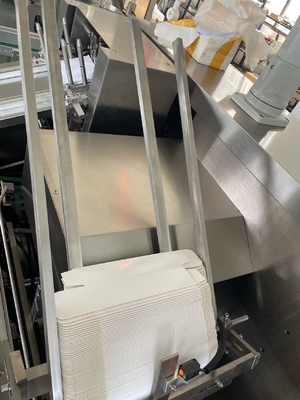

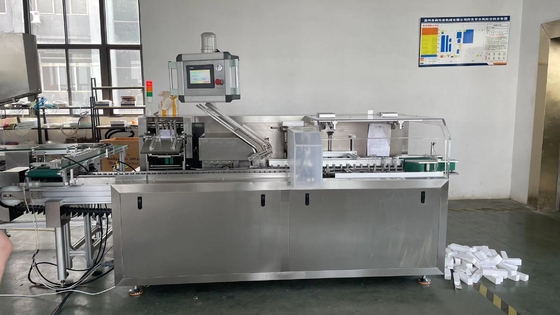

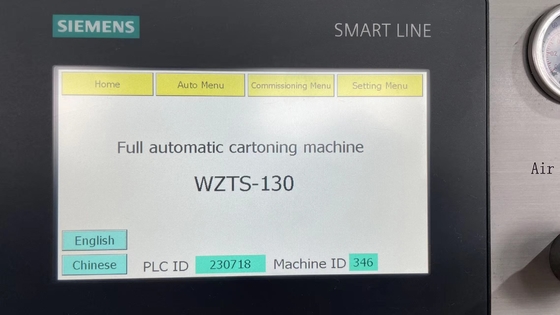

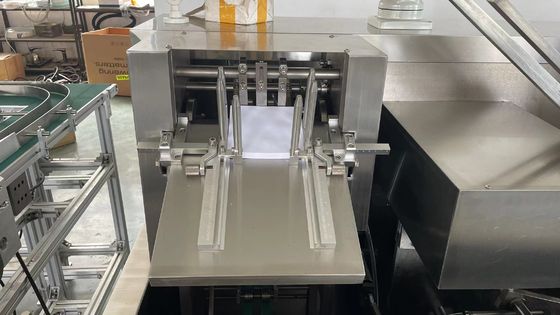

Detailed photos



Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine 1

Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine 2



Sample diaplay

Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine 3

Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine 4





Usage
Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine 5
Certificate


Automatic Horizontal Tablet Pill Capsule Carton Box Packing Machinery Blister Board Plate Tray Cartoning Packing Machine 6



FAQ

1.what's the delivery time?
It's usually about 30 days

2.how many container request for this machine
Suggest ship by LCL.

3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
