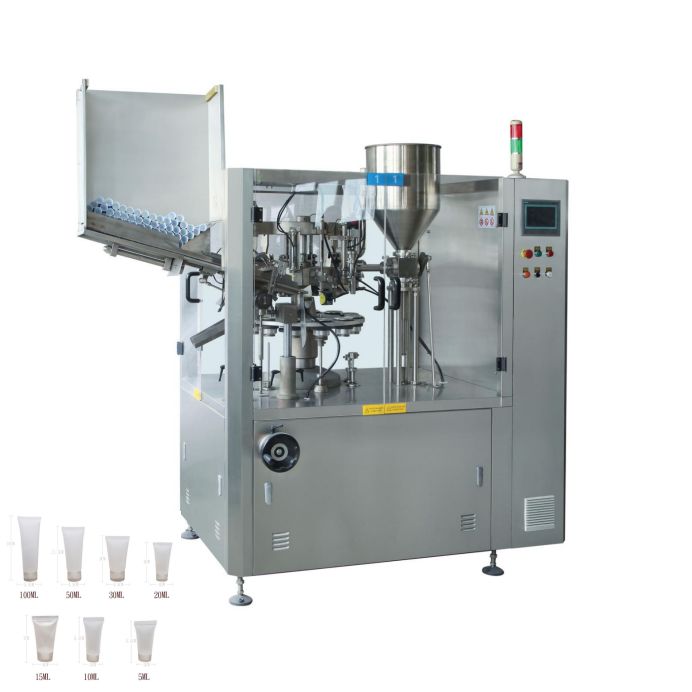

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine
Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine

Large Image :  Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine

Product Details:
Place of Origin: CHINA
Brand Name: HIJ/TRUSTAR
Certification: CE
Model Number: TF-80
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seathworthy wooden cases
Delivery Time: It depends.
Payment Terms: T/T
Supply Ability: It depends.

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine

Description
Weight: 1200KG Name: Soft Tube Filling Sealing Machine
Power: 220V Filling Accuracy: ±1%
Control System: PLC Dimension: 1950*1000*1800mm
Filling Volume: 5-250ml Air Pressure: 0.6-0.8Mpa
High Light:

PLC Soft Tube Filling Sealer

,

Tube Filling Sealing Machine 50mm

,

50HZ Tube Filling Sealing Machine

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine 0

Product Description:

The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, food, cosmetic,etc.

Features:

The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high-efficiency heater and highly stable flow meter form the hot air heating system. It has such features as firm sealing, high speed,no damage to the surface at the sealing place, beautiful and neat sealing shape. The machine can be equipped with filling heads of different specifications to meet the filling requirements of different viscosity. The organic glass dust cover is also provided.



Technical Parameters:

1 Hose material Metal tuve
2 Filling volume 5-250ml
3 Filling accuracy ≤±1%
4 Tube length 50-210mm
5 Tube diameter Φ13- Φ35
6 Operating speed 50-70/min
7 Working pressure 0.55-0.65 MPa
8 Compressed Air Consumption Over 600L/min
9 Motor Power 1.5KW
10 Overall dimension 1500*1200*2000mm
11 Machine weight 1200Kg







Detailed photos:

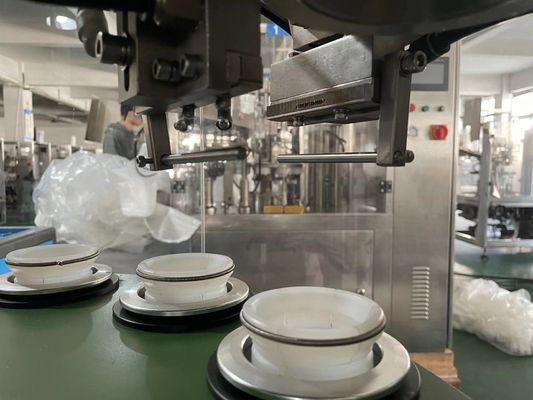

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine 1                               Mold                                    Touch screen                                        Electrical Cabinet

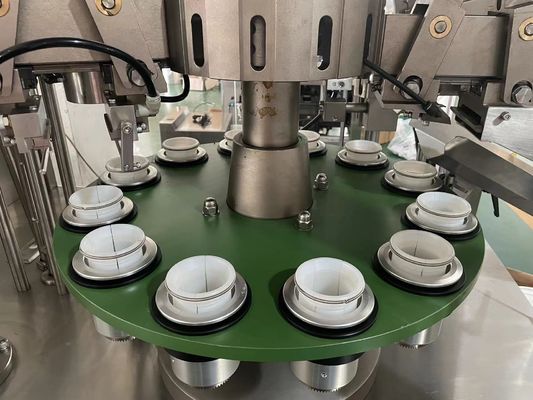

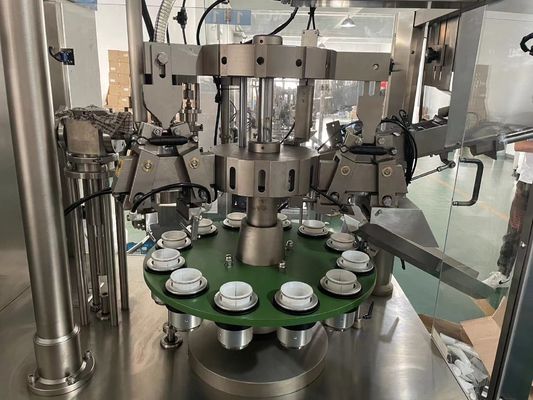

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine 2                          Turntable                                     Handwheel                                           Barrel

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine 3                    Water chiller                                        Heating box                               Pneumatic plunger pump

Applications:

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine 4



Packing&Shipping:

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine 5


After Sales Service:

Automatic Ointment Plastic Soft Tube or Laminate Tubes Filling and Sealing Machine 6



FAQ:

1.what's the delivery time?
it's about 30 working days

2.how many container request for this machine
suggest ship by LCL.

3.Are you a manufacturer?
Yes,We have been packaging machinery over 17years.

4.what about the payment term ?
Mostly 34%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , ser
