Toothpaste Filling And Sealing Machine Plastic Tube Body Lotion Hand Cream
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Tube Filling And Sealing Machine | Model | ZHY-60YP |
|---|---|---|---|
| Advantage | Easy To Operate | Packing Speed | 40-50pcs/min |
| Sealing Type | Hot Sealing | Filling Material | Lotion, Cream, Toothpaste, Sun Cream |
| Tube Material | Plastic Tube | Application | Chemical, Food, Cosmetics |
| High Light | Toothpaste Filling And Sealing Machine,Plastic Tube Filling And Sealing Machine,50pcs/min Tube Filling And Sealing Machine |
||
Product Description

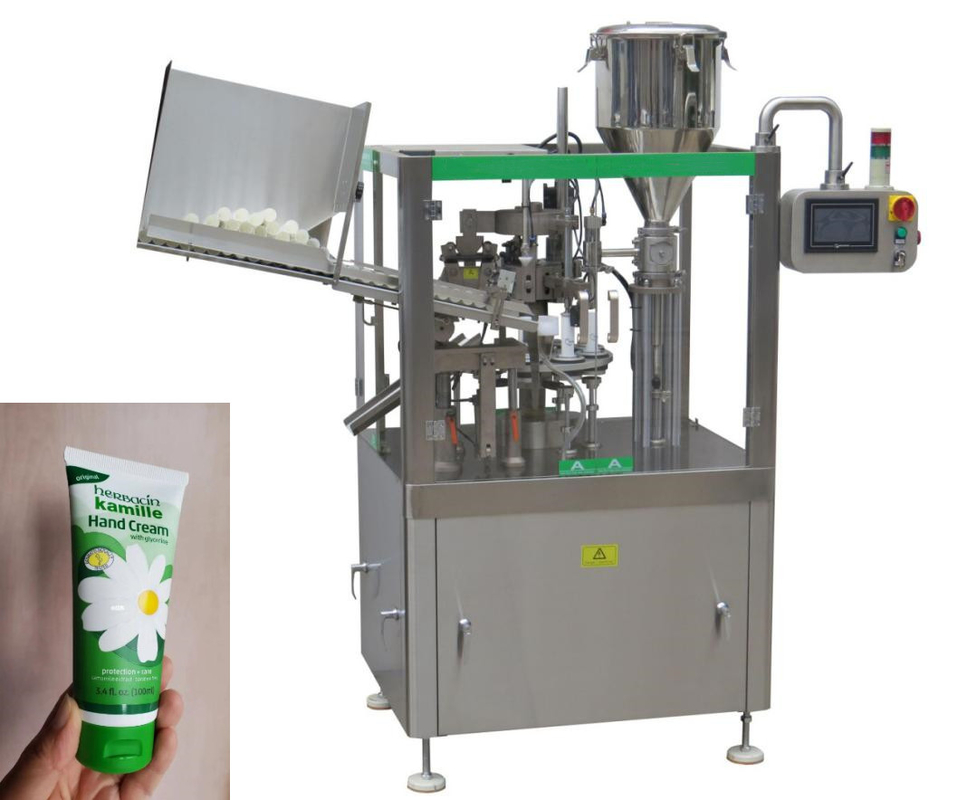

ZHY-60YP Tube filling & Sealing Machine
1. Machine Brief
This machine is a high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement. It adopts with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries.
2. Machine Features
1) Operation screen with LCD display PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.
2) Automatically executing tube supply, photoelectron register, inert gas filling (optional), material filling and sealing, batch number printing, final products output.
3) High precision photoelectron register, reduced the chromatic aberration scope.
4) Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5) Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; warning if tube error position, pressure too low, automatic stop machine if open the protective door.
3. Technical Parameters:
| 1 | Product capacity | 40-50pcs/min |
| 2 | Filling volume | 5-250ml |
| 3 | Filling accuracy | ≤±0.5% |
| 4 | Tube length | 50-240 |
| 5 | Tube diameter | Φ12- Φ50 |
| 6 | Tube material | Plastic compound tube |
| 7 | Working pressure | 0.6 MPa |
| 8 | Compressed Air Consumption | Over 600L/min |
| 9 | Motor Power | 3KW |
| 10 | Overall dimension | 1950*750*1850mm |
| 11 | Machine weight | 750Kg |

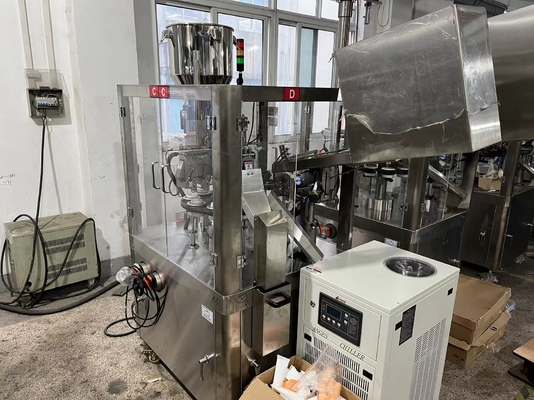

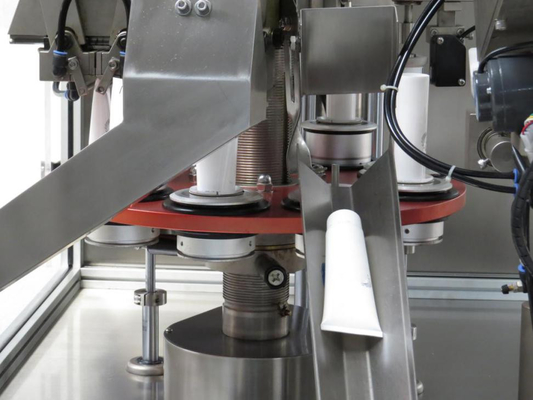

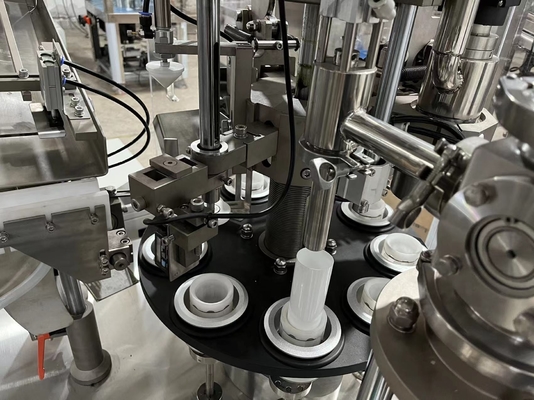

Machine details:
Samples:
Packing datails:
Any questions about the machine, please contact with me.
1.what's the delivery time?
it's about 30days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 14 years.
4.what about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.
5.What information should i let you know if i want to get a quotation?
--Quantity
--What's the bag size?
--What's the unfold wipe size ?
--What's the folding way ?
--how many ml of each bag?
--What's the inner material and outter material ?
6.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
