Product Details:
|
| Product Name: | Tube Filling And Sealing Machine | Model: | ZHF-60Z |
|---|---|---|---|
| Advantage: | Easy To Operate | Packing Speed: | 35-40pcs/min |
| Sealing Type: | Folding | Filling Material: | Lotion, Cream, Toothpaste, Sun Cream |
| Tube Material: | Metal Tube | Application: | Chemical, Food, Cosmetics |
| High Light: | Fully Automatic tube filling machine,metal Toothpaste Tube filling machine,Cream Paste Tube Filling Sealing machine |
||
ZHF-60Z Tube filling & Sealing Machine
1. Machine Brief
The hose is placed neatly in the large-capacity pipe hopper. After the automatic feeding device, the hose is automatically inserted into the positioning die after being aligned, and the positioning die rotates with the turntable and stays at different working positions. The paste to be filled is put into a closable conical barrel, and the piston type quantitative filling valve directly connected with the barrel is accurately and automatically injected into the empty tube intermittently staying at the filling station, and the large tray continues to rotate. The hose that has been filled with the paste is quickly taken to the flattening station, and then transferred to the mechanical manual position to seal the aluminum tube and complete the coding.
3. Technical Parameters:
| 1 | Hose material | Metal tuve |
| 2 | Filling volume | 5-200ml |
| 3 | Filling accuracy | ≤±1% |
| 4 | Tube length | 50-200mm |
| 5 | Tube diameter | Φ13- Φ35 |
| 6 | Operating speed | 35-40/min |
| 7 | Working pressure | 0.55-0.65 MPa |
| 8 | Compressed Air Consumption | Over 600L/min |
| 9 | Motor Power | 1.5KW |
| 10 | Overall dimension | 15000*1000*2000mm |
| 11 | Machine weight | 800Kg |

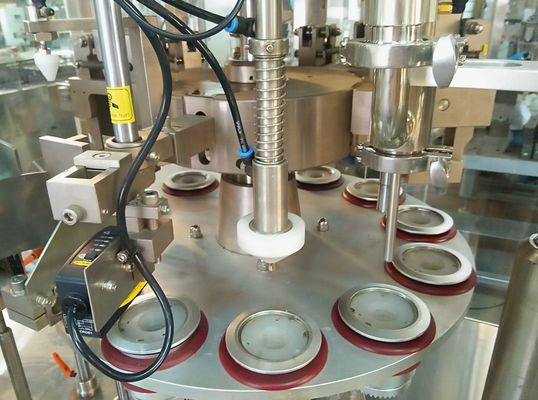

Machine details:
Samples:
Packing datails:
