High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry

High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry
High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry
High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry

Large Image :  High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry

Product Details:
Place of Origin: CHINA
Brand Name: HIJ/TRUSTAR
Certification: CE
Model Number: ZHF-60Z
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seathworthy wooden cases
Delivery Time: It depends.
Payment Terms: T/T
Supply Ability: It depends.

High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry

Description
Product Name: Tube Filling And Sealing Machine Model: ZHF-60Z
Advantage: Easy To Operate Packing Speed: 35-40pcs/min
Sealing Type: Folding Filling Material: Lotion, Cream, Toothpaste, Sun Cream
Tube Material: Metal Tube Application: Chemical, Food, Cosmetics
High Light:

Alu tube filling and sealing machine

,

1.5KW tube filling and sealing machine

,

0.65 MPa tube filling sealing machine

High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry 0

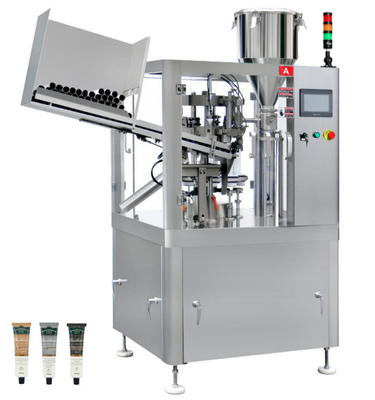

ZHF-60Z Tube filling & Sealing Machine







1. Machine Brief

The hose is placed neatly in the large-capacity pipe hopper. After the automatic feeding device, the hose is automatically inserted into the positioning die after being aligned, and the positioning die rotates with the turntable and stays at different working positions. The paste to be filled is put into a closable conical barrel, and the piston type quantitative filling valve directly connected with the barrel is accurately and automatically injected into the empty tube intermittently staying at the filling station, and the large tray continues to rotate. The hose that has been filled with the paste is quickly taken to the flattening station, and then transferred to the mechanical manual position to seal the aluminum tube and complete the coding.







3. Technical Parameters:

1 Hose material Metal tuve
2 Filling volume 5-200ml
3 Filling accuracy ≤±1%
4 Tube length 50-200mm
5 Tube diameter Φ13- Φ35
6 Operating speed 35-40/min
7 Working pressure 0.55-0.65 MPa
8 Compressed Air Consumption Over 600L/min
9 Motor Power 1.5KW
10 Overall dimension 15000*1000*2000mm
11 Machine weight 800Kg

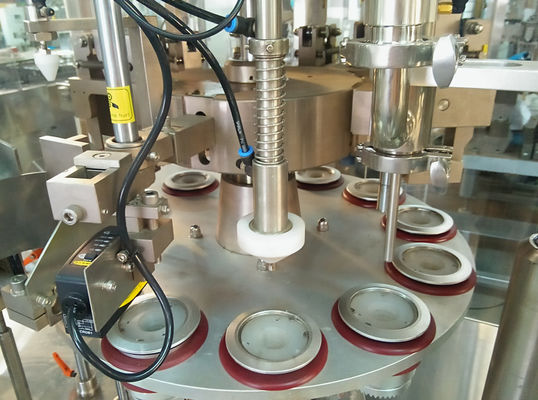

Machine details:

High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry 1



High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry 2



High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry 3

High Performance Alu Tube Filling And Sealing Machine For Cosmetic Packaging Industry 4





Samples:





Packing datails:






Any questions about the machine, please contact with me.


1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 14 years.

4.what about the payment term ?

Mostly 30%T/T in advanced,the rest need paid before shipping.

5.What information should i let you know if i want to get a quotation?

--Quantity

--What's the bag size?

--What's the unfold wipe size ?

--What's the folding way ?

--how many ml of each bag?

--What's the inner material and outter material ?

6.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
