Product Details:
|
Product Name: | Tube Filling And Sealing Machine | Model: | ZHY-60YP |
---|---|---|---|
Advantage: | Easy To Operate | Packing Speed: | 40-50pcs/min |
Sealing Type: | Hot Sealing | Condition: | New |
Highlight: | Soft Plastic Tube Filling Sealing Machine,Cosmetic Lotion Cream Filling Sealing Machine,Automatic Soft Tube Filling Sealing Machine |

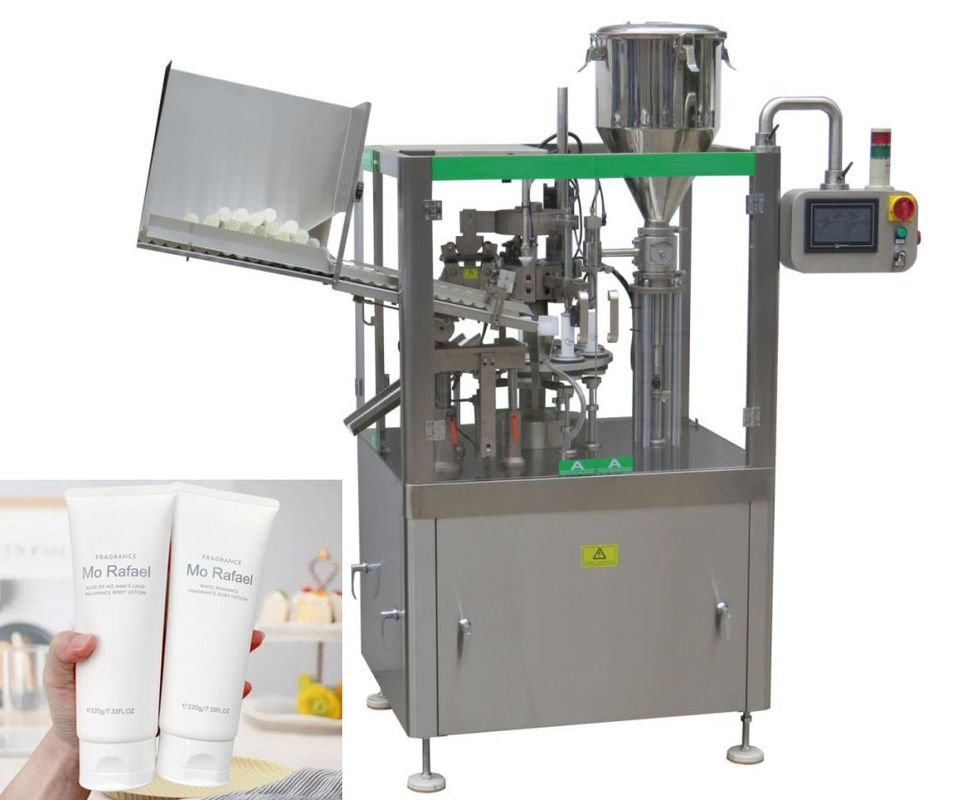

ZHY-60YP Tube filling & Sealing Machine
1. Machine Brief
This machine is a high technical equipment which successfully developed and designed by introducing into advanced overseas technology and integrating GMP requirement. It adopts with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date), it's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries.
2. Machine Features
1) Operation screen with LCD display PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.
2) Automatically executing tube supply, photoelectron register, inert gas filling (optional), material filling and sealing, batch number printing, final products output.
3) High precision photoelectron register, reduced the chromatic aberration scope.
4) Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5) Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; warning if tube error position, pressure too low, automatic stop machine if open the protective door.
3. Technical Parameters:
1 | Product capacity | 40-50pcs/min |
2 | Filling volume | 5-250ml |
3 | Filling accuracy | ≤±0.5% |
4 | Tube length | 50-240 |
5 | Tube diameter | Φ12- Φ50 |
6 | Tube material | Plastic compound tube |
7 | Working pressure | 0.6 MPa |
8 | Compressed Air Consumption | Over 600L/min |
9 | Motor Power | 3KW |
10 | Overall dimension | 1950*750*1850mm |
11 | Machine weight | 750Kg |

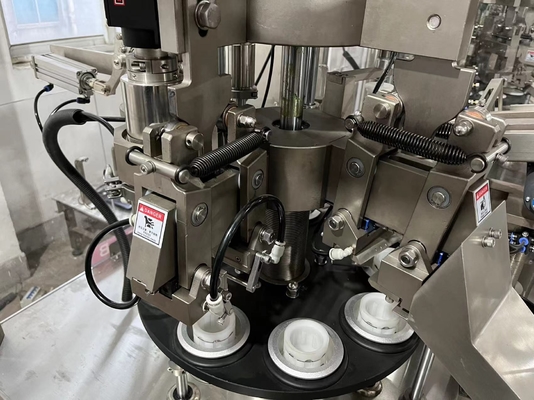

Machine details:
Samples:
Packing datails:
