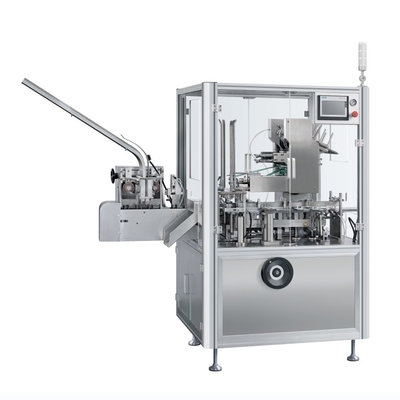

high speed Capsule Tablet Pill Blister Plate Cartoner Cartoning Machine Factory In China
Basic Properties
Trading Properties
| Power Supply: | 220V/380V, 50Hz/60Hz | Suitbale For: | Carton Boxes |
|---|---|---|---|
| Packaging Size: | L:50-200mm, W:20-100mm, H:15-60mm | Working Pressure: | 0.5-0.7mpa |
| Quality Requirement: | 300-350g/m2 | Warranty: | 1 Years |
| Machine Dimension: | L2000mm * W1200mm * H1800mm | Function: | Boxing / Cartoning |
| Key Word: | Automatic Cartoning Machine | Driven Typ: | Electric |
| Usage: | Fill Product To Carton And Seal | Carton Size: | L(80-200)mm * W(40-100)mm * H(15-60)mm |
| Highlight | CPP Film Wet Wipes Machine,120pcs/min Wet Wipes Machine,110mm Width Wet Wipes Machine |
||
The equipment is a high-tech product integrating light, electricity, gas and machinery. Thus, the performance and work efficiency of the equipment are greatly improved, and the requirements of fast packing are realized, and the stable and reliable state is still maintained during fast operation.

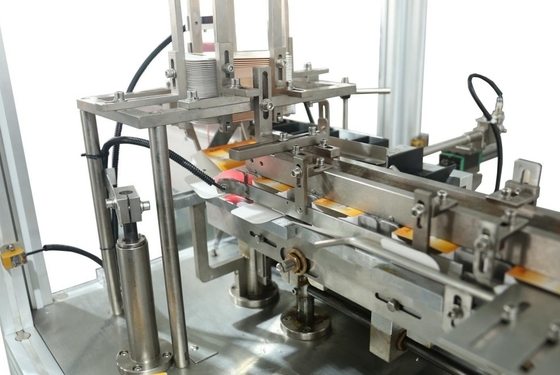

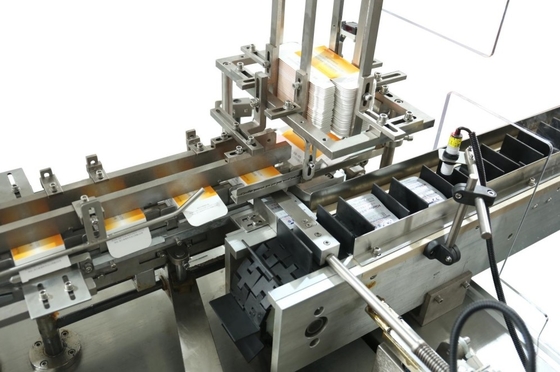

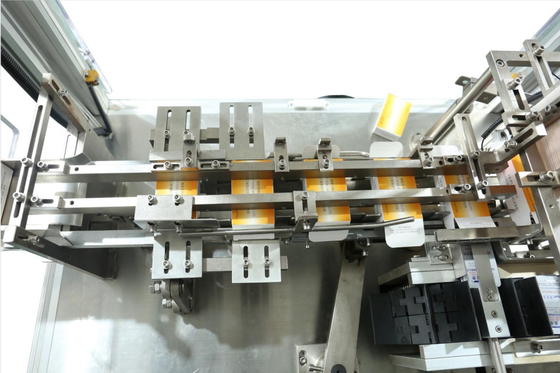

This machine is suitable for automatic packing of ointments. The working process is the transmission of packaging; Transfer of packaging instructions (1 to 4 folds can be automatically folded); The carton is automatically formed and transmitted, and the package is loaded into the carton with folded instructions at the same time; And automatically complete the complex packaging process such as batch number, paper tongue sealing at both ends (can be equipped with hot melt glue machine).
| Cartoning speed | 30-100 cartons/ min | |
| Carton | Weight requirements | 300-350g/㎡ (depend on the size of the carton) |
| Dimension range (L×W×H) | (65-155) mm× (30-85) mm× (14-55) mm | |
|
Leaflet (optional) |
Weight requirements | 60-70 g/㎡ |
| Unfolded size range (L×W) | (80-250)㎜×(90-170)㎜ | |
| Folding range (L×W) | 1-4 (Fold) | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 380V 50HZ | |
| Main motor power | 0.75kw | |
| Dimension (L×W×H) | 1200*990*1700mm | |
| Machine net weight | About 1100kg | |
1.what's the delivery time?
It's usually about 30 days
2.how many container request for this machine
Suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
