PLC medicine cartoning Line Interlocked Door Continuous Cartoning Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | 180cartons/min | Machine Dimension(L×W×H) | 3650×1560×2040mm |
|---|---|---|---|
| Machine Weight | About 1750kg | Fold Range | 1-4 Fold |
| Unfolded Leaflet Specification | （80-250）×（90-170）mm | Quality Requirement | 250-350g/m² |
| High Light | Interlocked Door Continuous Cartoning Machine,SS304 Continuous Cartoning Machine,PLC Wet Wipes Production Line |
||
Product Description

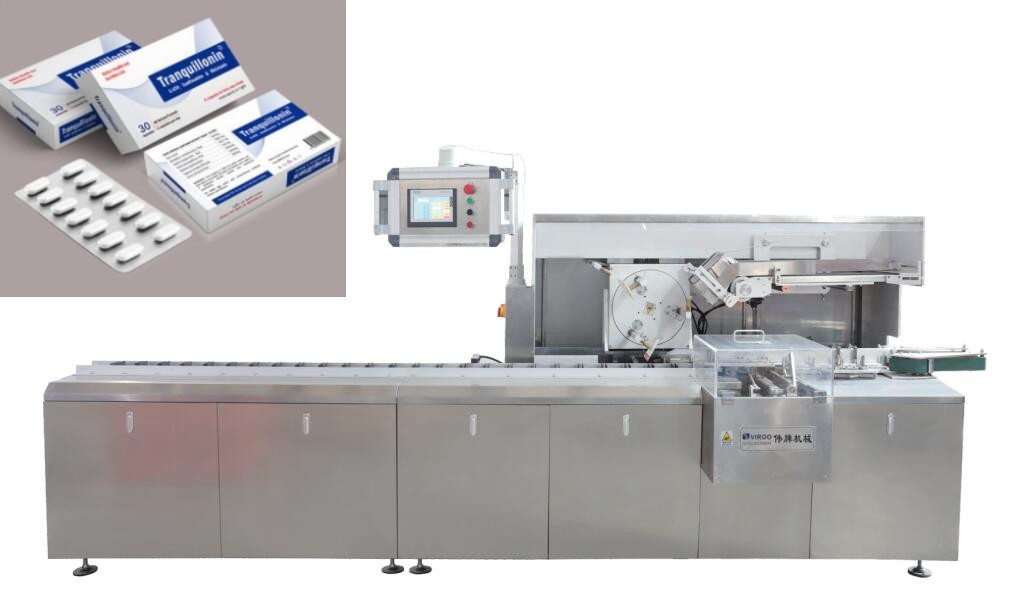

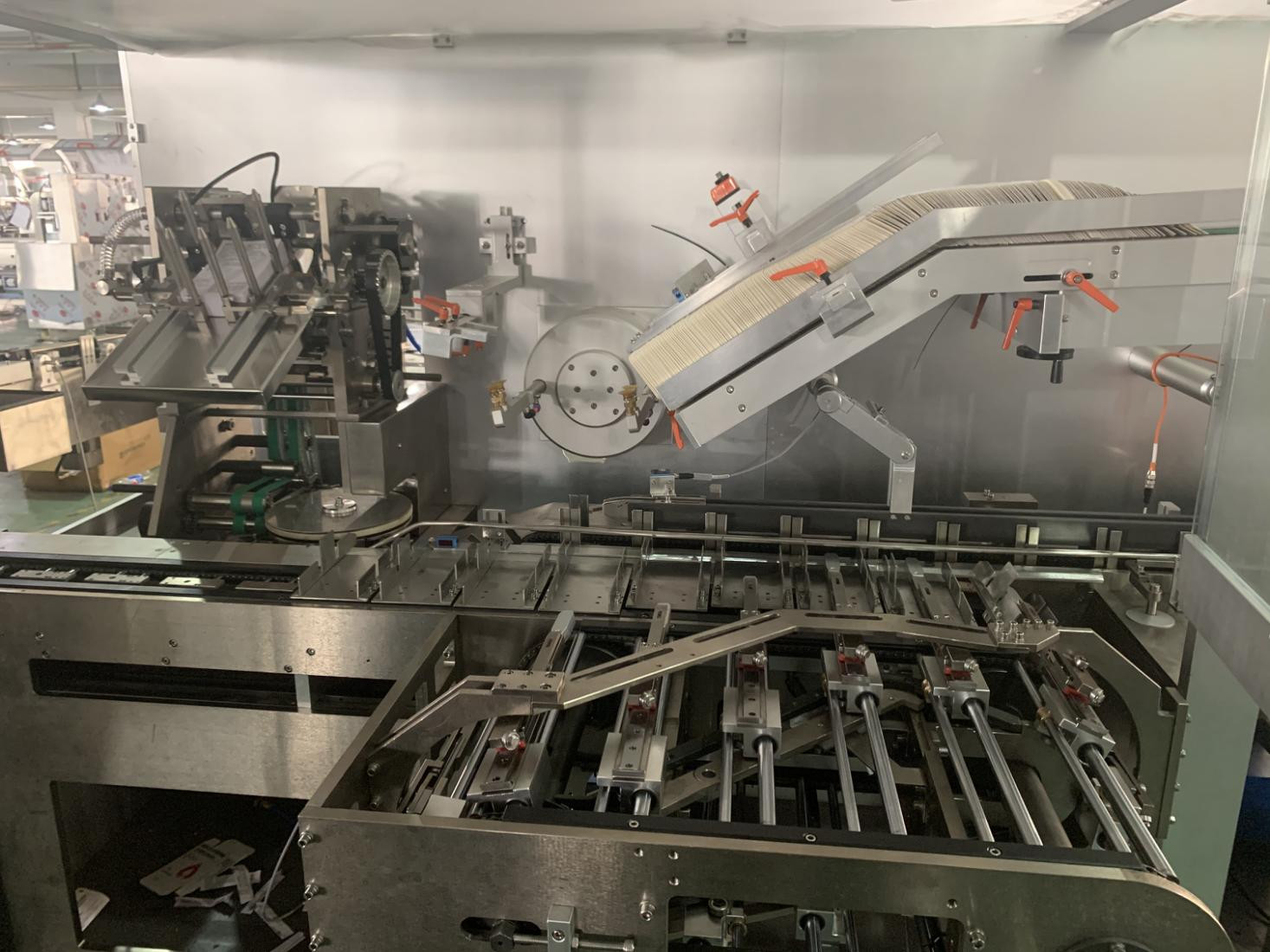

VPD120 Fully automatic Cartoning Machine
Product Features
This product is a new type of equipment which is further improved and perfected by our company based ont the advanced technology at home and abroad electricity, gas, light integration of high-tech products. This product is suitable for medicine, food, cosmetics, and the packing of similar articles, with automatic folding of operation instructions, automatic opening of cartons, packing of articles printing batch number, sealing bos and other functions(also applicable to hot melt adhesive). The machine can be used alone or connect with other equipment to be a complete set of production line.
Standard Features
1. Touch screen controls
2. PLC program
3. Japan OMRON electric parts (inverter, PLC, touch screen...)
4. Germany SICK photocell
5. Different sizes are available in one machine
6.Without products, carton will be not sucked down
7.Auto display trouble, alarm and count finished product
8.Overload protection
Optional Function
1.Auto conveyor
2.Other brand like SIEMENS (inverter, PLC, touch screen)
3.Print batch number or date on carton box
4.Switzerland ROBATECH hot melt glue
| Main Technical Parameter | ||
| Item/model | Model:VPD120 Fully automatic Cartoning Machine | |
| Packing speed | 30-120 box/min | |
| Box | Quality requirement: 250-450g/㎡ (according to its dimension to confirm) | |
| (70-250)mm*(50-120)mm*(20-90)mm (can be customized) | ||
| Working pressure | ≥0.6mpa | |
| Air consumption | 20m³/h | |
| Power supply | 380V 50hz | |
| Motor power | 1.5KW | |
| Machine size | 3800*1350*1900mm(L*W*H) | |
| Machine weight | 1500Kg | |
Certifications
Our Exhibition
Packing & Delivery
Any questions about the machine, please contact with me.
1.what's the delivery time?
it's about 30days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 14 years.
4.what about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.
5.What information should i let you know if i want to get a quotation?
--Quantity
--What's the bag size?
--What's the unfold wipe size ?
--What's the folding way ?
--how many ml of each bag?
--What's the inner material and outter material ?
6.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
