AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min

AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min

Large Image :  AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min

Product Details:
Place of Origin: CHINA
Brand Name: HIJ/TRUSTAR
Certification: CE
Model Number: VPD120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seathworthy wooden cases
Delivery Time: It depends.
Payment Terms: T/T
Supply Ability: It depends.

AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min

Description
Condition: New After-sales Service Provided: Video Technical Support,Online Support,Free Spare Parts
Application: Commodity,Food,Medical Warranty: 1 Year
High Light:

PVC Blister Box Packing Machine

,

AISI 304 Box Packing Machine

,

180pcs/Min Automatic Box Packing Machine





AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 0

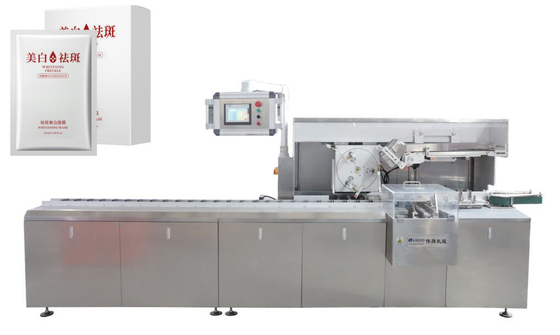

VPD120 Fully automatic Cartoning Machine





Product Features

This product is a new type of equipment which is further improved and perfected by our company based ont the advanced technology at home and abroad electricity, gas, light integration of high-tech products. This product is suitable for medicine, food, cosmetics, and the packing of similar articles, with automatic folding of operation instructions, automatic opening of cartons, packing of articles printing batch number, sealing bos and other functions(also applicable to hot melt adhesive). The machine can be used alone or connect with other equipment to be a complete set of production line.



Standard Features

1. Touch screen controls

2. PLC program
3. Japan OMRON electric parts (inverter, PLC, touch screen...)
4. Germany SICK photocell
5. Different sizes are available in one machine

6.Without products, carton will be not sucked down

7.Auto display trouble, alarm and count finished product

8.Overload protection





Optional Function

1.Auto conveyor

2.Other brand like SIEMENS (inverter, PLC, touch screen)

3.Print batch number or date on carton box

4.Switzerland ROBATECH hot melt glue





Main Technical Parameter
Item/model Model:VPD120 Fully automatic Cartoning Machine
Packing speed 30-120 box/min
Box Quality requirement: 250-450g/㎡ (according to its dimension to confirm)
(70-250)mm*(50-120)mm*(20-90)mm (can be customized)
Working pressure ≥0.6mpa
Air consumption 20m³/h
Power supply 380V 50hz
Motor power 1.5KW
Machine size 3800*1350*1900mm(L*W*H)
Machine weight 1500Kg







AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 1



Certifications
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 2
Our Exhibition
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 3
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 4
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 5
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 6
Packing & Delivery
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 7
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 8
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 9
AISI 304 Automatic Box Packing Machine PLC Controlled 120 box/Min 10

Any questions about the machine, please contact with me.


1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 14 years.

4.what about the payment term ?

Mostly 30%T/T in advanced,the rest need paid before shipping.

5.What information should i let you know if i want to get a quotation?

--Quantity

--What's the bag size?

--What's the unfold wipe size ?

--What's the folding way ?

--how many ml of each bag?

--What's the inner material and outter material ?

6.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
