Auto 3D Film Wrapping Packing Machine With Tear Tape For BOPP PVC

  • Auto 3D Film Wrapping Packing Machine With Tear Tape For BOPP PVC
  • Auto 3D Film Wrapping Packing Machine With Tear Tape For BOPP PVC
Place of Origin China
Brand Name Vippai
Certification CE
Model Number TMB-300
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case of shipping
Delivery Time 30 days
Payment Terms T/T L/C
Supply Ability 30sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Commodity,Food,Medical Warranty 1 Year
Diameter Of Bore 75mm Noise <69dB(A)
Color Customize
High Light

Auto 3D Film Wrapping Packing Machine

,

BOPP Film Wrapping Packing Machine

,

75mm Bore Film Wrapping Packing Machine
Leave a Message
Product Description

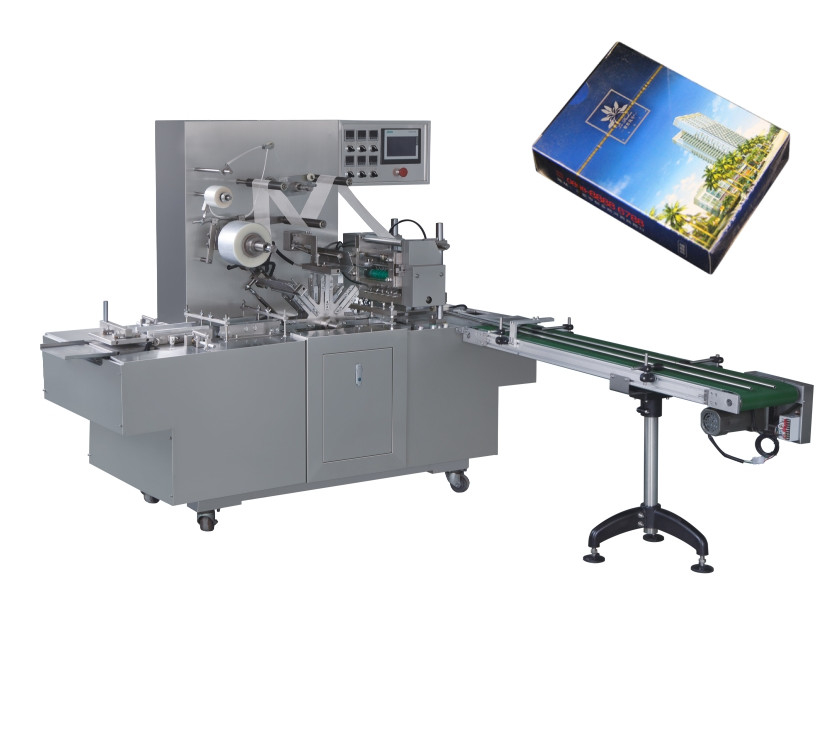

TMB-400B Automatic Cellophane wrapping Machine





The main features

1. Automatic feeding, conveying, stacking, coating, forming, sealing, counting, etc..

2. The machine can be used independently or can be used as an automatic production line with laser marking machine, cartoning Machine etc..

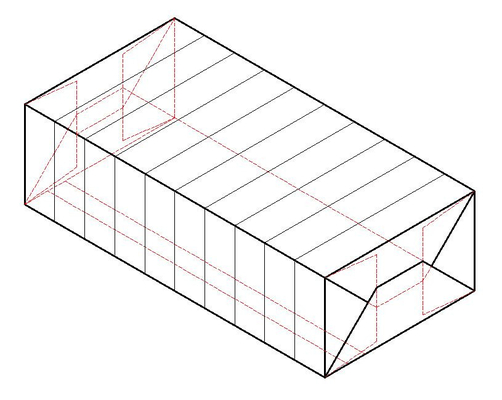

3.The use of folding angle packaging make it more perfect and improve anti-counterfeiting ability

4. In the packaging process, when supplying box, the machine can automatically turn on; otherwise stop when there is no box.

5. Simple operation, the packaging form can be customized. and the size can be adjusted in the range of packaging.

6. Measuring instrument and apparatus are in accordance with the legal measurement units

7. The machine has compact structure, advanced performance, stable running, high efficiency, energy saving, stepless speed regulation.



Auto 3D Film Wrapping Packing Machine With Tear Tape For BOPP PVC 0



Parameters:

Model TMB-400B
Speed of Packing (10-30)packing boxes per minute
Packing size range(mm) Length(400-80)×Width(280-50)×Height(120-30)mm

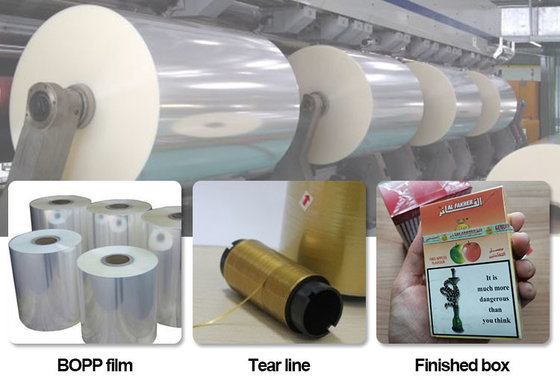

Packing film BOPP, PVC
Thickness 0.021-0.028mm
Width Based on the dimension of box
Sealing temperature 100-150℃
Power supply 50HZ/AC380V
Total power 3.5KW
Working pressure ≥0.3MPa
Integrated noise <69dB(A)
Dimensions 1800-850-1200mm
Weight of machine 600kg



Electrical components :

No. Name model Qty remark
1 frequency converter 1.5KW/230V single phase 1 Delta
2 small circuit breake C32N-1P-10A 6 Schneider
3 miniature relay MY2N-J-5A/24V 3 Omron
4 relay module PLC amplify board/N-4 1 hengxing
5 power module NES-50-24 1 MEAN WELL,TAIWAN
6 Emergency stop ZB2BS54C/ red 1 Schneider
7 button ZB2BZflush button green,red, 2 Schneider
8 power switch HZ12-25/04 1 changjing
9 touch screen 7062kx 1 Kunluntongtai
10 PLC S7-200 1 simens
11 temperature module EMAT04 1 simens
12 proximity switch KM12-04N 6 YANGMING,TAIWAN
13 Pushing cylinder MA25*150/S 1 koegel
14 Side sealing cylinder MA20*30/S/CA 1 koegel
15 Bottom sealing cylinder MA16*10 1 koegel
16 Forming cylinder SDA32*10D 1 koegel
17 Main motor CH750-25B 1 shengbang

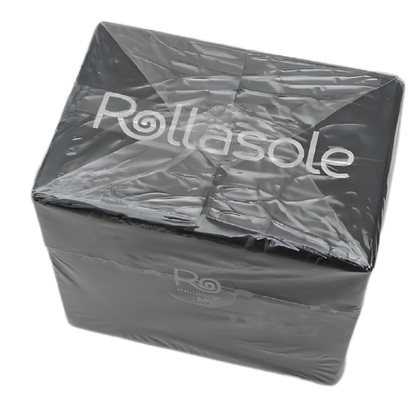

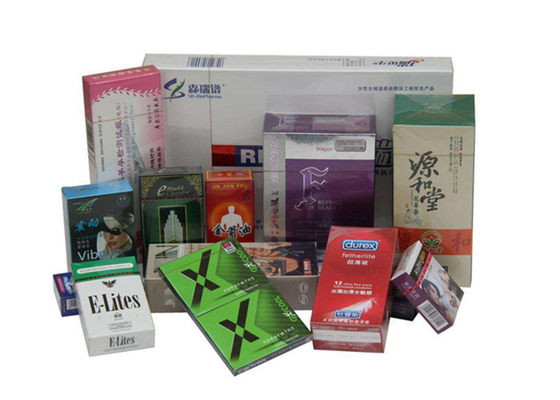

Samples for your reference:

Auto 3D Film Wrapping Packing Machine With Tear Tape For BOPP PVC 1
