Small Box firm Wrapping Machine High Configuration Low Energy Consumption

quality Small Box firm Wrapping Machine High Configuration Low Energy Consumption factory
quality Small Box firm Wrapping Machine High Configuration Low Energy Consumption factory
quality Small Box firm Wrapping Machine High Configuration Low Energy Consumption factory
quality Small Box firm Wrapping Machine High Configuration Low Energy Consumption factory

Basic Properties

Place of Origin:CHINA
Brand Name:HIJ/TRUSTAR
Certification:CE
Model Number:TMB-300B

Trading Properties

Minimum Order Quantity:1
Price:Negotiable
Standard Packaging:Seathworthy wooden cases
Delivery Time:It depends.
Payment Terms:T/T
Supply Ability:It depends.
Specifications
Packing Material: BOFF & PVC Film Operation Process: Feeding, Conveying, Starcking, Coating, Forming, Sealing, Counting
Working Pressure: ≥0.3MPa Integrated Noise: <69dB(A)
Optional Parts: PLC, Servo Motor Thickness: 0.021-0.028mm
Highlight

automatic cellophane wrapping machine

,

cellophane overwrapping machine

,

cellophane packaging machine
Product Description

Small Box firm Wrapping Machine High Configuration Low Energy Consumption 0

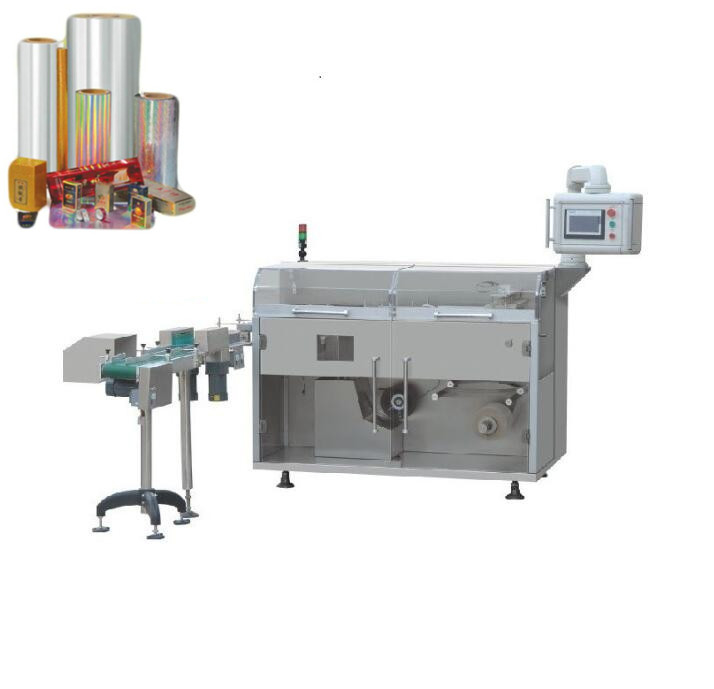

Full Automatic 3D Film Packing machine



Parameters:

Model TMB-300E
Speed of Packing (10-30)packing boxes per minute
Packing size range(mm) Length(350-80)×Width(240-40)×Height(125-15)mm

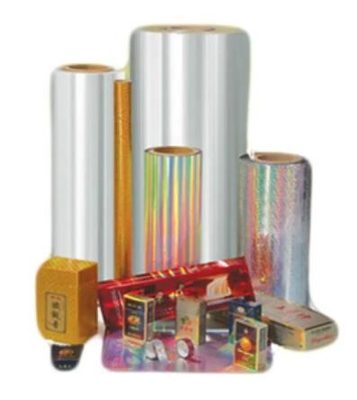

Packing film BOPP, PVC
Thickness 0.021-0.028mm
Width Based on the dimension of box
Sealing temperature 100-150ºC
Power supply 50HZ/AC380V
Total power 3.5KW
Working pressure ≥0.3MPa
Integrated noise <69dB(A)
Dimensions 1800-850-1200mm
Weight of machine 500kg





Introduction:

This machine is widely used in food, electronic accessories, cigarettes, cosmetics, condoms etc. For single box or integrated packaging production lines. It's well received in customers from all of the world. Because of its good performance.



The main features

1. Automatic feeding, conveying, stacking, coating, forming, sealing, counting, etc..

2. The machine can be used independently or can be used as an automatic production line with laser marking machine, cartoning Machine etc..

3.The use of folding angle packaging make it more perfect and improve anti-counterfeiting ability

4. In the packaging process, when supplying box, the machine can automatically turn on; otherwise stop when there is no box.

5. Simple operation, the packaging form can be customized. and the size can be adjusted in the range of packaging.

6. Measuring instrument and apparatus are in accordance with the legal measurement units

7. The machine has compact structure, advanced performance, stable running, high efficiency, energy saving, stepless speed regulation.



Any questions about the machine, please contact with me.
1. what's the delivery time?
it's about 45days

2. how many container request for this machine
suggest ship by LCL.

3. Are you a manufacturer?
Yes,We have been majored in packaging machinery over 13 years.



Certifications
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 1
Our Exhibition
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 2
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 3
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 4
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 5
Packing & Delivery
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 6
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 7
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 8
Small Box firm Wrapping Machine High Configuration Low Energy Consumption 9

Any questions about the machine, please contact with me.


1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 14 years.

4.what about the payment term ?

Mostly 30%T/T in advanced,the rest need paid before shipping.

5.What information should i let you know if i want to get a quotation?

--Quantity

--What's the bag size?

--What's the unfold wipe size ?

--What's the folding way ?

--how many ml of each bag?

--What's the inner material and outter material ?

6.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
