Product Details:
|
Certification:: | CE,GMP | Application: | Skin Care Product |
---|---|---|---|
Voltage: | 380V 50HZ,3 Phause(customizable) | Speed: | 40-60 Bags/min |
Function: | Filling ,sealing And Print | After-sales Service: | Engineers Available To Service Machinery Overseas |
Highlight: | make mask machine,face mask manufacturing machine |

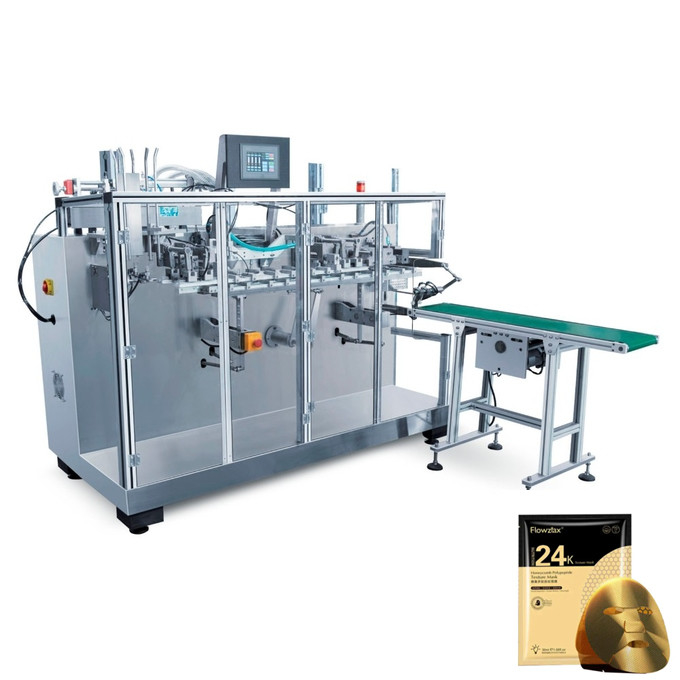

VPD200 Horizontal Type Giving Bag Packing Machine
Functions:
Putting the premade bags in the bag box→ Robort arm pick the bag one by one→ open the bag(the machine will automatic tracking those bags which not opened, these bags can be collected and used again)→Bag top side Sealing→ Embossing date/batch(Max 35 characters)→Conveyor belt transport the finished bag.
Main Features
It is suitable for quantitative packaging of mask, wet towel, granule , powder and other objects. Automatic feeding, metering, filling and sealing, printing date, the whole process of conveying and discharging. It has high precision and efficiency. The sealing is firm, smooth and beautiful. Suitable for kinds of specifications prefabricated bags, such as four side sealing bags, special-shape bags, self-supporting bags, etc.
Main Technical Parameter | ||
Item/model | Model:VPD200 Horizontal Type Giving Bag Packing Machine | |
Packing material | Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film. | |
Bag Size | L:80-200mm , W:100-200mm (L*W) | |
Bag shape |
Square bag, rectangular bag and parts of irregular shape bag |
|
Add liquid range | 3-30ml Essence Fluid ; precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp) | |
Produce speed | 40-60 bags/min | |
Power supply | Three-phases four wires 380V 50/60Hz 3.5Kw | |
Weight | 1000KG | |
Machine Size | About 2450mm×1080mm×1800mm (L*W*H) | |
Air pressure | 0.6-1.0Mpa Consumption>0.4m³/min |
Machine Details:
