Product Details:
|
Banding Speed: | 15-25pcs/min | Banding: | PE Film(width 30-80mm, Thickness At 30-80um) |
---|---|---|---|
Total Power: | 1.5kW | Air Pressure: | 0.06-0.08Mpa |
Conveyor Size: | 1300x250x800mm | Main Machine: | 1100x800x1600mm |
High Light: | automatic cellophane wrapping machine,cellophane overwrapping machine,cellophane packaging machine |

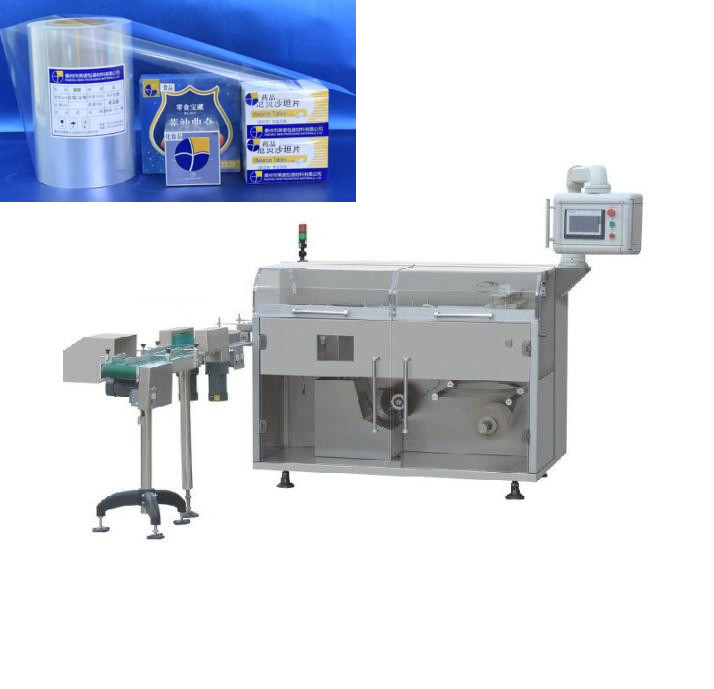

Full Automatic 3D Film Packing machine
Parameters:
Model | TMB-300E |
Speed of Packing | (10-30)packing boxes per minute |
Packing size range(mm) | Length(350-80)×Width(240-40)×Height(125-15)mm |

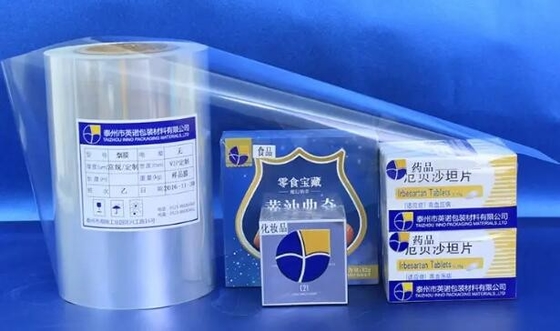

Packing film | BOPP, PVC |
Thickness | 0.021-0.028mm |
Width | Based on the dimension of box |
Sealing temperature | 100-150ºC |
Power supply | 50HZ/AC380V |
Total power | 3.5KW |
Working pressure | ≥0.3MPa |
Integrated noise | <69dB(A) |
Dimensions | 1800-850-1200mm |
Weight of machine | 500kg |
Introduction:
This machine is widely used in food, electronic accessories, cigarettes, cosmetics, condoms etc. For single box or integrated packaging production lines. It's well received in customers from all of the world. Because of its good performance.
The main features
1. Automatic feeding, conveying, stacking, coating, forming, sealing, counting, etc..
2. The machine can be used independently or can be used as an automatic production line with laser marking machine, cartoning Machine etc..
3.The use of folding angle packaging make it more perfect and improve anti-counterfeiting ability
4. In the packaging process, when supplying box, the machine can automatically turn on; otherwise stop when there is no box.
5. Simple operation, the packaging form can be customized. and the size can be adjusted in the range of packaging.
6. Measuring instrument and apparatus are in accordance with the legal measurement units
7. The machine has compact structure, advanced performance, stable running, high efficiency, energy saving, stepless speed regulation.
Any questions about the machine, please contact with me.
1. what's the delivery time?
it's about 45days
2. how many container request for this machine
suggest ship by LCL.
3. Are you a manufacturer?
Yes,We have been majored in packaging machinery over 13 years.
