Product Details:
|
| Produce Speed: | 30-120 Bags/min | Warranty: | One Year |
|---|---|---|---|
| Carton Paper: | 250~300g/m2 | Packaging Type: | Case |
| Condition: | New | Showroom Location: | None |
| High Light: | mask making equipment,mask pack machine |
||
Introduction:
The machine is a new model developed by our company combining advanced technology at home and abroad. It’s a high-tech product integrating light, electricity, gas and machinery, greatly improving the performance and working efficiency, realizing the requirement of fast packing, and keeping stable and reliable state when running fast.
This machine is suitable for automatic feeding and packing of food, medicine, daily chemicals, entertainment, hardware and other goods. The automatic feeding mechanism is easy to adjust, the number of boxes to be packed can be set arbitrarily on the operation screen. The whole process of on-line material testing, indentation batch number, paper tongue packaging at both ends of paper box (also applicable to hot melt adhesive), material shortage elimination and finished product output is completed automatically.
Feature:
PLC automatic control system, transducer, electrical components are international famous brand.
Use man-machine interface operating system.
Automatically stop when machine is overload.
Automatically reject the product lacking of package and manual.
Automatically display trouble, alarm and count finished products.
Stable performance and easy operation.
Main technical parameters:
| Cartoning speed |
65 cartons/ min (according to the speed of the tube filling machine) |
|
| Carton | Quality requirements | 250-350g/㎡ (depend on the size of the carton) |
| Dimension range (L×W×H) | (100-185) mm× (30-70) mm× (25-45) mm | |
| Leaflet | Quality requirements | 60-70 g/㎡ |
| Unfolded size range (L×W) | (80-250)㎜×(90-170)㎜ | |
| Folding range (L×W) | 1-4 (Fold) | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 380V 50HZ | |
| Main motor power | 1.5kw | |
| Dimension (L×W×H) | 3100mm×1100mm×1550mm | |
| Machine net weight | About 1400kg | |

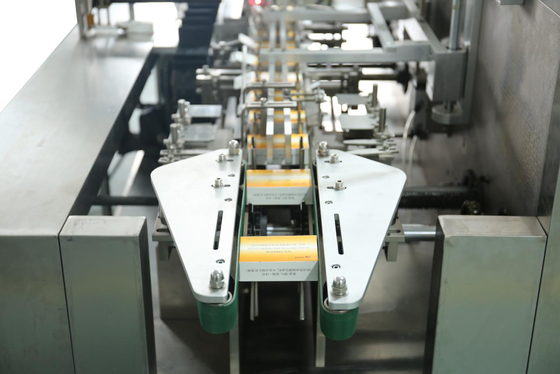

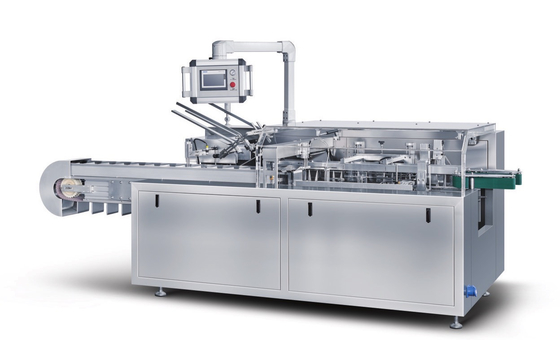

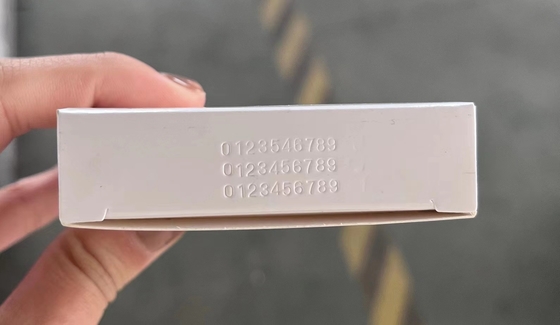

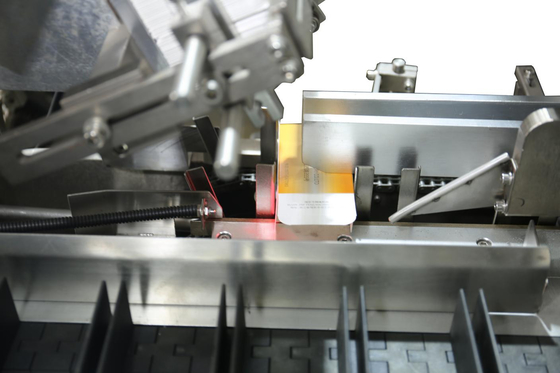

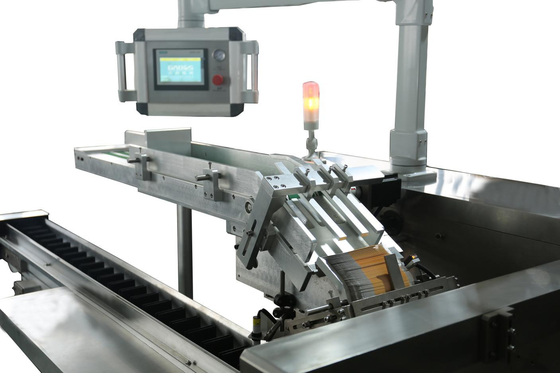

Details Photos:
1.what's the delivery time?
it's about 30 working days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
