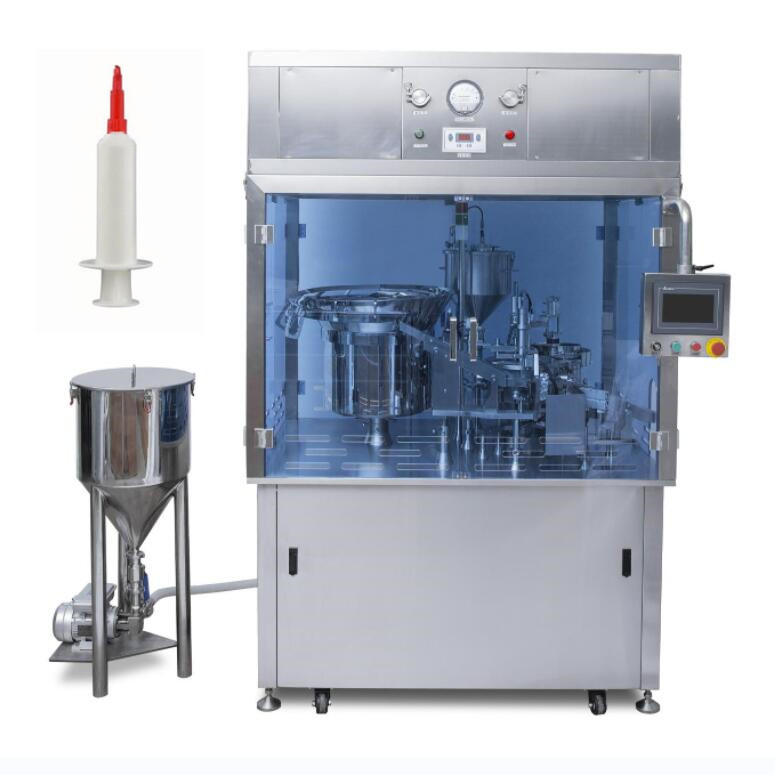

Disposable Project Line Factory Customized Syringe Filling Machine Line

This machine is our newly-design machine which used for filling plastic syringe. It can handle different material like gel,liquid and paste. The main fuction is:Loading syringe-Filling from bottom-Loading cap-Screwing cap-Output. It is easy to use but can meet your demand for higher production.

Feature

● This product is widely used for filling and capping all types of plastic syringes, special types can be customized.

● All surfaces are made of AISI 304 stainless steel, and all contact parts are made of AISI 316L stainless steel and medical silicone rubber, which fully comply with GMP specifications.

● Ceramic piston pump to achieve quantitative filling, acid and alkali corrosion resistance, wear resistance to high temperature, high filling accuracy.

● The use of internationally renowned electrical components, the implementation of non-interference modular control, synchronous action is all controlled by servo motor to complete, the implementation of automatic filling and stuffing, accurate and reliable, easy to operate.

* Optional automatic replenishment system, using liquid level sensing, automatic replenishment when lack of material.
* Optional hundred-level laminar flow hood to achieve high-demand clean production.

Packing Material	Liquid and cream
Applicable syringe size	0.5-80ml
Filling accuracy	≤±1-2%
Number of Syringe	1
Production Capacity	1800-2100 pc/h
Total Power	3KW
Voltage	380V/220V 50-60Hz
Compressed air	0.55-0.75Mpa 20L/S
Overall dimensions	L1230×W850×H1800mm
Machine Weight	500KG

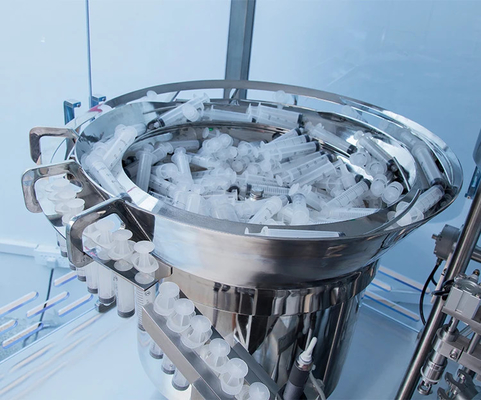

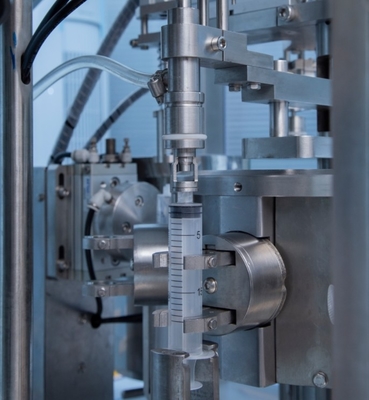

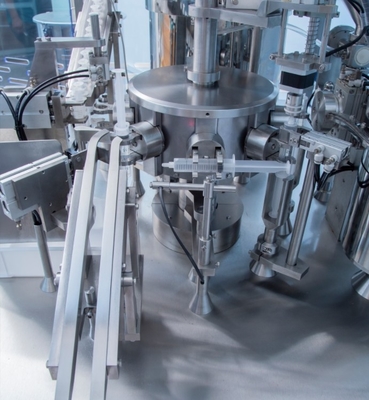

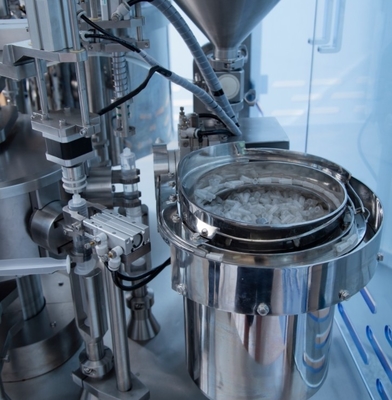

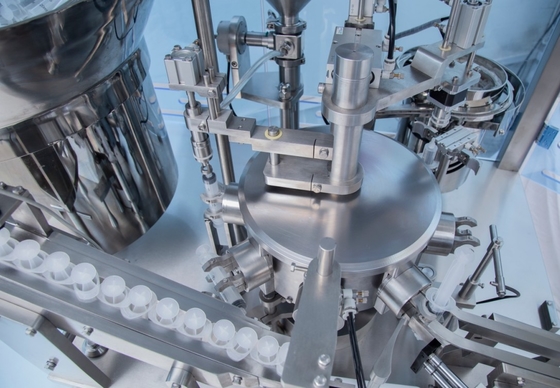

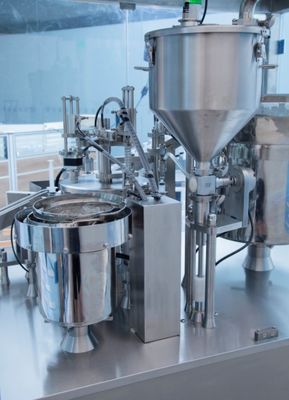

Machine Details

Finished Product Display

Certificate

Company profile

WENZHOU TRUSTAR MACHINERY TECHNOLOGY CO.,LTD is a professional pharmaceutical/food/comestic packaging machinery manufacturer and supplier, our product included pharmaceutical machinery seriescomestic field, and foodstuff packaging machinery series and cartoning box packaging machine series. We strive in this field more than ten years. We supply good quality machines for our domestic and abroad customers, and supply timely and thoughtful service, and supply complete validation documents, and we also can supply total solution for you in pharmaceutical field foodstuff packaging field and comestic fiedl. You are always welcome to cooperate with us!

Q&A



1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?

Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
