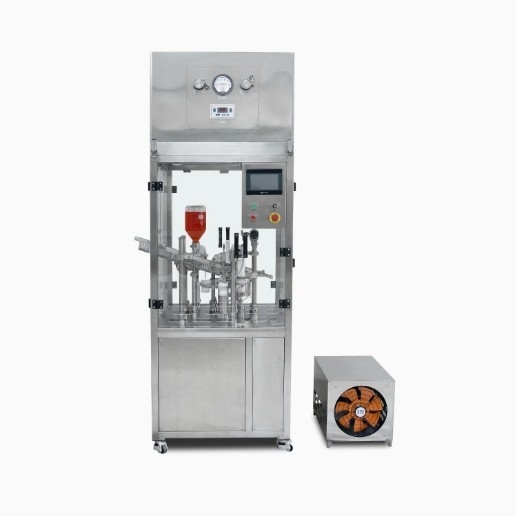

Automatic Glass Syringe Filling Machine Hyaluronic Acid Gel Syringe Filling Machine
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
HIJ-GZB100
Product Details
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
HIJ-GZB100
Minimum Order Quantity:
1 SET
Price:
Negotiable
Standard Packaging:
Seaworthy wooden cases
Delivery Time:
It depends. Usually it takes about 45 working days.
Payment Terms:
T/T
Supply Ability:
10 set/month
Specifications
Speed:
600-800 P/h
Warranty of core components:
1 Year
Packaging material:
Glass
Power:
2KW
Power supply:
220V/380V, 50HZ
Machine weight:
300kg
Machine size:
808*758*1760mm
After-sales service:
Provided
Highlight:
Automatic Glass Syringe Filling Machine
,Glass Syringe Filling Machine
Product Description
Product Description
This product is specially designed by our company for the filling of prefilled syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is easy to operate, and is equipped with intelligent detection devices. It has high automation, high work efficiency and easy maintenance. It is an ideal equipment for filling and plugging prefilled syringes.
Function

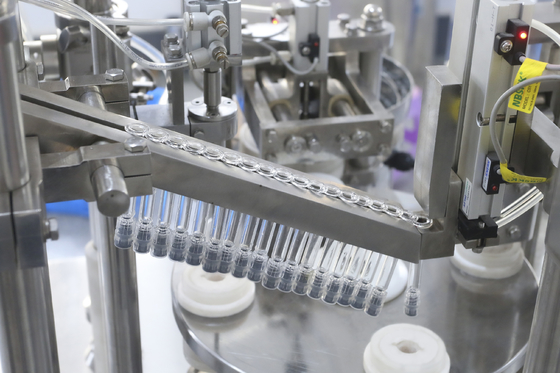

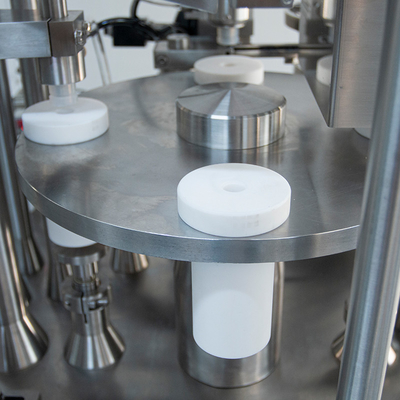

- Put the syringe honeycomb on the special fetal membrane manually, and hang the syringe on the bottle comb plate together with the fetal membrane at one time, and then automatically enter the filling dial row by row from the slide. The dial rotates intermittently and feeds at a time. Insert a syringe into the dial wheel and turn it to the corresponding work station.

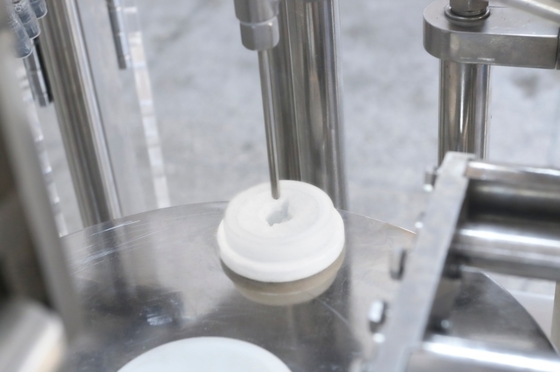

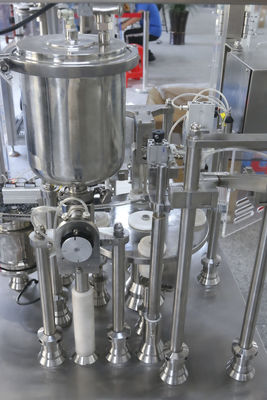

- Syringe filling: the syringe is brought to the filling station by the dial, a single filling needle is inserted into the syringe and rises while filling, and the syringe is sealed at the same time for vacuum during filling. The filling pump uses a special gel ceramic pump Filling.

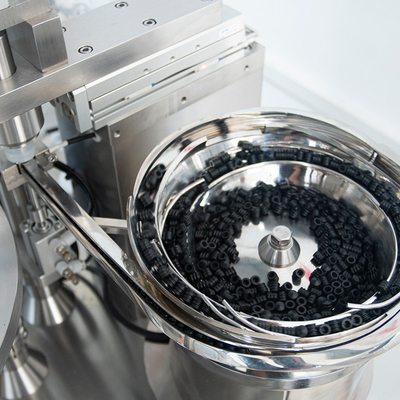

- Vacuum stoppering of the syringe: the filled syringe is rotated by the dial to the stoppering station. The rubber stopper is arranged by the oscillator and sent to the top of the syringe through the stopper track. A stopper rod first takes the rubber stopper on the stopper rod On the upper side, the stopper rod is integrated with a vacuum body, and at the same time, the syringe is pressed down to seal and vacuum, and then the stopper rod is added to the liquid level of the syringe.
- The finished product comes out: the finished syringe after filling and stoppering can be collected manually after being suspended and slipped out by a chute
Specification
| Applicable Materials | Liquid and ointment |
| Applicable Syringe Specifications | 0.5,1,2.25,3,5,10ML |
| Number of Filling Heads | 1 |
| Number of Capping Heads | 1 |
| Filling Accuracy | ≤±1-2% |
| Production Capacity | 600-720 p/h |
| Total Power | 2KW |
| Voltage | 380V/220V 50-60Hz |
| Compressed Air | 0.55-0.75Mpa 15L/S |
| Dimensions | L808×W758×H1760mm |
| Equipment Weight | 300KG |
Machine Details
Finished Product Display
Q&A
1.what's the delivery time?
it's about 30days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
