Automatic Pre-filled Luer Lock Glass Syringe Filler Plugging Closing Capping Equipment Syringe Vacuum Filling Sealing Machine
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
HIJ-GZB200
Product Details
Place of Origin:
China
Brand Name:
TRUSTAR/HIJ
Certification:
CE
Model Number:
HIJ-GZB200
Minimum Order Quantity:
1 SET
Price:
Negotiable
Standard Packaging:
Seaworthy wooden cases
Delivery Time:
It depends. Usually it takes about 45 working days.
Payment Terms:
T/T
Supply Ability:
10 set/month
Specifications
Speed:
1200-1600 P/h
Warranty of core components:
1 Year
Packaging material:
Glass
Power:
3.5KW
Power supply:
220V, 50HZ
Machine weight:
350kg
Machine size:
L1088×W858×H1800mm
After-sales service:
Provided
Highlight:
Luer Lock Glass Syringe Filler
,Vacuum Filling Sealing Syringe Filler
Product Description
Function
This machine is suitable for the glass syringe with luer lock and can fill like tooth whitening gel and hyaluronic acid.
1. This machine has compact structure, convenient installation and adjustment, overload clutch protection, fault shutdown
protection safe and reliably.
2. Adopt internationally renowned brand electrical components and servo motor combination. Fully automatic control easy to operate accurately and reliably.
3. Valveless rotary piston pump made of 316L or ceramic material with high precision ensures filling accuracy.
protection safe and reliably.
2. Adopt internationally renowned brand electrical components and servo motor combination. Fully automatic control easy to operate accurately and reliably.
3. Valveless rotary piston pump made of 316L or ceramic material with high precision ensures filling accuracy.
This machine is suitable for the above-mentioned components and assembly, filling and sealing, and clamping of syringes.
The machine uses machine-electric integrated technology, and all its main functions are controlled by servo motors. Accurate and reliable, long service life.
The electric control part uses PLC programmable controller, and the control program is stable and reliable.
The control panel is a touch screen all-in-one machine, with a simple and clear interface.
All detection parts use high-precision sensors for fine monitoring, and stoppage occurs when there is no pipe, no cap, and stops the operation of the machine to ensure that no problems occur.
The work of all pipes and stoppers is automated, which greatly improves efficiency and speed.
Specification
| Applicable Materials | Liquid and ointment |
| Applicable Syringe Specifications | 0.5,1,2.25,3,5,10ML |
| Number of Filling Heads | 2 |
| Number of Capping Heads | 2 |
| Filling Accuracy | ≤±1-2% |
| Production Capacity | 1200-1600 p/h |
| Total Power | 3.5KW |
| Voltage | 380V/220V 50-60Hz |
| Compressed Air | 0.55-0.75Mpa 15L/S |
| Dimensions | L1088×W858×H1800mm |
| Total Weight | 350KG |

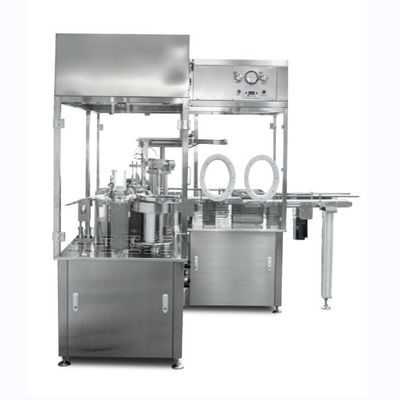

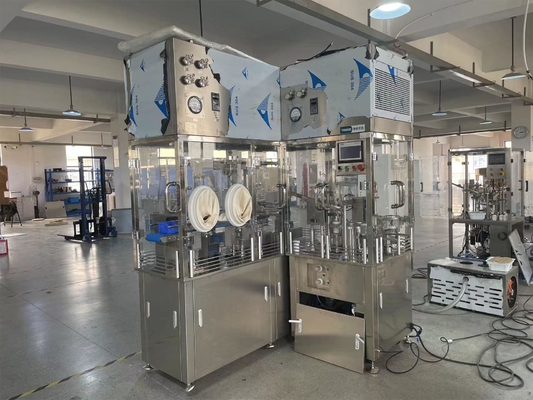

Machine Details
Finished Product Display
Q&A
1.what's the delivery time?
it's about 30days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
