High Accuracy Prefilled Syringe Filling And Plugging Machine 3000 Pcs/Hours

Plastic Syringe Filling and Stoppering Machine issuitable for prefilling various liquid and stoppering ofplastic syringes. Full body 304 Stainless Steel, Pharmaceutical contacted parts is 316L. Highaccuracy, PLC control, servo motors drive, English touchscreen to operate fully automatic. Removal of the boxautomatically, feeding syringe tube automatically, fillingsyringes automatically, organize caps automatically, stoppering automatically, This machine can be equippedwith a laminar hood, tubes transmission, labeling machineto be formed as a multifunctional production line.

Feature

● This product is widely used for filling and capping all types of plastic syringes, special types can be customized.

● All surfaces are made of AISI 304 stainless steel, and all contact parts are made of AISI 316L stainless steel and medical silicone rubber, which fully comply with GMP specifications.

● Ceramic piston pump to achieve quantitative filling, acid and alkali corrosion resistance, wear resistance to high temperature, high filling accuracy.

● The use of internationally renowned electrical components, the implementation of non-interference modular control, synchronous action is all controlled by servo motor to complete, the implementation of automatic filling and stuffing, accurate and reliable, easy to operate.

Applicable materials	Liquid and ointment
Applicable syringe specifications	1-50ml (Different specifications of syringes need to change the mold) (When the filling volume difference is large, the filling pump needs to be replaced)
Filling accuracy	≤±1-2%
Number of injection needles	2 needle
Production capacity	3000-3900 p/h
Total power	8.5KW
Voltage	380V/220V 50-60Hz
Compressed air	0.55-0.75Mpa 20L/S
Dimensions	L×W×H: 3200-1460-1970mm
Equipment weight	900KG





Machine Details



●The syringe filling machine is widely applicable to various types of prefilled plastic syringes, and special types of syringes can also be customized.

●The ceramic plunger pump of syringe filling machine realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.



●The operation of the motor is controlled by the PLC programming controller. The human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.

●Fully automatic operation, automatic feeding, automatic filling, automatic cap arranging and automatic capping.



●The syringe filling machine adopts internationally renowned electrical components and implements interference-free modular control. Synchronous actions are all controlled by servo motors, which are accurate and reliable and easy to operate.

●A variety of filling doses and filling methods are available.





●The method of filling the syringe head can eliminate the air inside the syringe to the greatest extent and improve the

qualification rate.

●Modular design, easy to locate, easy to expand, can be used as a stand-alone machine or connected to hoist,
assembly machine, rotary rod machine, labeling machine and other equipment to form a production line.

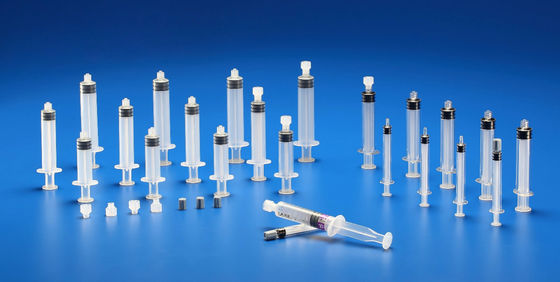

Finished Product Display





Q&A



1.what's the delivery time?

it's about 30days

2.how many container request for this machine

suggest ship by LCL.

3.Are you a manufacturer?

Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?

Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?

--17 years experience:We have been in making machinery for 17 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply:Our team will reply you soon.

--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
