Product Details:
|
Packing Size: | 47*50mm/50*50mm 50*55mm/47*55mm | Packing Speed: | 8 Lanes:800-1500pcs/min 6 Lanes:600-1000pcs/min |
---|---|---|---|
Weight: | 1100kg | Machine Size: | 3800*1200*1800mm |
Power Supply: | 380v 50/60hz 5.5kw | ||
Highlight: | 5.5kw Wet Tissue Packaging Machine,Four Side Seal Tissue Packaging Machine,Alcohol Cotton Pads Packing Machine |

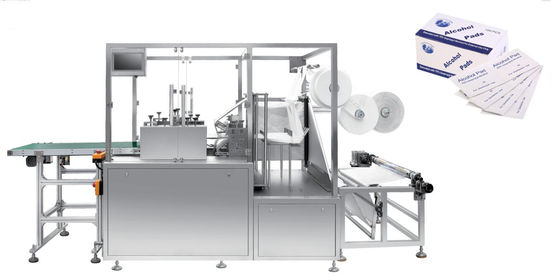

VPD800 High speed full automatic multi-lanes alcohol swabs packing machine
Product Description
We make design of the machine according to the world advanced paper and nonwoven packaging machinery technology, our wet wipes packing machine is suit for the manufacture of moist towelettes in any size and Packaging. but,it need to changed the different heater platens for manufacture different size moist towelettes , so good communication is the first step to letting us know which type wet wipes or what’s the size of the wet wipes you are preparing to produce.
Machine Function:
One big Packing firm roll→cut and fold into half→
Loading 8 non-woven rolls→folding→cutoff→wetting→sealing→bag cut off→output by conveyor belt.
Machine Feature:
VPD800 Main Technical Parameter:
Item/model | Model:VPD800 Multi-lanes Alcohol Swabs Packing Machine |
Suitable product | Alcohol Swabs |
Packing specification | 47*50mm/50*50mm 50*55mm/47*55mm |
Wrapping materials |
Compound film, PAPER/PP/PET/PE/ALUMINUM etc. Max Film Roll Width800mm,Max roll diameter 350mm |
Non-woven Roll |
Non-woven, cotton Max Roll Width480mm,Max roll diameter 600mm |
Non-woven GSM | 30-80g/㎡ Non-woven (Spunlace,Spunbond,cotton) |
Packing speed | 8 lanes:800-1500pcs/min 6 lanes:600-1000pcs/min |
Liquid range | Suggest 0~1ml Alcohol(depends on the material) |
Power supply | 3 Phase 380V 50/60Hz5.5Kw |
Machine weight | 1100KG |
Machine Details:
