Product Details:
|
Cutting Speed: | 6-25 Times/min | Power Supply: | 380V/50Hz 3-phase 4-wire |
---|---|---|---|
Stroke Range: | 40-200mm | Max. Forming Area: | 245*200*26mm |
Air Pump Volume Flow: | ≥0.36 M³/min | Key Word: | Hydrogel Facial Mask Filling Sealing Machine |
Machine Size: | 5000*720*1650mm | Machine Weight: | About 2000kgs |
High Light: | hydrogel facial mask filling sealing machine,100mm Hydrogel Mask Packing Machine,Eye Patch Blister Filling machine |

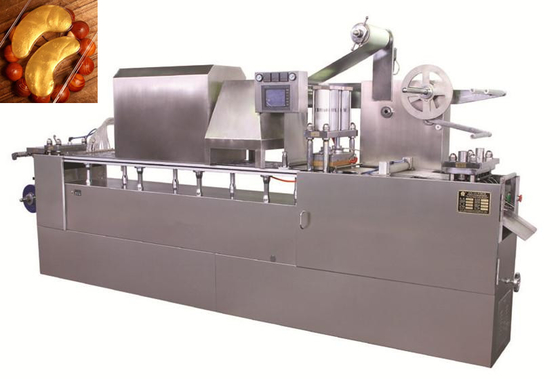

DPP-250 Flat Plate Facial Mask or Eye Patch Blister Packing Machine
Machine Description
This is the new type machine, which was improved and designed on the basis of overseas equipment advantage to meet domestic and overseas cosmetic special packaging requirement. This machine can meet crystal facial mask, eyes pads, nose pack, pleura etc gel material, perfume material packaging requirement.
This machine adopt PLC, Human-Interface operation control, adopt servo dragging control, accuracy and steady. With high dispose, all electric component adopt brand product, all appearance adopt 304SS, the parts contact with material adopt innocuity and corrosion resisting material, two layers working table, closed mechanic inner side, safety humanization and intelligentize design, each station layout beautiful, conforms to GMP Standard and CE Certificate. It’s advanced first-level equipment in daily chemicals industry.
Parameters:
Item | Parameter | |
Cutting speed | 6-25times/min | |
Power supply | 380V/50Hz 3-phase 4-wire | |
Stroke range | 40-200mm | |
Max. Forming area | 245*200*26mm | |
Upper forming power | 1.2kW | |
Lower forming power | 1.2kW | |
Heat sealing heating power | 1.5kW | |
Motor power | 1.5kW | |
Air pump pressure | 0.6-0.8MPa | |
Air pump volume flow | ≥0.36m3/min | |
Packing material (thickness*width) | Medicine PVC | 0.25*250mm |
Alu foil | 0.15*250mm | |
Heating Alu | 0.02*250mm | |
Overall dimension (L*W*H) | 5000*720*1650mm | |
Weight | About 2000kgs | |
Material tank weight | 300kgs | |
100L tank size (L*W*H) | 626*670*1975mm |
