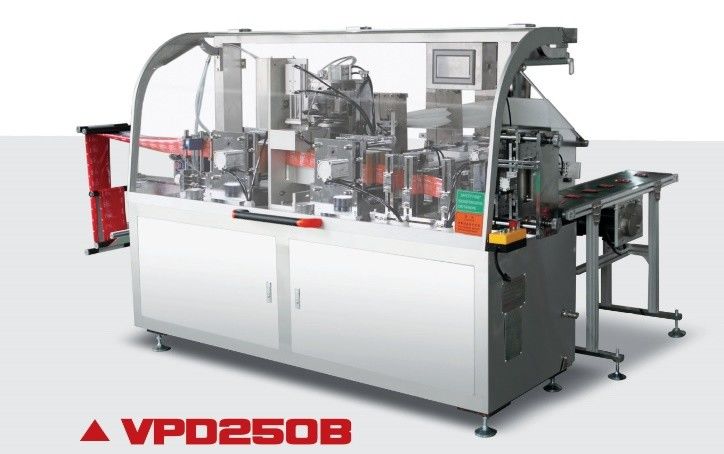

Automatic Lens OPP Wipes Packing Machine Tissue Phone Screen Cleaning

Fully Automatic Alcohol Packaing Production Equipment Non Woven Cloth Feedign

• Product Description:

1, The machine work steadily and continiously, It is suitable for four-side sealing products of all types wet wipes/tissue, alcohol swabs/pad etc.
2, Single bag or two bags in row can be setted freely (Max four bags in row for alcohol swabs).
3, Full automatic pouch forming, photo electricity correction, no blank edge and fault forming
4, The tissue can be folded in different types. max 10 folding vertical, and 4 folding horizontal, fold freely by unfold nonwoven width, length.
5, Adopts Japan imported spray pump, make it accurate adding with tolerance of 0.01ml/time. Multical kinds of liquid are available. it can add per liquid per bag or add all the liquid in the same bag
6, Double times sealing better to ensure the liquid adding volume and avoid leaking.
7, The machine is easy to operate, PLC touch panel, could adjust the packing temperature and speed according to the packing material,product's thickness and length. servo motor. controlled by light, electric and air power, failures can be self- diagnosised and displays clearly.
8, The full machine is covered with Stainless steel in good appearance, also easy to clear and durable. Low operation and maintenance cost.
9, The Confined glass cover, to avoid contamination , less noise !
10, The Sealing molds is made by aluminum alloy , have a very high thermal shock resistance, do not thermal deformation.

• Technical:

• Main Technical Parameter
  Item/Model		Model:250
  Packaging Form		Horizontal Four-side sealing
  Packing Material		PET/AL/PE,PET/AL/CPP,PAPER/PE/AL/PE,PET/PE,BOPP/PE/AL/PE
  Packing Specification		Length 40-140mm(Max220mm)
  		Width   40-100mm
  Folding way		Max 10 folding vertical and 4 folding horizontal
  Packing speed		100-180 bags/minute
  Total power		4.8KW
  Power supply type		220V 50/60Hz
  Machine noise		≤64.9dB(A)
  Air supply		0.6-1.0 MPa
  Air consumption		300-500L/min
  Outline dimensions(L*W*H)		3500*2600*1800mm
  Machine weight		1100Kg





  Factory Workshop:

• Samples:

• ​​Working Diagram
