Product Details:
|
| Wrapping Materials: | PET, OPP,BOPP /AL/ PE, CPP | Mask Material: | 30~80g/m2 Spun Non-woven/pearl Film/hot Roll Non-woven/silk |
|---|---|---|---|
| Packaging Type: | Bags | Automatic Grade: | Automatic |
| Speed: | 800-1200 Bags/min | Key Selling Points: | High Productivity |
| Voltage: | 3phases 380V 50/60Hz | Driven Type: | Electric |
| High Light: | SS Facial Mask Packing Machine,CPP Facial Mask Packing Machine,100bags/Min Facial Mask Packing Machine |
||
Machine Function:
One big Packing firm roll→cut and fold into half→
Loading 8 non-woven rolls→folding→cut off→wetting→sealing→bag cut off→output by conveyor belt.
Machine Feature:
1. Color touch screen operation interface; Adopt servo drive system; PLC programmable controller intelligent control machine operation, accurate
Send film, stable transmission of cotton sheet, precise bag.
2. Inlet liquid pump, filling amount directly set on the touch screen.
3. Four-side sealing bag making, 8-column bag making, tight sealing, no leakage, no bubbling under the premise of high liquid filling, smooth and beautiful sealing.
4. All stainless steel non-woven fabric unwinding, folding, slicing structure, products clean up to medical standards.
5. Using high-sensitivity cursor electric eye to accurately track and locate the film color block, effectively eliminate the phenomenon of deflection in the film rolling process.
6. The whole area is small, the machine runs stably, the equipment adds batch number, easy to tear the function.
7. Lifting film, easy to operate and use.
VPD800 Main Technical Parameter:

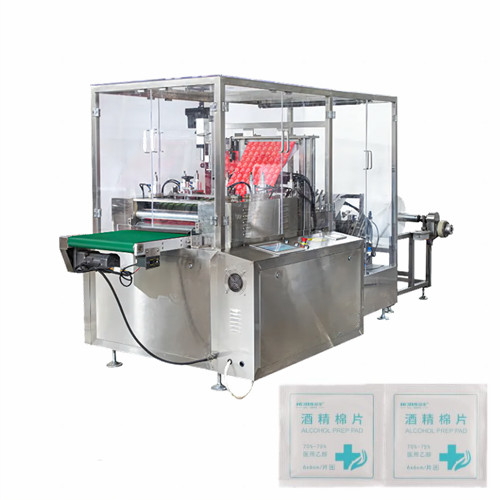

| Item/model | Model:VPD800 Multi-lanes Alcohol Swabs Packing Machine |
| Suitable product | Alcohol Swabs |
| Packing size | Width:40-110mm, Length:40-140mm |
| Wrapping materials | Composite film, aluminized film, polyethylene/ polypropylene and other composite materials |
| Liquid added range | 0-3ml |
| Non-woven GSM | 30-80g/㎡ Non-woven (Spunlace,Spunbond,cotton) |
| Packing speed | 500-1200pcs/min |
| Power supply | 380V 50/60Hz 13Kw |
| Machine size | 4300*2100*1700mm |
| Machine weight | 1900KG |
1.what's the delivery time?
it's about 30 working days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
