Product Details:
|
| Sachet Type: | 3 Or 4 Side Sealing | Packing Speed: | 80-120bags/min |
|---|---|---|---|
| Wet Tissue Material: | Non-woven, Spun Lace Non-woven Fabric Etc | Power Supply Type: | 220V 50Hz/380V 60Hz |
| High Light: | 130bags/min Wet Tissue Paper Making Machine,80Bags/Mins Wet Tissue Paper Making Machine |
||

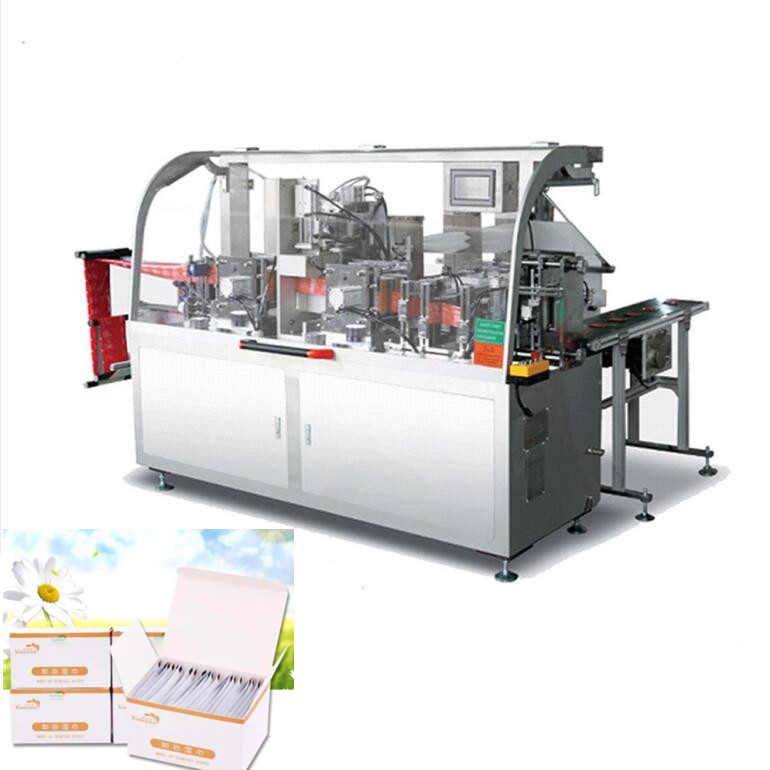

| Item/model | Model:VPD250-B wet tissue packing machine |
| Packaging form | Horizontal Four-side sealing/ three side sealing |
| Packing specification | Length: 50mm-125mm width:50mm -110mm |
| Wrapping materials | Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film. |
| Max.ext. dia & Int.diameter | Max exterior diameter of film 350mm , Internal diameter 75mm ; |
| Wet Tissue Material | 30-80g/m2 air laid paper, non-woven, spun lace non-woven fabric etc |
| Max.ext. dia & Int.diameter | Max exterior diameter 1000mm, Internal diameter 75mm ; |
| Folding way | Max 10 folding vertical, and 4 folding horizontal |
| Inner size(unfold tissue) | Length: 40mm-220mm width:30mm -240mm |
| Packing speed | 80-130 bags/mins |
| Liquid added range | 0-10ml [precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)] |
| Installed power | 10KW (total power about 2.8KW) |
| Power supply type | Single phase two wires 220V/ Three phase four wires 380V 50/60Hz |
| Machine finishing | Stainless Steel |
| Control panel | Colour touch-screen (Language On request) |
| Output |
Packing arm will collect the products and put it onto the conveyor, the number Of the stacks,it can be adjusted and set on the control panel. |
| Machine noise | ≤64.9dB(A) |
| Air supply | 0.6-1.0 Mpas |
| Air consumption | 300-500L/min(w-1.0/10 air compression machine is needed) |
| Machine dimensions | L2800×W2800×H1800mm |
| Machine weight | 1100Kg |
| Package size | Plywood cases 3160*1080*1900mm one case only |
