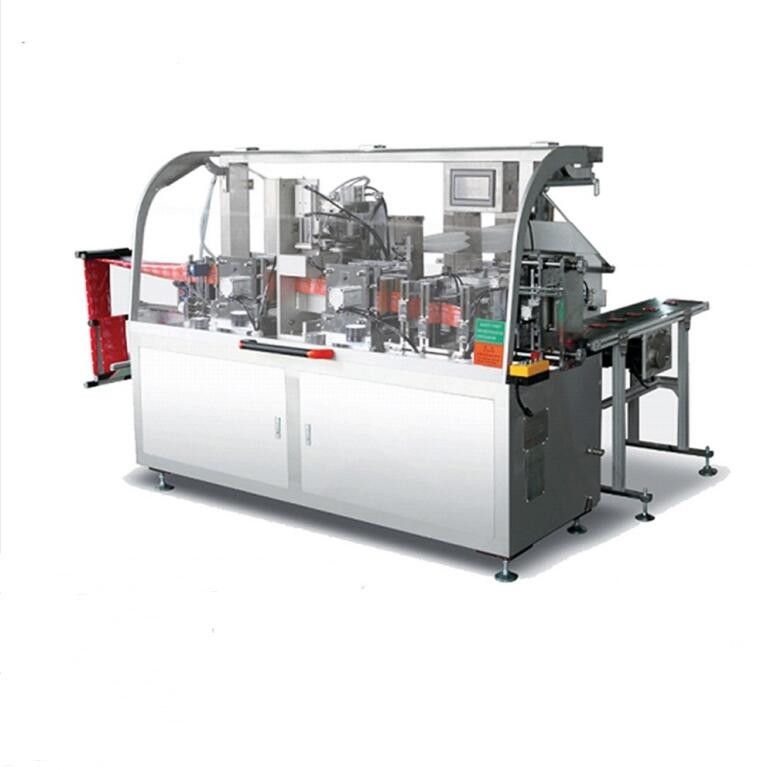

Fully Automatic Wet Wipes Production Line / Wet Wipes Making Equipment

Place of Origin China
Brand Name Vippai
Certification CE
Model Number HY-200
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case of shipping
Delivery Time 30 days
Payment Terms T/T L/C
Supply Ability 30sets/month
Product Details
Packing Film OPP/PE, PET/PE Power 6KW
Product Speed 150-200pcs/min(subject To The Packing Film) Size Of Raw Material (150-250)×1000 (mm,W*DIA)
Net Weight 1500 Kg Suitable Raw Material Air Laid Paper, Spunlace/hot-rolling Nonwoven Fabric
Wet Tissue Unfolded Size (140~250)×(150~250) (mm,L×W) Wet Tissue Folded Size (70~125)×(45-80) (mm,L×W)
High Light

single sachet wet wipes machine

,

wet tissue paper making machine

Leave a Message
Product Description

High Configure Fully Automatic Wet Wipes Making Equipment Customized



Auto Control Functions:

1. Temperature auto controlling. Each unit adopted individual digital temperature indicator.

2. Each data is set on requirement to meet different consumption. The real time temperature can be fed back to the PLC and displayed at interface screen.

3. Electrical control system consists of main circuit system, second circuit control system, temperature control system, tension control system, PLC system and other auxiliary parts.

4. Product conveying: Adopted imported convey belt driven. The friction coefficient can be auto profit adjusted at low or high speed to ensure whole line in consistent situation and good products.





Main Technical Parameter:
1. Power supply:380V 50HZ Power:7KW
2. Suitable Raw material:air laid paper, spunlace/hot-rolling nonwoven fabric
3. Size of raw material :(150-250)×1000 (mm,W*DIA)
4. Weight of raw material::40-80g/㎡
5. Wet tissue unfolded size : (140~250)×(150~250) (mm,L×W)
6. Wet tissue folded size : (70~125)×(45-85) (mm,L×W)
7. Packing film:OPP/PE, PET/PE
8. Production speed:150-200 pcs/min(base on packing film material)
9. Net Weight :2000 kg
10. Size of machine : 5600*1000*1650 (mm,L×W ×H)


HY-200 single/double Spare part list
Item Specification Size(mm) Qty
1 Cutter blade(up) 6×35×100 2pcs
2 Cutter blade(down) 10×25×100 1pcs
3 green round belt φ5 8meters
4 Central sealing wheel Ø110×Ø50×42mm(H) 2pcs
5 Edge sealing heating pipe Ø8×150 4pcs
6 Edge sealing blade(up) 4×23×130 2pcs
7 Edge sealing blade(down) 4×23×130 1pcs
8 taper belt 600×25(L×W) 2pcs
9 thermocouple with teeth 4pcs
10 Main engine foot (big) M20 14pcs
11 encode timing belt 3M*228*5mm 1pcs
12 tool box with tools 1set
