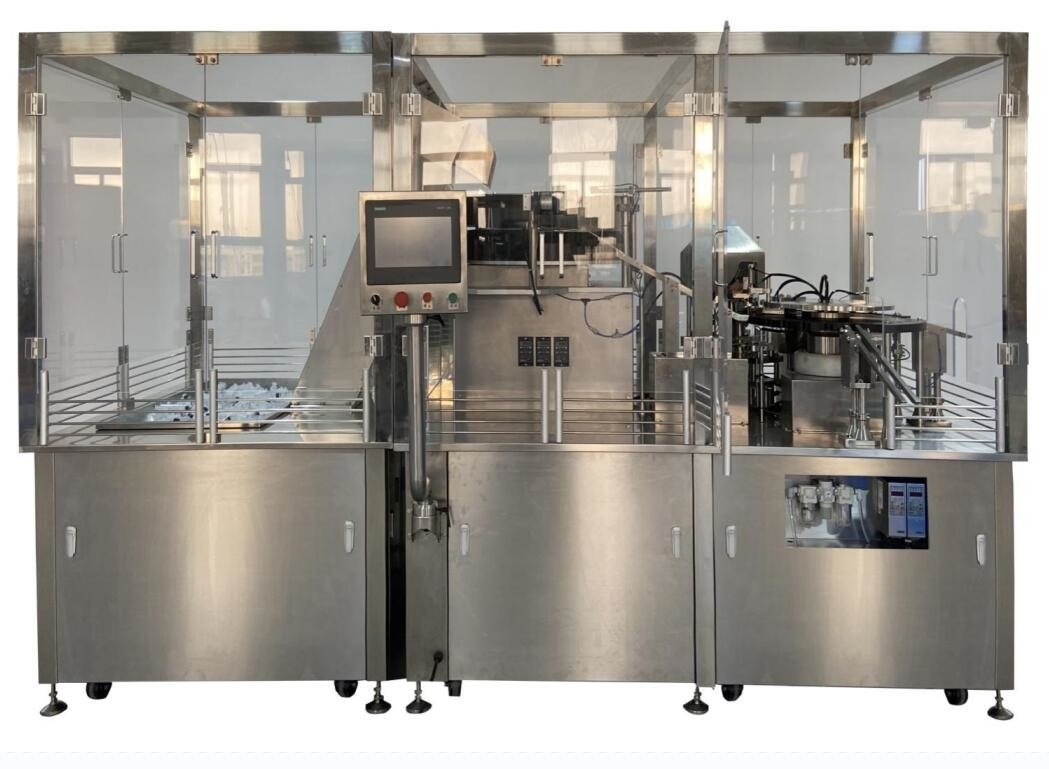

Automatic Plastic Disposable Prefilled Syringe Gel Filling Capping Machine
Basic Properties
Trading Properties
| Advantage: | Easy To Operate | Model: | Automatic |
|---|---|---|---|
| Filling Material: | Injection | Warranty: | One Year, Life Time Service |
| Production Capacity: | 3000-3900 P/H | Touch Screen: | 7 Inch |
| Machine Size: | 3200-1460-1970mm | Material: | Stainless Steel |
| Driven Type: | Electric | Power Supply Type: | 380V（220V） 50/60Hz |
| Power: | 8.5kw | Compressed Air: | 0.55-0.75Mpa 20L/S |
| Highlight | wet wipes manufacturing machine,wet wipes making machine |
||
Plastic Syringe Filling and Stoppering Machine issuitable for prefilling various liquid and stoppering ofplastic syringes. Full body 304 Stainless Steel, Pharmaceutical contacted parts is 316L. Highaccuracy, PLC control, servo motors drive, English touchscreen to operate fully automatic. Removal of the boxautomatically, feeding syringe tube automatically, fillingsyringes automatically, organize caps automatically, stoppering automatically, This machine can be equippedwith a laminar hood, tubes transmission, labeling machineto be formed as a multifunctional production line.
Feature
● This product is widely used for filling and capping all types of plastic syringes, special types can be customized.
● All surfaces are made of AISI 304 stainless steel, and all contact parts are made of AISI 316L stainless steel and medical silicone rubber, which fully comply with GMP specifications.
● Ceramic piston pump to achieve quantitative filling, acid and alkali corrosion resistance, wear resistance to high temperature, high filling accuracy.
● The use of internationally renowned electrical components, the implementation of non-interference modular control, synchronous action is all controlled by servo motor to complete, the implementation of automatic filling and stuffing, accurate and reliable, easy to operate.
Specification
| Applicable materials | Liquid and ointment |
| Applicable syringe specifications |
1-50ml (Different specifications of syringes need to change the mold) (When the filling volume difference is large, the filling pump needs to be replaced) |
| Filling accuracy | ≤±1-2% |
| Number of injection needles | 2 needle |
| Production capacity | 3000-3900 p/h |
| Total power | 8.5KW |
| Voltage | 380V/220V 50-60Hz |
| Compressed air | 0.55-0.75Mpa 20L/S |
| Dimensions | L×W×H: 3200-1460-1970mm |
| Equipment weight | 900KG |

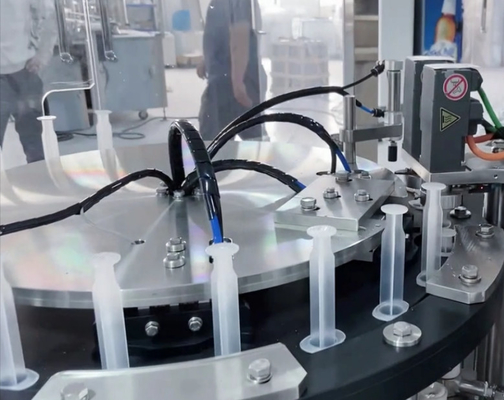

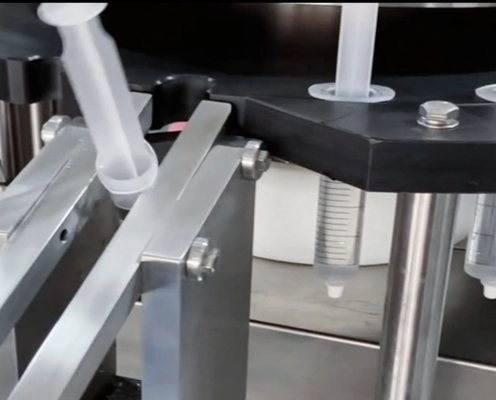

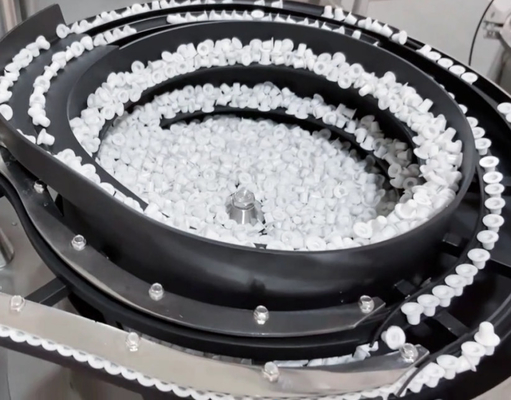

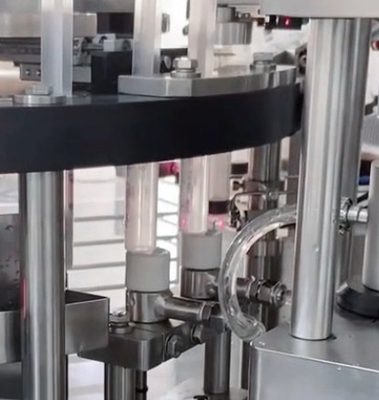

Machine Details
Finished Product Display
Company profile
Q&A
1.what's the delivery time?
it's about 30days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
