Automatic Cartoning Machine for Pharma Food Beverage 80 BoxesMin

Large Image : Automatic Cartoning Machine for Pharma Food Beverage 80 BoxesMin

Product Details:

Place of Origin:	China
Brand Name:	TRUSTAR/HIJ
Certification:	CE
Model Number:	WZTS-130

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Seaworthy wooden cases
Delivery Time:	It depends.
Payment Terms:	T/T
Supply Ability:	It depends.

Contact Now

Automatic Cartoning Machine for Pharma Food Beverage 80 BoxesMin

Description

Features:	Automatic Carton Forming, Opening, Filling, Sealing, And Batch Number Printing	Application:	Food, Beverage, Commodity, Medical, Chemical,
Packaging Material:	Paper	Driven Type:	Electric
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory	Machine Weight:	1400kg
Power Supply:	220V/380V, 50Hz/60Hz	Packaging Detail:	Normal Export Wooden Case
Working Noise:	<75dB	Orgin:	Zhejiang,China
Function:	High Efficiency	Output:	Max.80 Boxes/min
Automatic Grade:	Automatic
Highlight:	automatic cartoning machine for pharma , high-speed cartoning machine 80 boxes/min , cartoning machine for food and beverage

Pharmaceutical Blister Cartoning Machine Automatic Carton Packing Machine

Product Specifications

Application	Food, Beverage, Commodity, Medical, Chemical
Packaging Material	Paper
Driven Type	Electric
Applicable Industries	Manufacturing Plant, Food & Beverage Factory
Machine Weight	1400kg
Power Supply	220V/380V, 50Hz/60Hz
Packaging Detail	Normal Export Wooden Case
Features	Automatic carton forming, opening, filling, sealing, and batch number printing
Working Noise	<75dB
Origin	Zhejiang, China
Function	High Efficiency
Output	Max. 80 boxes/min
Automatic Grade	Automatic

Product Overview

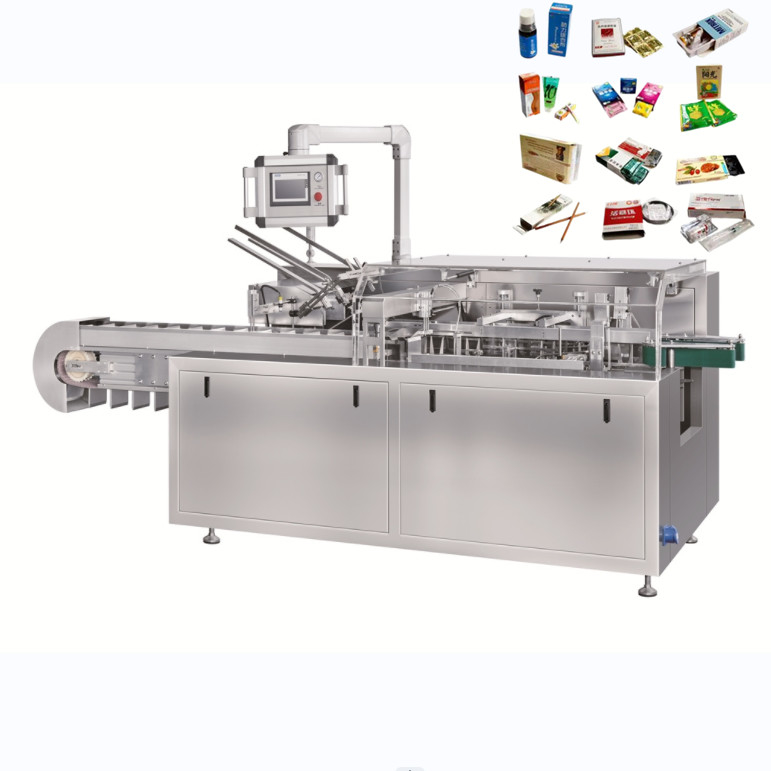

This automatic cartoning machine is a horizontal type box packing machine developed through extensive research of domestic and international leading technologies. Combining electrical, pneumatic, and mechanical systems, this high-tech equipment delivers superior production performance and operational efficiency for rapid cartoning applications.

Key Features

PLC control system with international brand components
User-friendly HMI touch screen interface
Automatic overload protection system
Quality control with automatic rejection of empty cartons
Error display, alarm system, and product counting
Stable performance with simple operation
Automatic batch number printing
Mechanical or hot melt glue sealing options

Applications

Ideal for pharmaceutical, food, cosmetics, and auto parts industries. Capable of packing blisters, bottles, jars, sachets, bags, plastic tubes, aluminum tubes, and various other products into cartons.

Technical Parameters

Cartoning Speed	65 cartons/min (dependent on tube filling machine speed)
Carton Quality Requirements	250-350g/㎡ (varies by carton size)
Carton Dimension Range (L×W×H)	(100-185)mm × (30-70)mm × (25-45)mm
Leaflet Quality Requirements	60-70 g/㎡
Leaflet Size Range (Unfolded L×W)	(80-250)mm × (90-170)mm
Folding Range	1-4 folds
Compressed Air Requirements	≥0.6mpa, 120-160L/min consumption
Power Supply	380V 50HZ
Main Motor Power	1.5kw
Machine Dimensions (L×W×H)	3100mm × 1100mm × 1550mm
Machine Net Weight	Approximately 1400kg

Detailed Photos

Frequently Asked Questions

What's the delivery time?

Approximately 30 working days

How many containers are required for this machine?

Suggested shipment by LCL (Less than Container Load)

Are you a manufacturer?

Yes, we have specialized in packaging machinery manufacturing for over 17 years

What are your payment terms?

Standard terms: 40% T/T in advance, balance paid before shipping

Our Advantages

17 years of specialized machinery manufacturing experience
Global customer base with international shipping experience
CE certified equipment meeting international standards
Responsive customer service team
Comprehensive after-sales support and spare parts service
