Applicaction:
It is suitable for ALU-PVC blister, ALU-ALU blister and similar product.
It is suitable for packing sachet, condom, adhesive bandage, soft alu strip, plaster, coffee bag and similar product.
It is suitable for medicine bottle (round bottle, flat bottle), eyedropper bottle and similar product.
It is suitable for soap, toothpaste, soft tube, pillow product, hardware and similar product.
Instruction and features:
This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
1. The box packing machine is a set of opening, loading, folding, sealing boxes as one, suitable for a variety of materials box packing machine.
2. This equipment can replace the workload of 3-6 workers.
3. The frame and the parts that contact the material are all made of high quality stainless steel and aluminum, the surface has been polished, the appearance is beautiful and generous, strong and durable.
4. Using intelligent PLC control, the machine movement is more stable and precise, and the maintenance and debugging are more convenient.
5. With multiple detection electric eyes, the positioning is accurate, and the empty box is effectively prevented.
Main technical parameters:
| Cartoning speed |
65 cartons/ min
(according to the speed of the tube filling machine)
|
| Carton |
Quality requirements |
250-350g/㎡ (depend on the size of the carton) |
| Dimension range (L×W×H) |
(100-185) mm× (30-70) mm× (25-45) mm |
| Leaflet |
Quality requirements |
60-70 g/㎡ |
| Unfolded size range (L×W) |
(80-250)㎜×(90-170)㎜ |
| Folding range (L×W) |
1-4 (Fold) |
| Compressed air |
Working pressure |
≥0.6mpa |
| Air consumption |
120-160L/min |
| Power supply |
380V 50HZ |
| Main motor power |
1.5kw |
| Dimension (L×W×H) |
3100mm×1100mm×1550mm |
| Machine net weight |
About 1400kg |

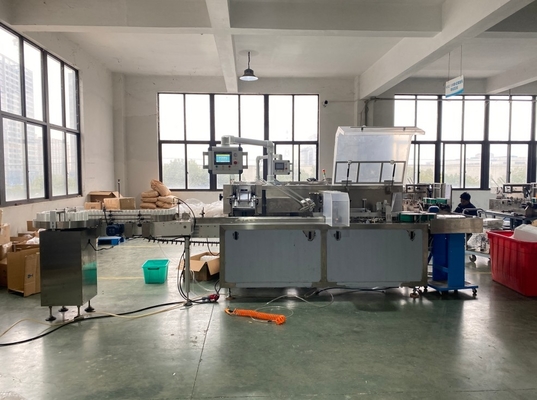

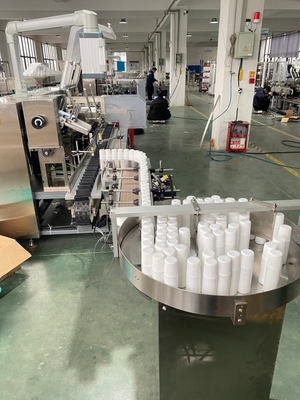

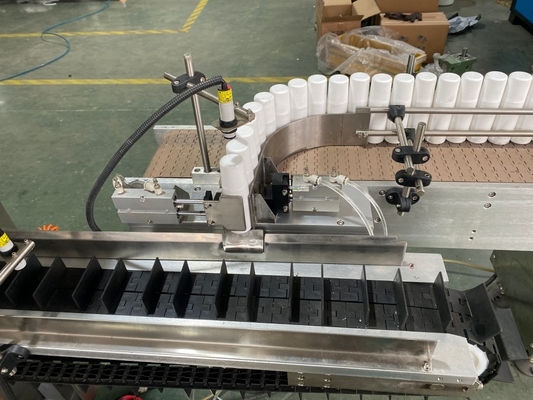

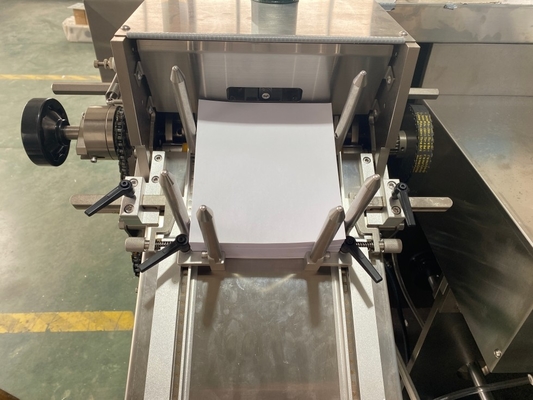

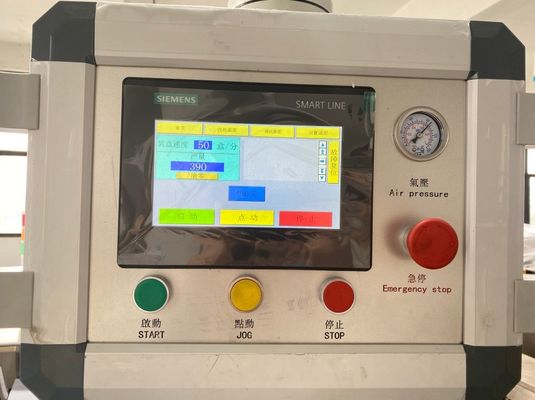

Details Photos:
Q&A:
1.what's the delivery time?
it's about 30 working days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
