Home ProductsAutomatic Facial Mask Making Machine

Automatic Hydrogel Gel Mask Filling Sealing Machine With 200mm Stroke

Automatic Hydrogel Gel Mask Filling Sealing Machine With 200mm Stroke

  • Automatic Hydrogel Gel Mask Filling Sealing Machine With 200mm Stroke
  • Automatic Hydrogel Gel Mask Filling Sealing Machine With 200mm Stroke
Automatic Hydrogel Gel Mask Filling Sealing Machine With 200mm Stroke
Product Details:
Place of Origin: CHINA
Brand Name: VIROO
Certification: CE
Model Number: DPP250
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Cutting Speed: 6-25times/min Power Supply: 380V/50Hz 3-phase 4-wire
Stroke Range: 40-200mm Max. Forming Area: 245*200*26mm
Air Pump Volume Flow: ≥0.36m3/min Key Word: Hydrogel Facial Mask Filling Sealing Machine
High Light:

Hydrogel Gel Mask Filling Sealing Machine

,

200mm Stroke Filling Sealing Machine

,

PLC Filling Sealing Machine



New Type automatic hydrogel facial mask filling sealing machine





Machine Description

   This is the new type machine, which was improved and designed on the basis of overseas equipment advantage to meet domestic and overseas cosmetic special packaging requirement. This machine can meet crystal facial mask, eyes pads, nose pack, pleura etc gel material, perfume material packaging requirement.



   This machine adopt PLC, Human-Interface operation control, adopt servo dragging control, accuracy and steady. With high dispose, all electric component adopt brand product, all appearance adopt 304SS, the parts contact with material adopt innocuity and corrosion resisting material, two layers working table, closed mechanic inner side, safety humanization and intelligentize design, each station layout beautiful, conforms to GMP Standard and CE Certificate. It’s advanced first-level equipment in daily chemicals industry.





Parameters:

Item Parameter
Cutting speed 6-25times/min
Power supply 380V/50Hz 3-phase 4-wire
Stroke range 40-200mm
Max. Forming area 245*200*26mm
Upper forming power 1.2kW
Lower forming power 1.2kW
Heat sealing heating power 1.5kW
Motor power 1.5kW
Air pump pressure 0.6-0.8MPa
Air pump volume flow ≥0.36m3/min
Packing material (thickness*width) Medicine PVC 0.25*250mm
Alu foil 0.15*250mm
Heating Alu 0.02*250mm
Overall dimension (L*W*H) 5000*720*1650mm
Weight About 2000kgs
Material tank weight 300kgs
100L tank size (L*W*H) 626*670*1975mm

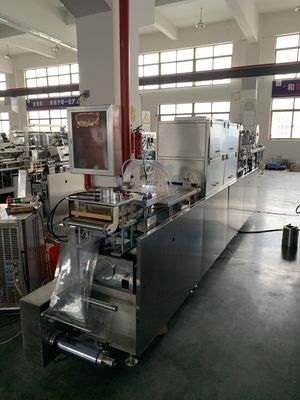

Automatic Hydrogel Gel Mask Filling Sealing Machine With 200mm Stroke 0

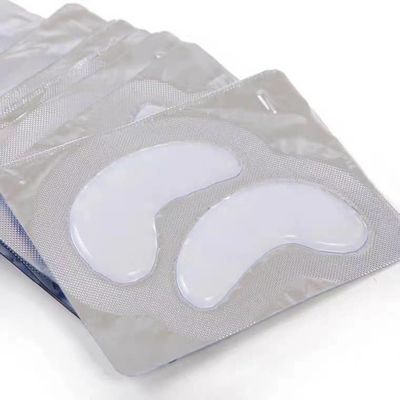

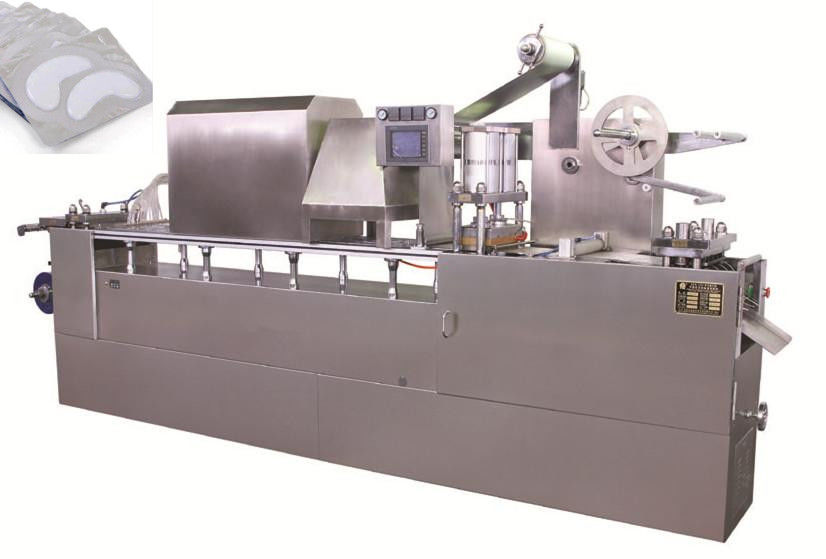

Automatic Hydrogel Gel Mask Filling Sealing Machine With 200mm Stroke 1Automatic Hydrogel Gel Mask Filling Sealing Machine With 200mm Stroke 2
