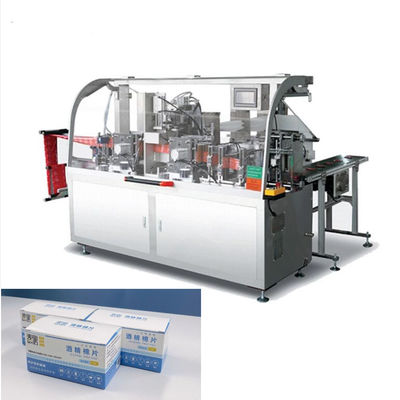

80bags/Min Disinfection Alcohol Pad Packing Machine

80bags/Min Disinfection Alcohol Pad Packing Machine

80bags/Min Disinfection Alcohol Pad Packing Machine
80bags/Min Disinfection Alcohol Pad Packing Machine

Product Details:

Place of Origin: China
Brand Name: VIROO
Certification: CE
Model Number: VPD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 30sets/mon
Contact Now
Detailed Product Description
Inner Size(unfold Tissue): Can Be Customized Packing Speed: 80-120bags/min
Packing Material: Complex Film;Paper/alu/pe Wet Tissue Material: 30-80g/m2 Air Laid Paper, Non-woven, Spun Lace Non-woven Fabric Etc
Machine Weight: 1300kg Sachet Type: 4 Side Sealing
Dimensions: L2800×W2800×H1800mm Air Supply: 0.6-1.0 Mpas
High Light:

80bags/Min Alcohol Pad Packing Machine

,

ODM Alcohol Pad Machine

,

220V Alcohol Pad Packing Machine

Fully Automatic Disinfection Alcohol Pad Packing Machine Wet Wipes Making Machine





Four Sides Sealing Wet Wipe Packaging Machine is designed as automatic production solution for sanitary wet wipes and make-up removing wet wipe and personal care wet wipe. It can be adjustable to fit to various packaging sizes, a perfect choice for OEM and ODM factory who produce different sizes of wet wipe products on one machine.





Features of wet wipes making machines

1.This machine work steadily and continuously, its suitable for the production various kind of four-side sealing products of all types wet wipes/tissue, alcohol swabs/pad and so on.

2.Adopts Japan dosing pump, make it accurate to add liquid into different package with tolerance of ±0.01ml/time. Multiple kinds of liquid are available; it can add per liquid per bag or add all the liquid in the same bag.

3.The machine is easy to operate, with servo motor and PLC touch panel, which can adjust the packing temperature, packing speed and tissue length accordingly. This machine adopts light electrical integration design, with the function of automatic error alarm system and safety instruction signals.

4.The language of the touch screen panel can be special designed according to the buyer.







Item/model Model:VPD250-B wet tissue packing machine
Packaging form Horizontal Four-side sealing/ three side sealing
Packing specification Length: 50mm-125mm width:50mm -110mm
Wrapping materials Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film.
Max.ext. dia & Int.diameter Max exterior diameter of film 350mm , Internal diameter 75mm ;
Wet Tissue Material 30-80g/m2 air laid paper, non-woven, spun lace non-woven fabric etc
Max.ext. dia & Int.diameter Max exterior diameter 1000mm, Internal diameter 75mm ;
Folding way Max 10 folding vertical, and 4 folding horizontal
Inner size(unfold tissue) Length: 40mm-220mm width:30mm -240mm
Packing speed 80-130 bags/mins
Liquid added range 0-10ml [precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)]
Installed power 10KW (total power about 2.8KW)
Power supply type Single phase two wires 220V/ Three phase four wires 380V 50/60Hz
Machine finishing Stainless Steel
Control panel Colour touch-screen (Language On request)
Output

Packing arm will collect the products and put it onto the conveyor, the number

Of the stacks,it can be adjusted and set on the control panel.

Machine noise ≤64.9dB(A)
Air supply 0.6-1.0 Mpas
Air consumption 300-500L/min(w-1.0/10 air compression machine is needed)
Machine dimensions L2800×W2800×H1800mm
Machine weight 1100Kg
Package size Plywood cases 3160*1080*1900mm one case only
