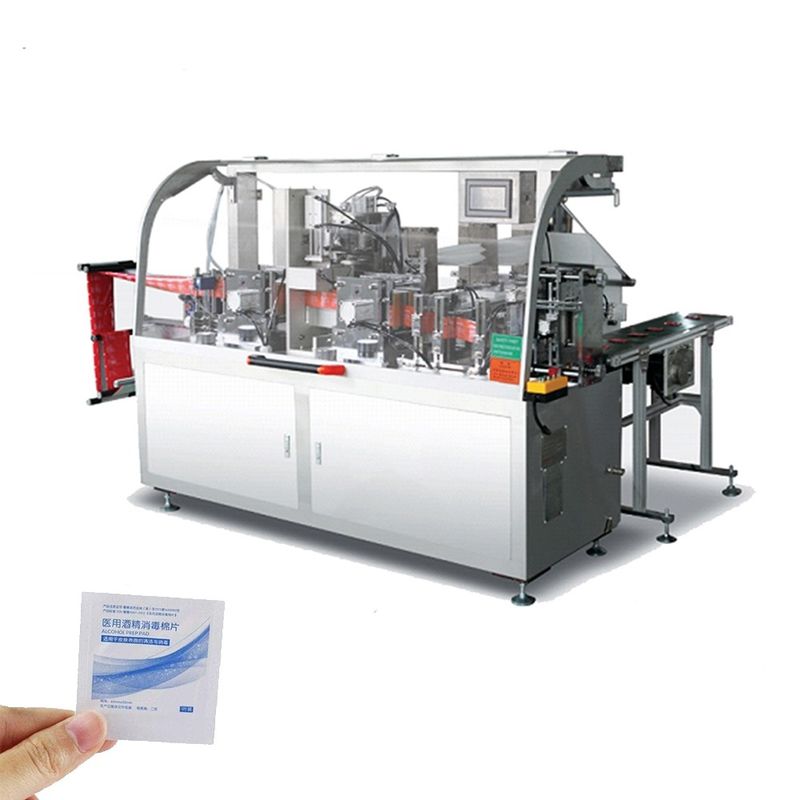

125mm Length 60Bags/Min Alcohol Pad Packing Machine

125mm Length 60Bags/Min Alcohol Pad Packing Machine

125mm Length 60Bags/Min Alcohol Pad Packing Machine
125mm Length 60Bags/Min Alcohol Pad Packing Machine

Product Details:

Place of Origin: China
Brand Name: VIROO
Certification: CE
Model Number: VPD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 30sets/mon
Contact Now
Detailed Product Description
Inner Size(unfold Tissue): Can Be Customized Packing Speed: 60-120bags/min
Packing Material: Complex Film Wet Tissue Material: 30-80g/m2 Air Laid Paper, Non-woven, Spun Lace Non-woven Fabric Etc
Machine Weight: 1300kg Sachet Type: 4 Side Sealing
Dimensions: L2800×W2800×H1800mm Air Supply: 0.6-1.0 Mpas
High Light:

60Bags/Min Alcohol Pad Packing Machine

,

125mm Alcohol Pad Packing Machine

,

Spunlace Alcohol Pad Packing Machine

Single Wet Tissue Packaging Machine High Quality PLC Control Automatic



Product Type: wet wipe, wet tissue, moist wipe, wet pipe

Certification: CE Certificate

Product Type: wet wipe, wet tissue, moist wipe, wet pipe

Sachet Type: 3 or 4 Side Sealing

Packing Material: Complex Film

Filling Capacity: Can Be Adjusted

Usage: Other

After-sales Service Provided: Engineers available to service machinery overseas







Item/model Model:VPD250-B wet tissue packing machine
Packaging form Horizontal Four-side sealing/ three side sealing
Packing specification Length: 50mm-125mm width:50mm -110mm
Wrapping materials Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film.
Max.ext. dia & Int.diameter Max exterior diameter of film 350mm , Internal diameter 75mm ;
Wet Tissue Material 30-80g/m2 air laid paper, non-woven, spun lace non-woven fabric etc
Max.ext. dia & Int.diameter Max exterior diameter 1000mm, Internal diameter 75mm ;
Folding way Max 10 folding vertical, and 4 folding horizontal
Inner size(unfold tissue) Length: 40mm-220mm width:30mm -240mm
Packing speed 80-130 bags/mins
Liquid added range 0-10ml [precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)]
Installed power 10KW (total power about 2.8KW)
Power supply type Single phase two wires 220V/ Three phase four wires 380V 50/60Hz
Machine finishing Stainless Steel
Control panel Colour touch-screen (Language On request)
Output

Packing arm will collect the products and put it onto the conveyor, the number

Of the stacks,it can be adjusted and set on the control panel.

Machine noise ≤64.9dB(A)
Air supply 0.6-1.0 Mpas
Air consumption 300-500L/min(w-1.0/10 air compression machine is needed)
Machine dimensions L2800×W2800×H1800mm
Machine weight 1100Kg
Package size Plywood cases 3160*1080*1900mm one case only






125mm Length 60Bags/Min Alcohol Pad Packing Machine 0125mm Length 60Bags/Min Alcohol Pad Packing Machine 1125mm Length 60Bags/Min Alcohol Pad Packing Machine 2
