380V 50/60Hz Non Woven Mask Machine Customized Mask Shape Eco - Friendly

Place of Origin Zhejiang China
Brand Name Viroo
Certification CE
Model Number VPD-400B
Minimum Order Quantity 1Set
Price Negotiable
Packaging Details wood--8060*3060*2230mm
Delivery Time 40 days
Payment Terms L/C, T/T, Western Union
Supply Ability 45 set per month
Product Details
Advantage 13 Years Experience:We Have Been In Making Machinery For 13 Years. Produce Speed 40-60bags/min
Machine Type Multi-function Packing Machine Machine Size 7860mm×2860mm×2030mm
Machine Weight 7000Kg After-sales Service Engineers Available To Service Machinery Overseas
High Light

non woven mask machine

,

mask manufacturing machine

Leave a Message
Product Description

High quality Fully automatic Facial Face Mask Making Machine with 380V 50/60Hz



Product Application

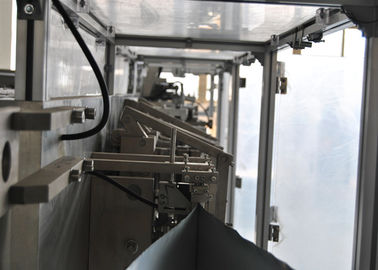

High quality Fully automatic Facial Face Mask Making Machine with 35kw power is designed and manufactured by our company.This line includes two machines. the mask forming folding machine and packing machine.it's suitable for making and packing all kinds of tissue mask and biocellulose mask with the functions of non- woven mask forming, folding, bag making, feeding mask, wetting, bag sealing and Output.



Feature

1. Cut the mask from the roll material

2. Face mask shape: Customer-design(the Die-cut shape according to customer request)

3. Made the pouch/bag from the film roll material or pre-made bags given directly

4. Put the mask into the bag.

5. Fill bag with mask by liquid

6. Seal bag and emboss the lot number.

7. Leak test
stain detection,UV sterilization,leak tesk,weight checker,stacking& cartoning packing,heat shrink packing/bundling is for extra option!



8. Mask material: 30-80g/m2 spun-lace non-woven + hot rolled non-woven/pearl film



If any interesting,welcome to contact with Ms Niki Yang,+8615700094223(whatsApp) or wechat:+8615044133150





Main Technical Parameter:

Product size Length:80mm~200mm × Width:80mm-180mm (L*W)
Package material CPP,PE,BOPP CPP film,PE film,BOPP film
Mask material 40~80g/m2 Spun Non-woven/pearl film/hot roll non-woven/silk

Inner diameter and max

Outter diameter

Inner diameter 75mm ; max outter diamater 1000mm
Unfolded Mask size Length 230~260mm width 230~260mm
Packing speed 50-65 bags/min
Pump and add liquid Essence Fluid 3-30ml; precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)
Noise <80 dB(A)
Voltage Three –phase four wire 380V 50/60Hz
Supply power About 9.0Kw
Air consumption ≥0.8m³/min(w-1.0/10 air compression machine is needed)
Air supply 0.6-1.0 MPa
Machine weight 7000Kg
Machine size 7860mm×2860mm×2030mm

Optional 1: The alarm of material running out (Increase sensor switch of the material roll spunlace non-woven,when the Diameter is close to run out (the machine will alarm),when it’s run out the machine need to stop running;)

Detection 2: Detect the connect of non-woven (detect the connect of the non-woven and excluding this part face mask,note the connect tape should be red color)

Optional 1: Stain detection of the Non-woven (detect the grease ,stains and something dirty on the face mask , and excluding the dirty face mask in the machine)

Notice:the face mask folding way, need to discuss by us or following our folding way.



FAQ

1. What's your Advantages?

-- 14 years experience:We have been in making machinery for 14 years.
-- Customers all over the world
-- Certificate: CE certificate
-- After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
